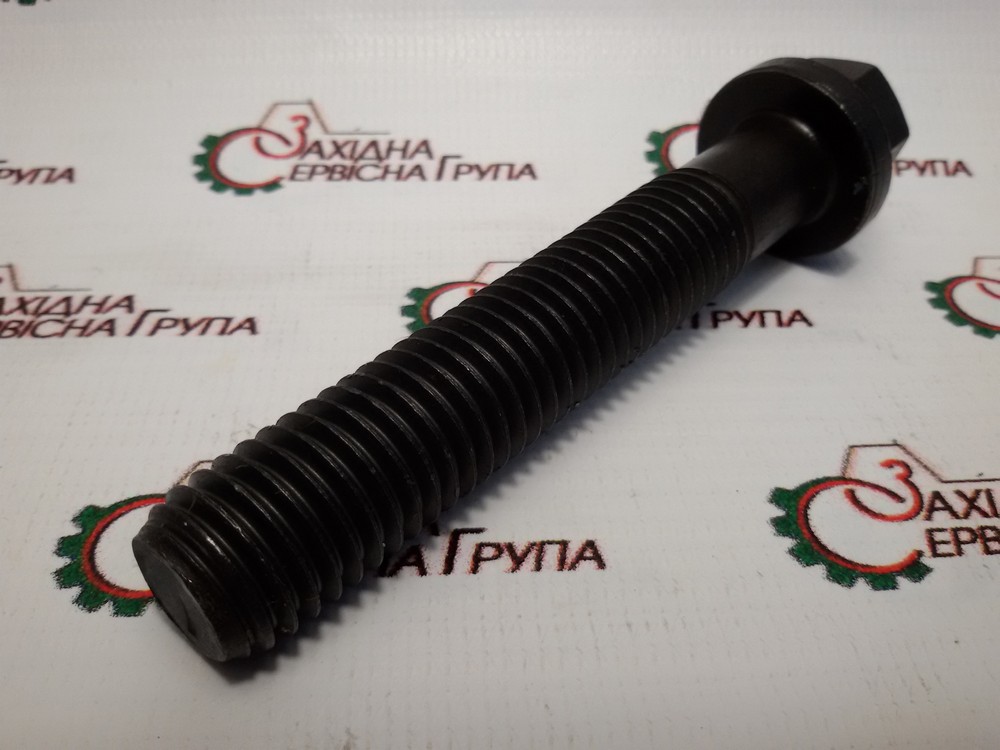

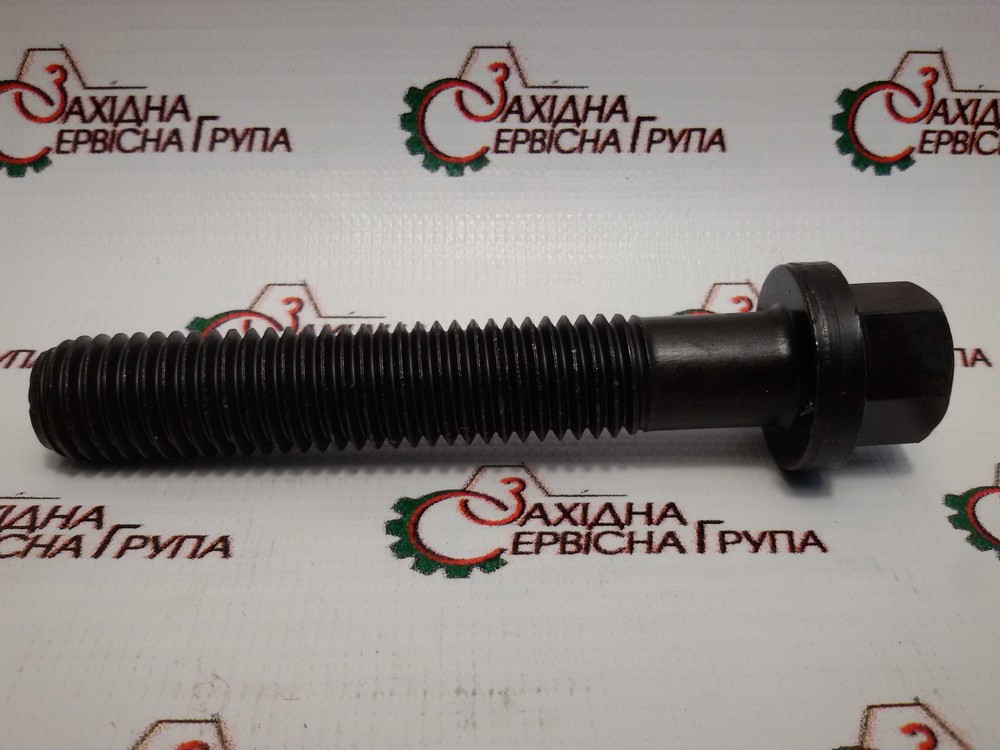

Болт кріплення ГБЦ 80мм Cummins 6C 8.3, 3917729, J917729
Болт кріплення ГБЦ 80мм
Застосування: двигун Cummins 6C 8.3, CASE 7200/8900/MX/1600/2100/2300
Оригінальний номер: 3917729
Номер CNH: J917729
Виробник Cummins made in USA
Screw, Hex Flange Head Cap
| 1 | 3928291 | Head, Cylinder | 1 | |
| 2 | 3920443 | Plug, Expansion | 1 | |
| 3 | 3032693 | Plug, Expansion | 5 | 1.198 in. |
| 4 | 3922072 | Plug, Expansion | 2 | |
| 5 | 3923564 | Guide, Valve Stem | 12 | |
| 6 | 3927256 | Insert, Valve | 6 | Intake |
| 7 | 3933088 | Insert, Valve | 6 | Exhaust |
| 8 | 3008464 | Plug, Pipe | 2 | 1/16 NPT |
| 9 | 3008466 | Plug, Pipe | 2 | 1/4 NPT |
| 10 | 3008468 | Plug, Pipe | 1 | 1/2 NPT |
| 11 | 3927642 | Seal, Valve Stem | 12 | |
| 3802812 | Valve, Intake | 6 | ||
| 12 | 3927254 | Valve, Intake | 6 | Sold In Higher Level Assy/Kit |
| 13 | 3901177 | Collet, Valve | 12 | |
| 3802813 | Valve, Exhaust | 6 | ||
| 14 | 3927255 | Valve, Exhaust | 12 | Sold In Higher Level Assy/Kit |
| 13 | 3901177 | Collet, Valve | 12 | |
| 15 | 3902425 | Washer, Sealing | 4 | M22 |
| 16 | 3924148 | Plug, Threaded | 4 | M22 |
| 17 | 3906412 | Spring, Valve | 6 | Standard |
| 17 | 3906412 | Spring, Valve | 6 | Standard |
| 18 | 3912976 | Retainer, Valve Spring | 12 | |
| 19 | 3919038 | Seal, Valve Stem | 6 | |
| 20 | 3912900 | Plug, Expansion | 1 | |
| 21 | 5529516,
3938267, 3935585 |
Gasket, Cylinder Head | 1 | |
| 22 | 3917729 | Screw, Hex Flange Head Cap | 12 | M14 x 2.00 x 80 |
| 23 | 3917728 | Screw, Hex Flange Head Cap | 14 | M14 x 2.00 x 160 |
| $SERVICE PARTS | ||||
| 3935586,
3928180 |
Gasket, Cylinder Head | 1 | 0.25 mm oversize thickness | |
| 3928181 | Gasket, Cylinder Head | 1 | 0.50 mm oversize thickness |
