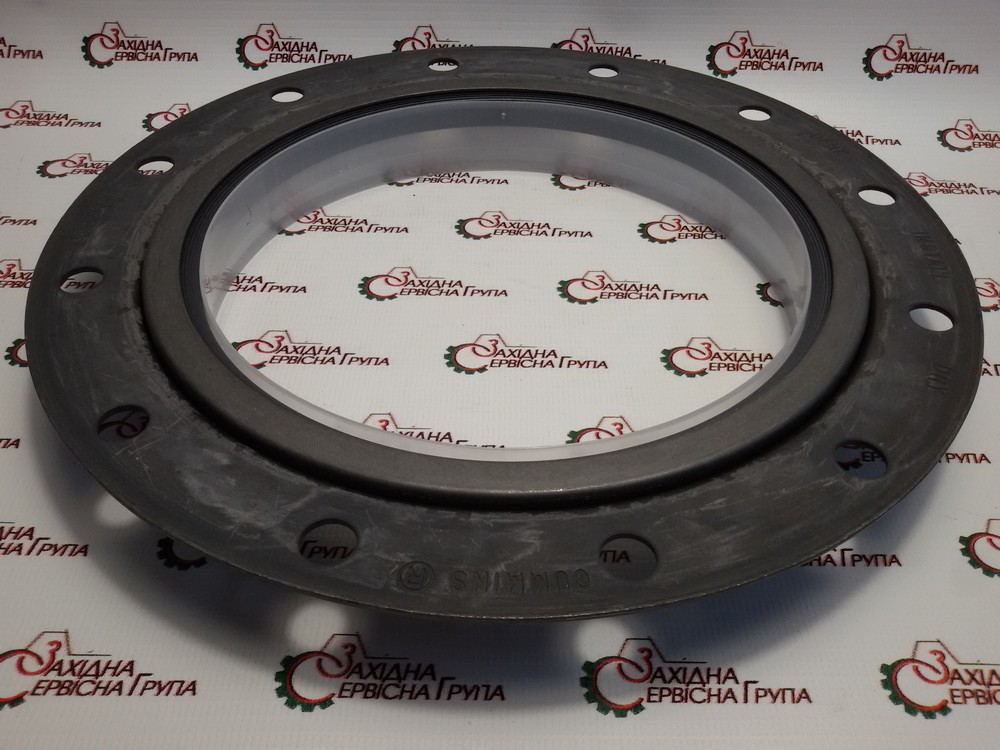

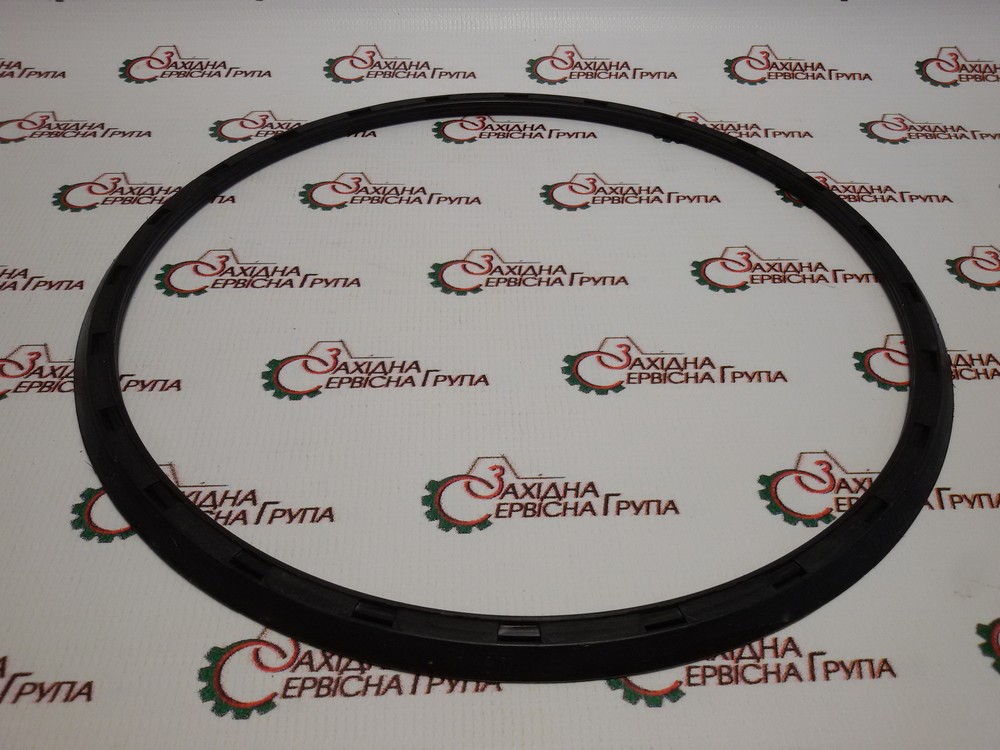

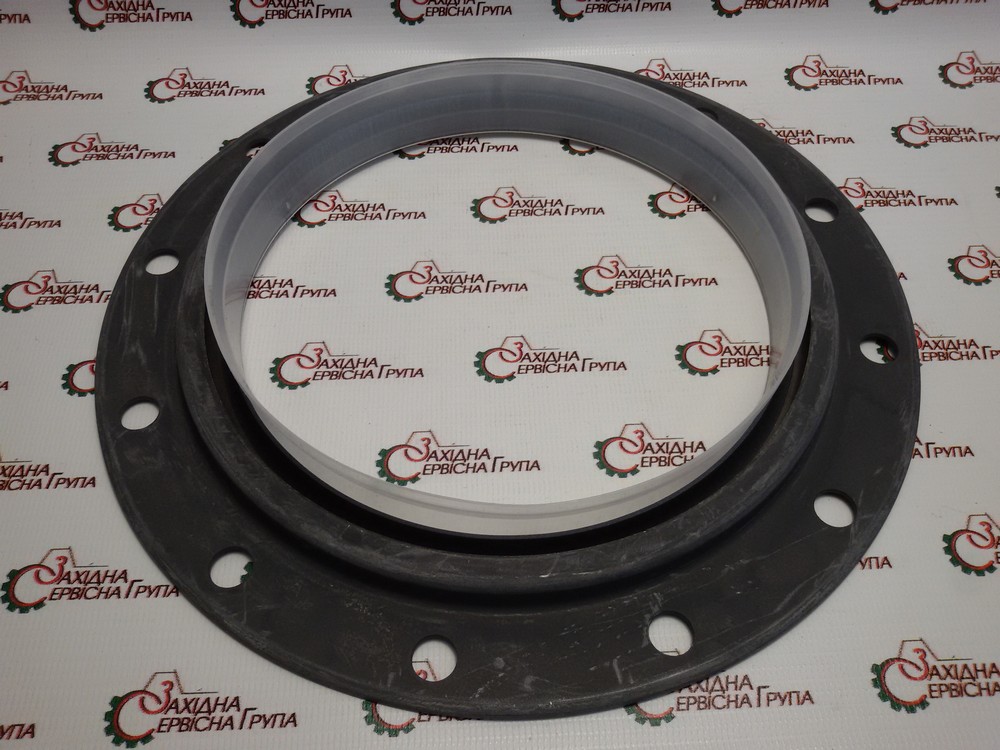

Cальник колінчастого вала задній Cummins L10, M11, 4089544, 3821388, 3883620, 3883774

Ущільнення колінвала заднє

Застосування: двигун Cummins L10, M11

Оригінальний номер: 4089544, 3821388, 3883620, 3883774

Виробник Cummins made in USA

Rear Crank Seal Kit

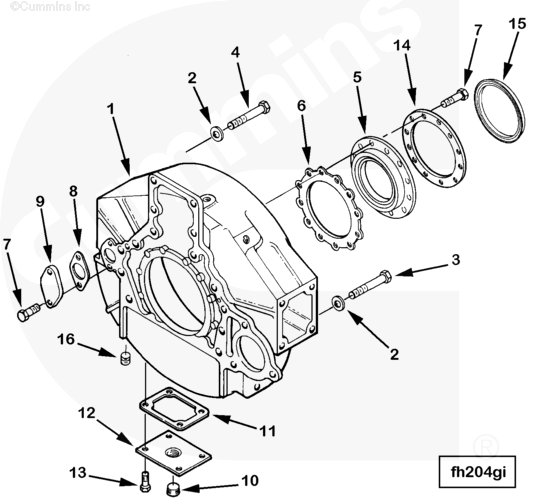

Ref No	Part Number	Part Description	Required	Remarks
	FH2105-21	Flywheel Housing
				Flywheel Housing
				Flywheel Housing SAE Size or
				Type: 1
				Flywhee
				Aluminum
				Mount Type: High and
				Low Vertical Pads
				Starting Motor Mounting
				Screws: Metric (mm)
				Starter Center Distance:
				10.85
				Clutch Type Provision: Dry
				Tachometer Sensor Mounting
				Hole Count: Three
				Tachometer Sensor Mounting
				Hole Nomenclature: 3/4 – 16
				Tachometer Sensor Hole
				Location: #2 (RS) #3 (ls) #4
				(ls)
				Engine Position: Vertical
				Standard
				Transmission Mounting Hole
				Nomenclature: Metric
1	3417501	Flywheel Housing	1
2	127316	Plain Washer	14	5/8 inch
3	3022148	Hexagon Head Cap Screw	12	M16 x 2.00 x 55
4	3018006	Hexagon Head Cap Screw	2	M16 x 2.00 x 45
	3803354	Oil Seal Kit	1
5	3883774	Oil Seal	1	Serviced as 4089544.
6	3883659	Carrier Gasket	1
7	3025802	Hexagon Head Cap Screw	2	M8 x 1.25 x 20
8	3026134	Cover Plate Gasket	1
9	3026135	Access Hole Cover	1
10	3008469	Pipe Plug	1	3/4 NPT
11	182459	Water Header Cover Gasket	1
12	3161671	Cover Plate	1
13	3335044	Hexagon Head Cap Screw	4	M10 x 1.50 x 25.
14				Item not in this version.
15	3161025	Dust Seal	1
16	3013786	Pipe Plug	1	3/8 NPT
	3063779	Threaded Plug	3	3/4 – 16 UNF Item not shown.
	3821783	Captive Washer Cap Screw	12	M8 x 1.25 x 20 Item not shown
	4089544	Rear Crank Seal Kit	1
	3161025	Dust Seal	1
	3821783	Captive Washer Cap Screw	12	M8 X 1.25 X 20.
	3883774	Oil Seal	1	Serviced as 4089544.
	4022497	Carrier Gasket	1
