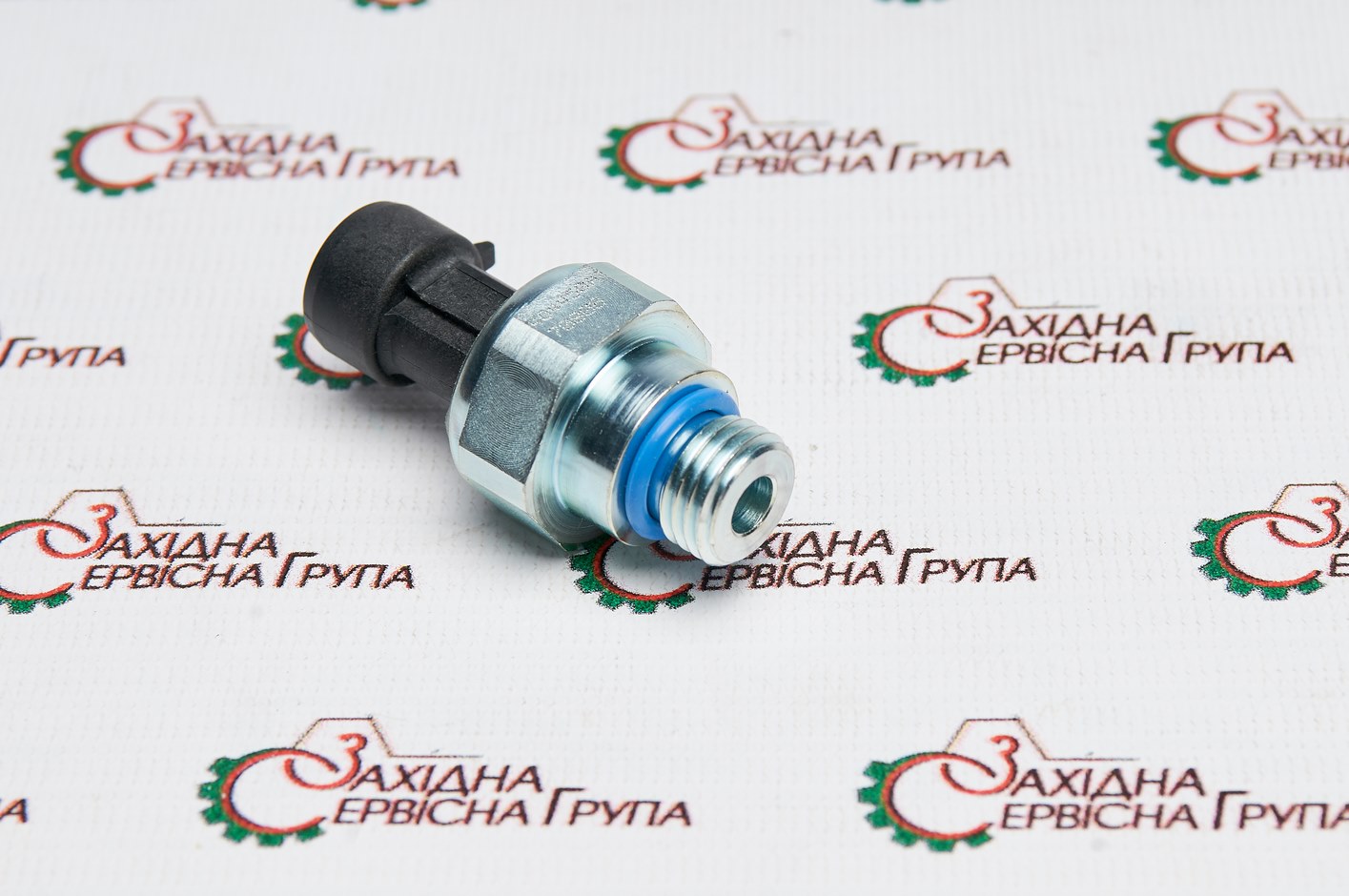

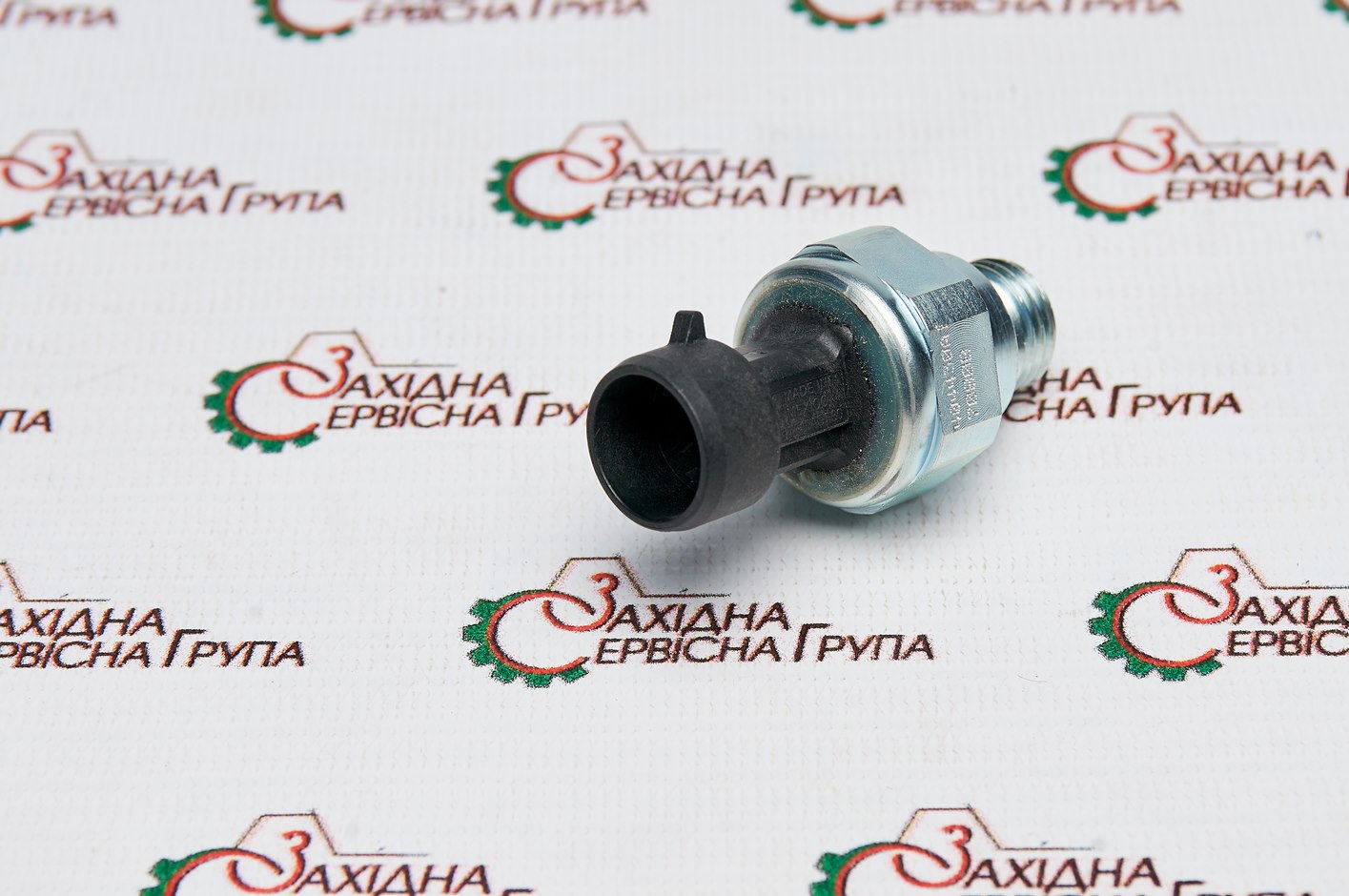

Датчик тиску трансмісії CNH (CASE/NEW HOLAND), 404450A1, 231751A1, 87775718
Датчик тиску системи трансмісії
Застосування: трактор CASE MX200-270, STX/STEIGER 450-535, NEW HOLLAND TJ375 – TJ530 / T9010 – T9060
Оригінальний номер: 404450A1, 231751A1, 87775718
Виробник: CNH
SENSOR Pressure

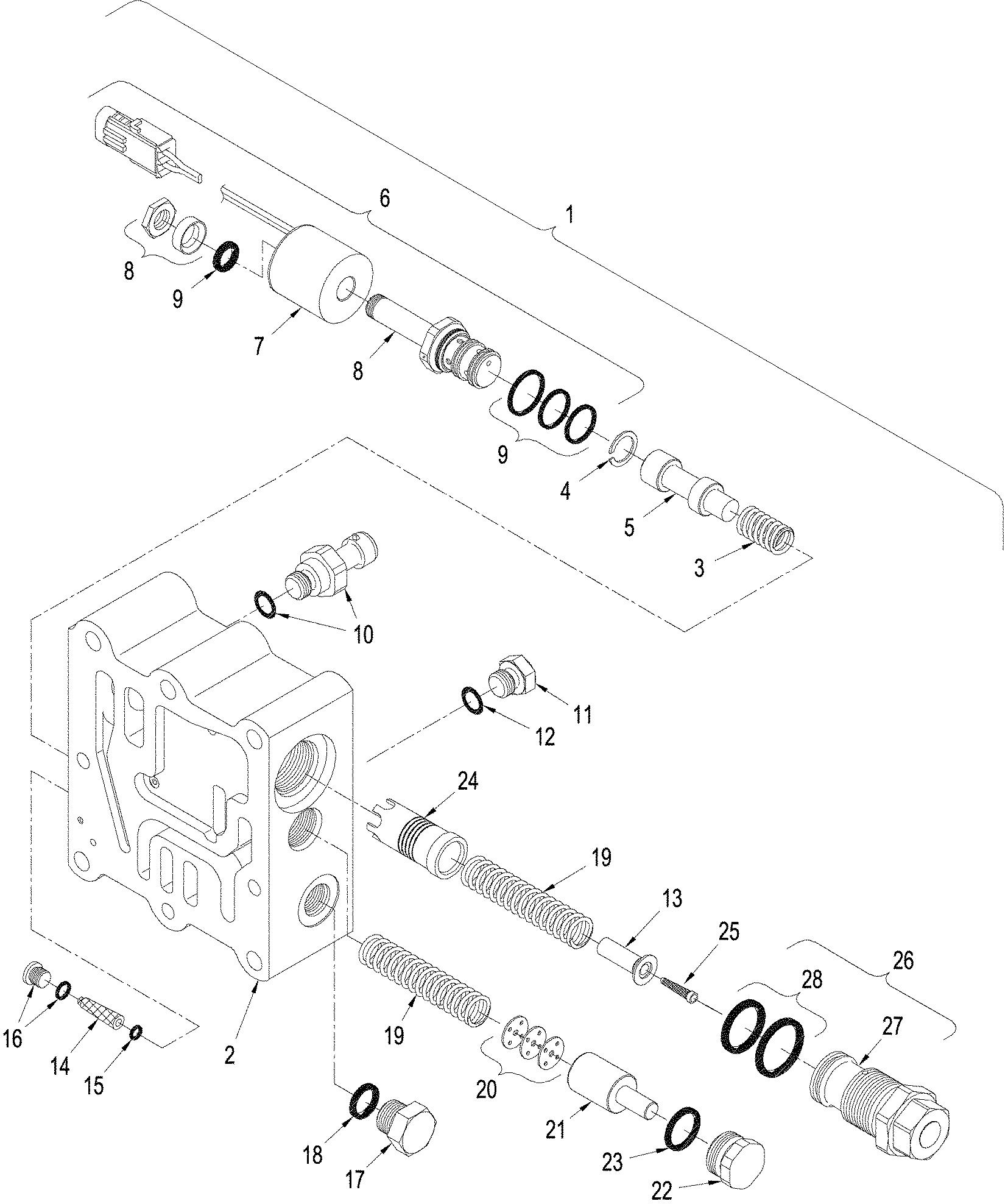

| 1 | 1 | 87350388 | VALVE Regulator, Inc. 2 – 26 |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY Body, Valve |
| 3 | 1 | 370596A1 | SPRING |
| 4 | 1 | 428679A1 | RING SNAP |
| 5 | 1 | 370597A1 | SPOOL M/C Lube |
| 6 | 1 | 371737A1 | SOLENOID VALVE Three Way, Inc. 7 – 9 |
| 7 | 2 | 371739A1 | COIL Three Way Solenoid |
| 8 | 1 | 370600A1 | SOLENOID VALVE Pilot Assy. |
| 9 | 1 | 371738A1 | KIT O-Ring |
| 10 | 1 | 404450A1 | SENSOR Pressure |
| 11 | 1 | 220064A1 | PLUG M14 x 1.5, ORB, Incl. 12 |
| 12 | 1 | 637-63113 | O-RING 11.3mm ID x 2.2mm Width |
| 13 | 1 | 87350417 | FILTER COVER |
| 14 | 1 | 87409404 | FILTER Conical |
| 15 | 1 | 428676A1 | O-RING |
| 16 | 1 | 428678A1 | PLUG Inc. O-Ring |
| 17 | 1 | 220066A1 | PLUG M18 x 1.5, ORB, Incl. 18 |
| 18 | 1 | 637-63153 | O-RING 15.3mm ID x 2.2mm Width |
| 19 | 2 | 398443A1 | SPRING |
| 20 | AR | 87562274 | SHIM , ASN Z6F105039 |
| 20 | AR | 398445A1 | SHIM , BSN Z6F105038 |
| 21 | 1 | 398444A1 | VALVE Spool |
| 22 | 1 | 87431407 | PLUG Inc. 23 |
| 23 | 1 | 87431408 | O-RING |
| 24 | 1 | 87350419 | SPOOL Main Pressure |
| 25 | 1 | 87362229 | FILTER SCREEN |
| 26 | 1 | 87350395 | PILOT VALVE Assy., Inc. 27 – 28 |
| 27 | 1 | NSS | NOT SERVICED SEPARATELY Valve, Pilot |
| 87350388C | CORE-HYD VALVE Return Number, For N.A. Only | ||
| 1 | 87350388R | REMAN-HYD VALVE Steiger 380, Steiger 430, Steiger 480, Steiger 530, All ASN Z6F105001, STX380, STX430, STX480, STX530, All BTW Z6F100023 & Z6F108001, N.A. Only | |
| 28 | 1 | 87350407 | KIT O-Ring |
