Ціни на запчастини не вказані на сайті. Для уточнення ціни сформуйте та відправте замовлення або зателефонуйте менеджеру.

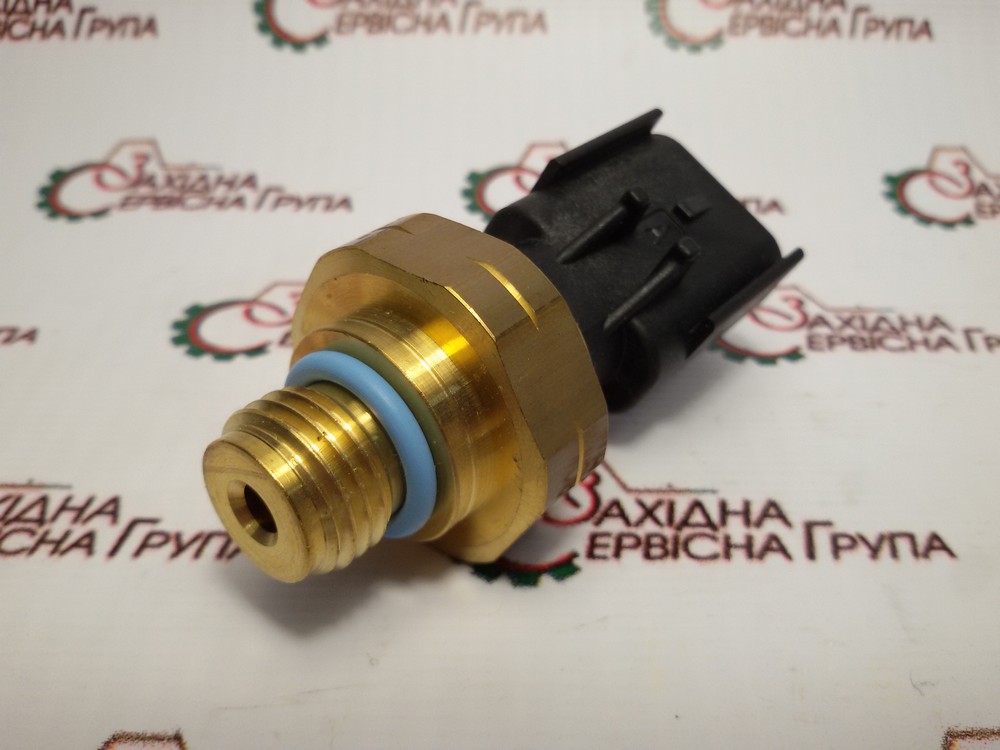

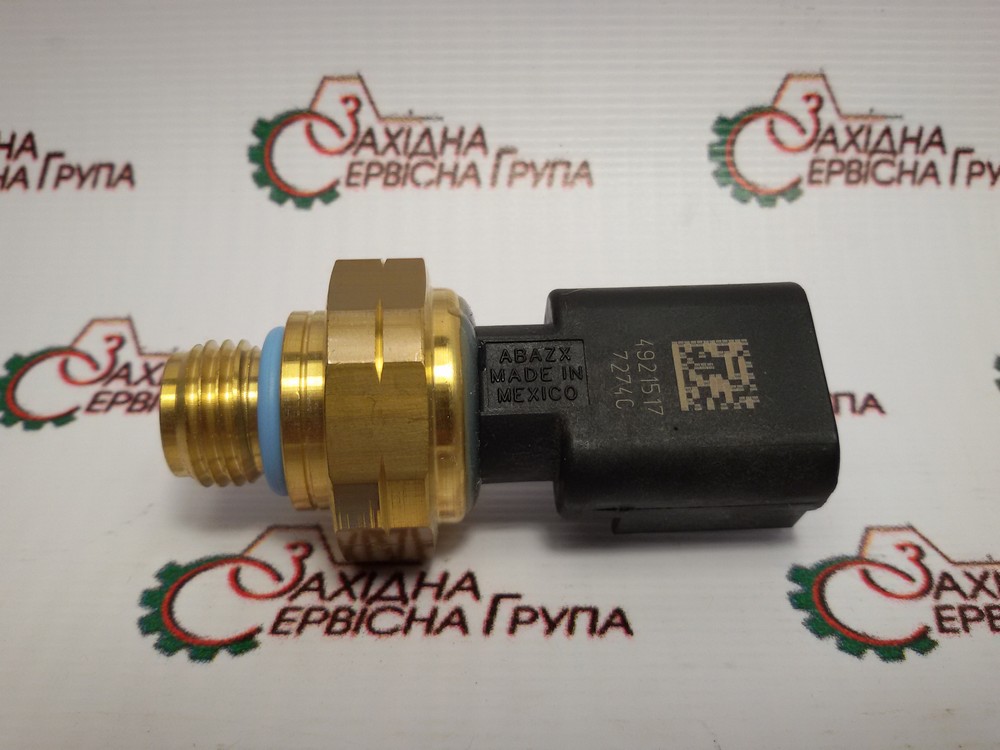

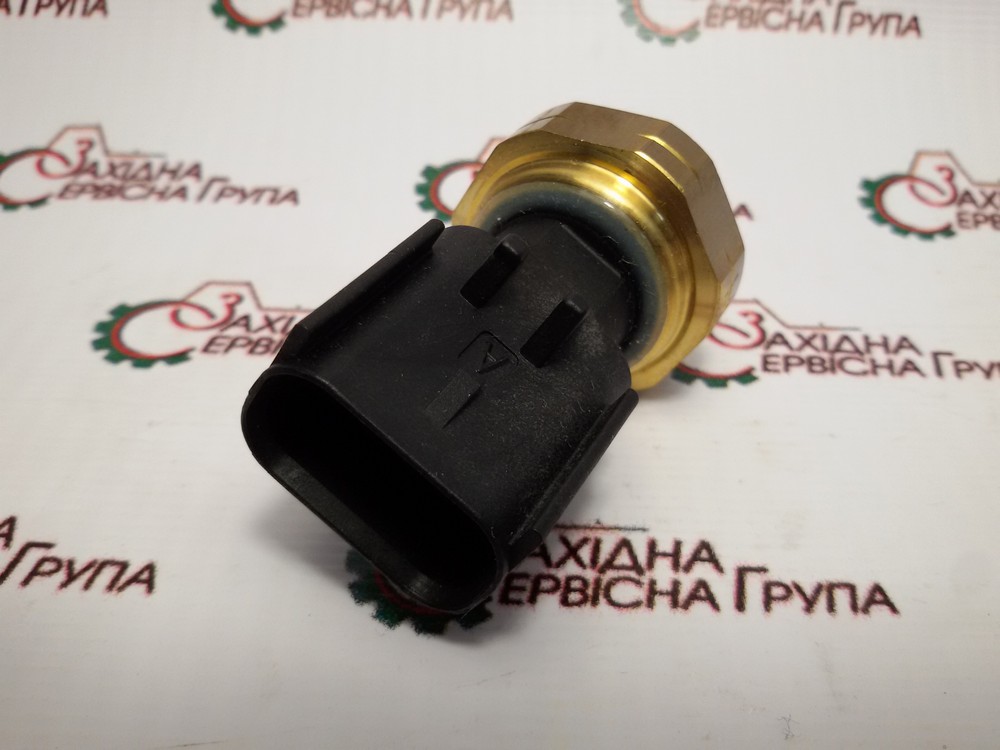

Датчик тиску масла Cummins ISB, ISLe, QSL9, 4921517, 4921744, 4087991.

Датчик тиску масла

Застосування: двигун Cummins ISB, ISL, QSL9, CASE Magmum, New Holland T8000, HYUNDAI HL770/R360, BUHLER VERSATILE 320/370

Оригінальний номер: 4921517, 4921744, 4087991

Виробник Cummins made in USA.

Sensor, Pressure





Ref No Part Number Part Name Required Remarks
PH9153-03 Engine Control Module MR – MODULE, ENGINE CONTROL
Comment: P1I
ECM Version: CM850
Module Location (mm): 6.8
Ambient Air Pressure Sensor
Included: No
Intake Manifold Temperature
Sensor Manufacturer: Hi Stat
1 4946443 Dataplate 1
2 3682941 Screw, Studded Hexagon Cap
3 3900589 Nut, Hexagon Flange 1 M8 x 1.25
4 3900630 Screw, Hex Flange Head Cap 1 M8 x 1.25 x 20
5 3901445 Screw, Hex Flange Head Cap 4 M8 x 1.25 x 45
6 3906216 Nut, Hexagon Flange 5 M6 x 1.00
7 3913638 Screw, Hex Flange Head Cap 1 M6 x 1.00 x 16
8 3944816 Screw, Studded Flange Head M8 x 1.25 x 50
9 3955219 Isolator, Vibration 4
10 3955220 Isolator, Vibration 4
11 3970204 Cooler, Electronic Control 1
12 3975797 Harness, Wiring 1
13 3977357 Wire, Ground 1
14 4019917 Tag, Instruction 1
4088832 Sensor, Temperature 1 Coolant or Intake Manifold
15 4088833 Sensor, Temperature 1 Coolant or Intake Manifold
16 4921574 Seal, O Ring 1
17 4903016 Sensor, Fluid Level 1 Coolant
18 4921517 Sensor, Pressure 1 Oil
4921684 Sensor, Position 1 Camshaft
19 4921684 Sensor, Position 1 Camshaft
20 4928599 Seal, O Ring 1
4921686 Sensor, Position 1 Crankshaft
4921686 Sensor, Position 1 Crankshaft
20 4928599 Seal, O Ring 1
21 4921687 Sensor, Position 1
22 4921797 Module, Electronic Control 1 Purchase as 4921776
23 4928593 Sensor, Pressure 1 Intake manifold.
24 4929301 Module, Etr Interface 1
25 4929303 Tag, Instruction 1
26 4954905 Sensor, Temperature 1 Coolant or Oil or Fuel
