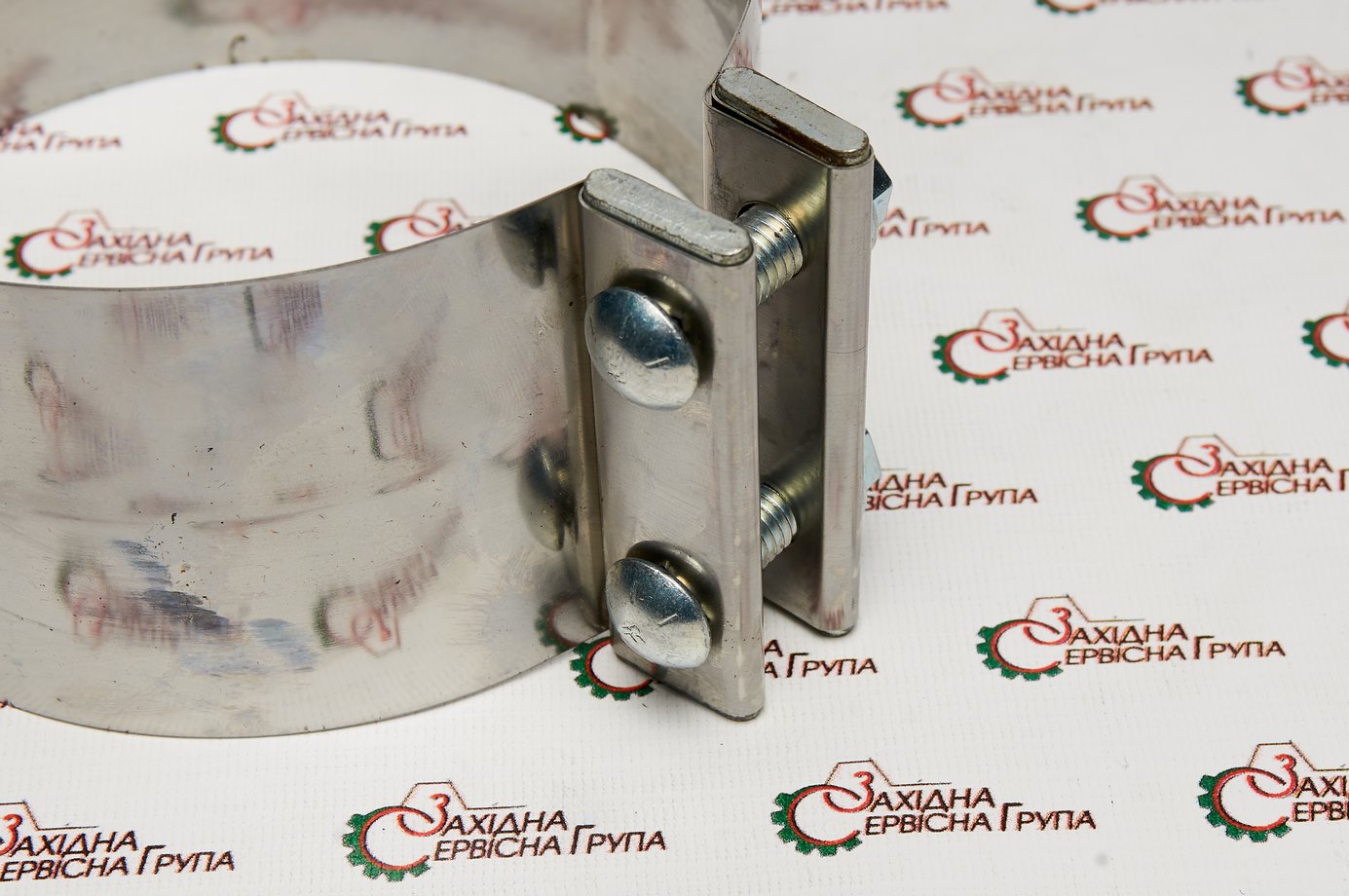

Фіксатор випускної системи
Застосування: трактор CASE STX/STEIGER 450-535, NEW HOLLAND TJ375 – TJ530 / T9010 – T9060
Оригінальний номер: 357686A1
Виробник: CNH

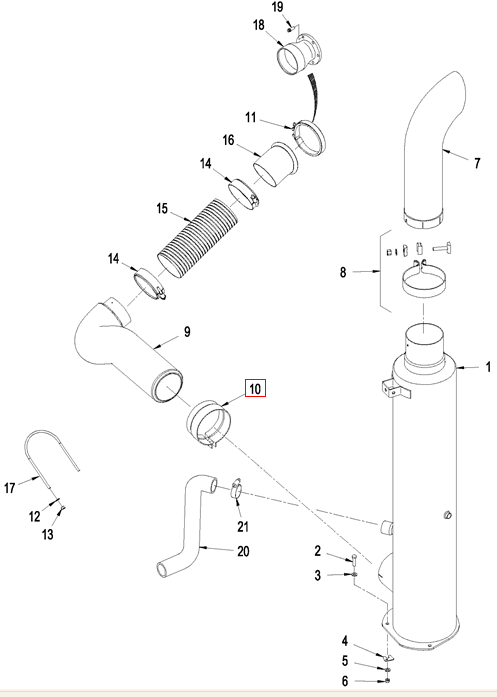

ASSEMBLY
| 1 | 1 | 87614022 | MUFFLER Teir 3, Non-Spark Arresting, 12″ – Requiers items 22 thru 27 |
| 1 | 1 | 87443197 | MUFFLER with Spark Arrestor, 10″ |
| 2 | 4 | 827-10040 | BOLT Hex, M10 x 40, 10.9, Full Thd |
| 3 | 4 | 896-11010 | WASHER M10 x 21.5 x 2.5, HT |
| 4 | AR | 404824A1 | SHIM Muffler Mounting |
| 5 | 2 | 896-15010 | WASHER M10 x 24.5 x 3, HT |
| 6 | 2 | 832-46410 | LOCK NUT M10 x 1.5, Cl 8 |
| 7 | 1 | 87430635 | ELBOW Muffler Exhaust, Inc. 8 |
| 8 | 1 | 87430634 | CLAMP Muffler |
| 9 | 1 | 87618142 | EXHAUST SYSTEM PIPE Exhaust, Doublewall |
| 10 | 1 | 357686A1 | ASSEMBLY Exhaust, 6″ |
| 11 | 1 | 31-1316 | MOUNTING CLIP , STX530, STEIGER 530 |
| 12 | 2 | 495-11034 | WASHER 5/16″, SAE |
| 13 | 2 | 231-1445 | LOCK NUT 5/16″-18, GB |
| 14 | 2 | 87406903 | COLLAR CLAMP |
| 15 | 1 | 87376393 | HYD. TUBE 5.03 mm ID x 5.27 mm OD x 13 mm L, Flexible |
| 16 | 1 | 87319225 | FLANGE Flanged |
| 17 | 1 | 44-13T1 | BOLT “U” Exhaust Intake Tube |
| 18 | 1 | 87327027 | ELBOW Exhaust |
| 19 | 6 | 868-10025 | 12 PT SCREW 12 Pt Hd, M10 x 25, 12.9, STX480, STEIGER 480 |
| 20 | 1 | 87304242 | HOSE 50.80 mm ID x 374.70 mm, Aspirator |
| 21 | 1 | 214-3240 | HOSE CLAMP 1.75/2.625 HD Worm, W/liner |
| 22 | 1 | 87644727 | CLAMP Air Intake (Not Shown) |
| 23 | 1 | 87630063 | HOSE Formed Rubber (Not Shown) |
| 24 | 1 | 87618142 | EXHAUST SYSTEM PIPE Double wall – Quadtrac Only (Not Shown) |
| 25 | 1 | 87629133 | SHIELD Debries (Not Shown) |
| 26 | 1 | 87618507 | PLATE Mounting, Quadtrac Only (Not Shown) |
| 27 | 1 | 87618178 | SUPPORT Wheel Mounting Plate – TJ & STX Models (Not Shown) |
