Ціна

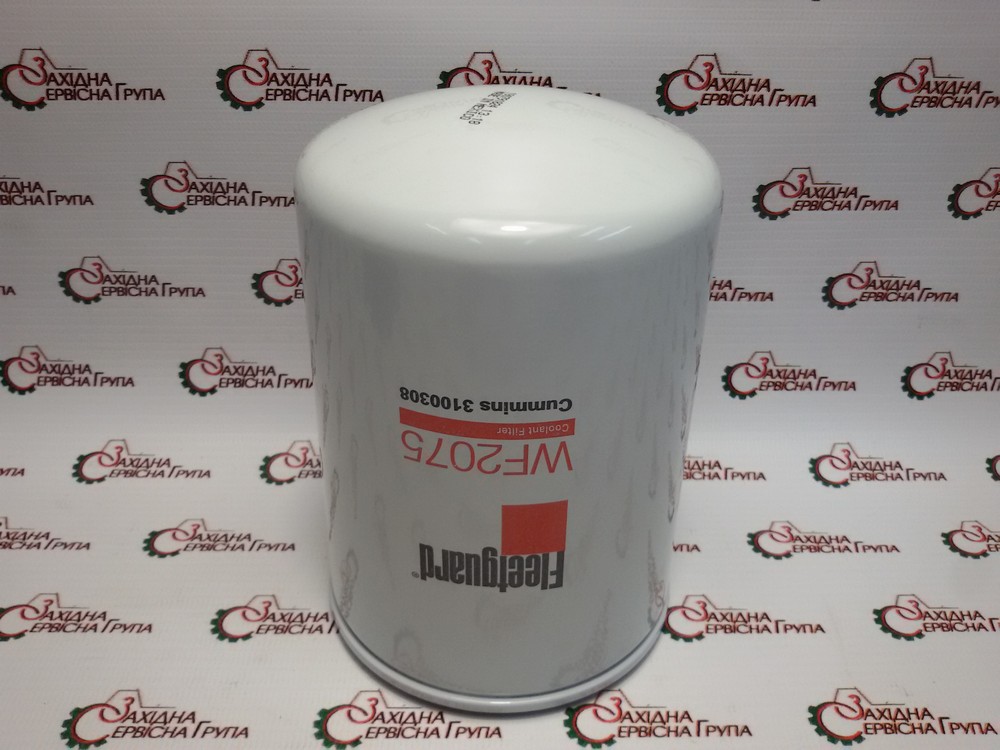

Фільтр охолоджуючої рідини
Застосування: двигун Cummins M11, QSM11, BUHLER VERSATILE 2375/2400, HYUNDAI ROBEX 500LC-7
Номер Cummins: 3100308
Номер Fleetguard: WF2075
Виробник Fleetguard
Corrosion Resistor

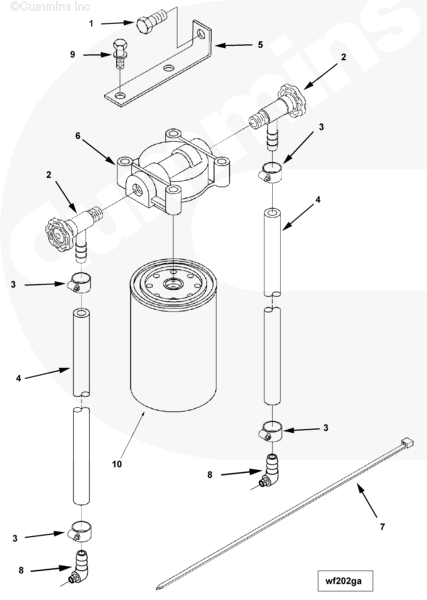

| Ref No | Part Number | Part Description | Required | Remarks | |
|
Corrosion Resistor
|
|||||
|
Corrosion Resistor
|
|||||
|
Supplier: Cummins
|
|||||
|
Corrosion Resistor Loc:
|
|||||
|
Remote (Off Engine)
|
|||||
|
Element Type: Spin-On
|
|||||
|
Element Quantity: Single
|
|||||
|
Inhibitor Type: DCA4 Plus
|
|||||
|
DCA Units: 15
|
|||||
|
For Use with Cooling Systems
|
|||||
|
When the OEM DOES NOT USE
|
|||||
|
WITH a Factory Fill Coolant
|
|||||
|
that Contains a Precharge
|
|||||
|
Dose of SCA.
|
|||||
|
Cooling Capacity Min Value:
|
|||||
|
18.92 L (5 Gal)
|
|||||
|
Cooling Capacity Max Value:
|
|||||
|
37.85 L (10 Gal)
|
|||||
|
Crn Rstr Water Supply: Water
|
|||||
|
Header Plate
|
|||||
|
Crn Rstr Water Return: Water
|
|||||
|
Header Plate
|
|||||
|
Water Return Route: Routed
|
|||||
|
High above Gear Cover
|
|||||
|
Water Return Plumbing
|
|||||
|
Provision: 90 Degree Elbows
|
|||||
|
Decal Provided: Fleetguard
|
|||||
|
Crn Rstr Bracket Supplier:
|
|||||
|
Customer All hardware
|
|||||
|
All Hardware Supplied in Kit
|
|||||
|
Shutoff Valve Included: Male
|
|||||
|
Push on Connection
|
|||||
|
Corrosion Resistor is
|
|||||
|
assembled with 56″ long
|
|||||
|
hoses. Filter Head is
|
|||||
|
attached to temporary
|
|||||
|
shipping bracket which is
|
|||||
|
attached to block hole #550,
|
|||||
|
hoses looped and secured with
|
|||||
|
cable ties. If right hand
|
|||||
|
starter is supplied, bracket
|
|||||
|
is attached to block hole
|
|||||
|
#315, hoses looped over
|
|||||
|
Flywheel Housing and secured
|
|||||
|
with cable ties.
|
|||||
|
1
|
Hexagon Head Cap Screw
|
2
|
3/8 – 16 X 1 in.
|
||
|
2
|
Shut-Off Valve
|
2
|
|||
|
3
|
Hose Clamp
|
4
|
3/8 – 7/8 in.
|
||
|
4
|
Plain Hose
|
2
|
|||
|
5
|
Throttle Control Bracket
|
1
|
|||
|
6
|
Corrosion Resistor Head
|
1
|
|||
|
7
|
Wire Tie Clamp
|
2
|
|||
|
8
|
Elbow Hose Coupling
|
2
|
|||
|
9
|
Captive Washer Cap Screw
|
2
|
M10 x 1.50 x 25
|
||
|
10
|
Corrosion Resistor
|
1
|
Buy from Cummins Filtration WF2075
|
