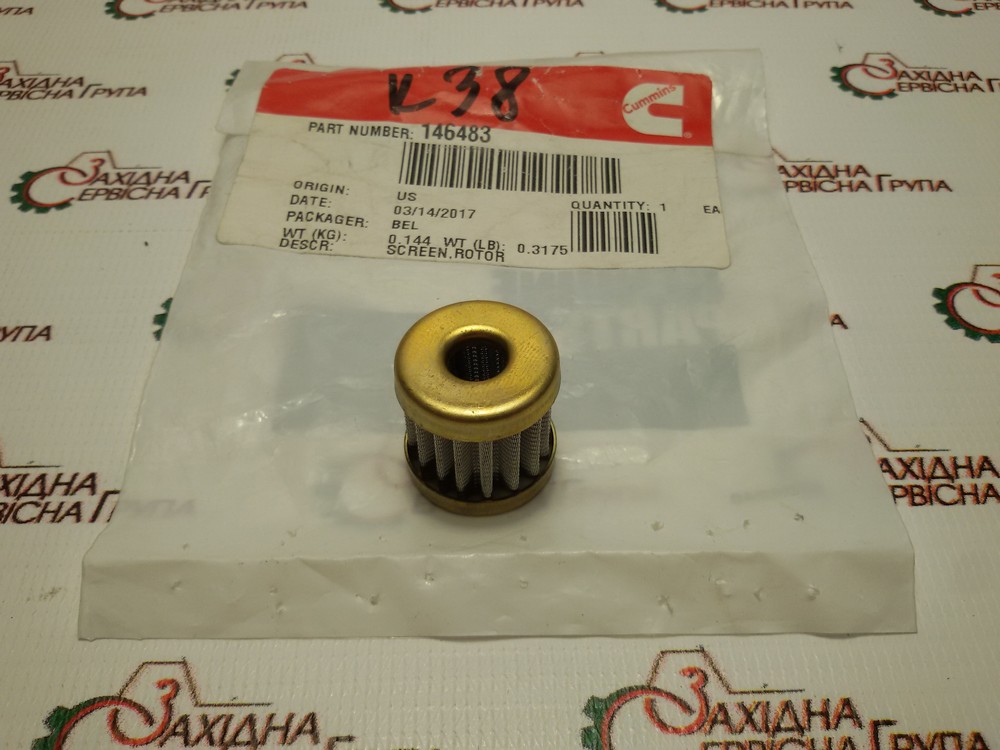

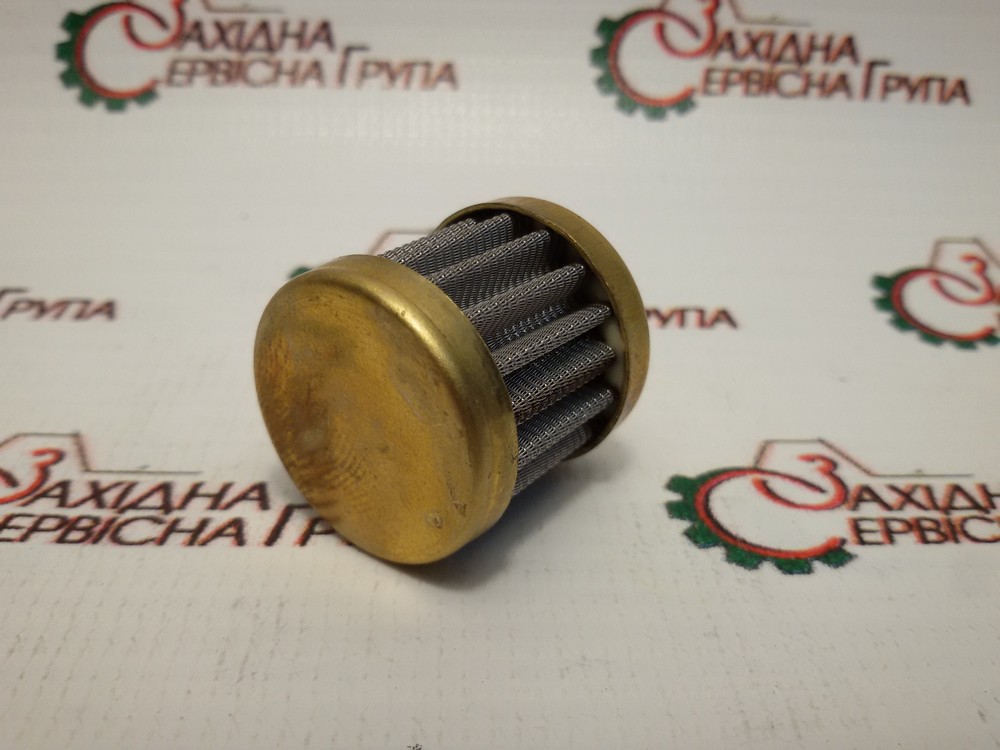

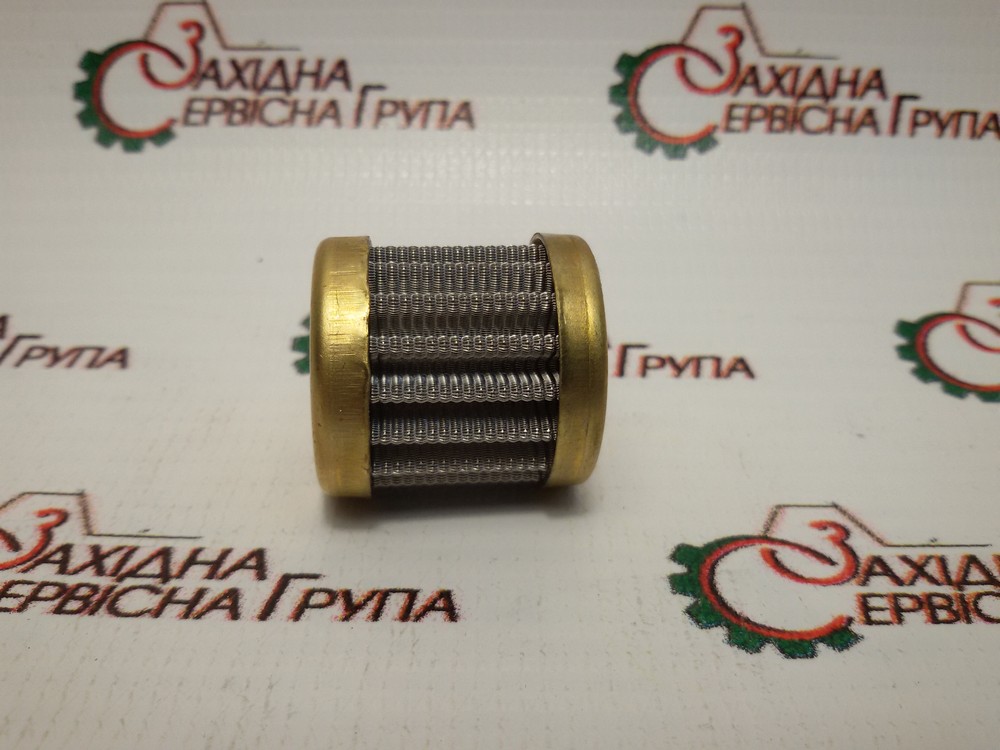

Фільтр сітчастий паливного насоса Cummins QSC, ISM11, QSM11, 146483.

Фільтр сітчастий паливного насоса

Застосування: двигун Cummins QSC8.3, ISM11, QSM11, CASE MX/2300, New Holland TG, BUHLER VERSATILE 2375/2400, HYUNDAI ROBEX 500LC-7

Оригінальний номер: 146483

Виробник Cummins made in USA.

Screen, Filter

Топливный насос высокого давления Cummins ISM QSM 11 3090942 3075340 3041800 3060492
1       100099 Seal, Rectangular Ring 1
2       139988 Seal, Rectangular Ring 1
3       153336 Body, Fuel Pump Damper 1
4       153338 Cover, Fuel Pump Damper 1
5       160514 Washer, Plain 1 1 11/16 in.
6       202897 Diaphragm,Fuel Pump Damper 1
7       3017051 Screw, Captive Washer Cap 2 1/4 – 20 X 1 1/8 in.
8 70704 Washer, Plain 2 1/4 in.
9 151900 Seal, Rectangular Ring 1
10 153346 Screw, Socket Head Cap 2 1/4 – 20 X 4 in.
11 181466 Washer, Lock 4 1/4 in.
3090942/3075340/3041800/3060492 Assembly, Fuel Pump 1
12       S 2286 Screw, Drive 2 3/16 in.
13       70700 Spring, Compression 1
14       100129 Screw, Socket Head Cap 4 1/4 – 20 x 3 inch
15       105375 Nameplate 1
16       129768 Spring, Valve 1
17       129839 Shield, Shutoff Valve 1
18       129888 Seal, Rectangular Ring 2
19       146483 Screen, Filter 1
20       196057 Disc, Valve 1
21       3014575 Cap, Fuel Pump Filter 1
22       3021123 Seal, O Ring 1
23       3033742 Plug, Threaded 1
24           3034412 Seal, O Ring 1
25       3034451 Housing, Actuator 1
26       3095355 Hub, Jaw Coupling 1
27       3042619 Nipple, Coupling 1
28           3037537 Seal, O Ring 1
29       3054608 Solenoid 1
30       3056009 Disc, Actuator 1
31       3056416 Plug, Threaded 4
32           3056415 Seal, O Ring 1
33       3065944 Screw, Captive Washer Cap 4 #10 – 24 X 1 Inch.
34       3068768 Ring, Retaining 1
      3095634 Pump, Gear Fuel 1
11           181466 Washer, Lock 2 1/4 in.
35           64816 A Dowel, Pin 2
36           110855 Gasket, Fuel Pump 1
          3019617 Gear & Shaft 1
37               119364 Gear, Fuel Pumping 1
38               175865 Shaft, Fuel Pump 1
39           3033719 Dowel, Ring 1
40           3033740 Valve, Check 1
41               3034412 Seal, O Ring 1
42           3085614 Spring, Compression 1
43           3085613 Plunger, Prs Regulator 1
44           3085615 Ring, Retaining 1
          3068889 Gear, Fuel Pump 1
45               3033714 Housing, Fuel Pump Gear 1
46               3033724 Bushing 4
47               3068770 Cover, Fuel Pump Gear 1
          3095635 Gear & Shaft 1
37               119364 Gear, Fuel Pumping 1
48               3095356 Shaft, Fuel Pump Drive 1
      3804657 Kit, Fuel Pump Support 1
49           128807 Ring, Retaining 1
50           3096077 Gasket, Fuel Pump 1
51           3074317 Spacer, Seal 1
52           3074316 Spacer, Seal 1
53           3090996 Support, Fuel Pump 1
          3803477 Kit, Oil Seal 1
54               3084713 Seal, Oil 1 Sold In Higher Level Assy/Kit
55               3071643 Seal, Oil 1
56       3037536 Plug, Threaded 1 9/16 – 18 UNF
57           3037537 Seal, O Ring 1
