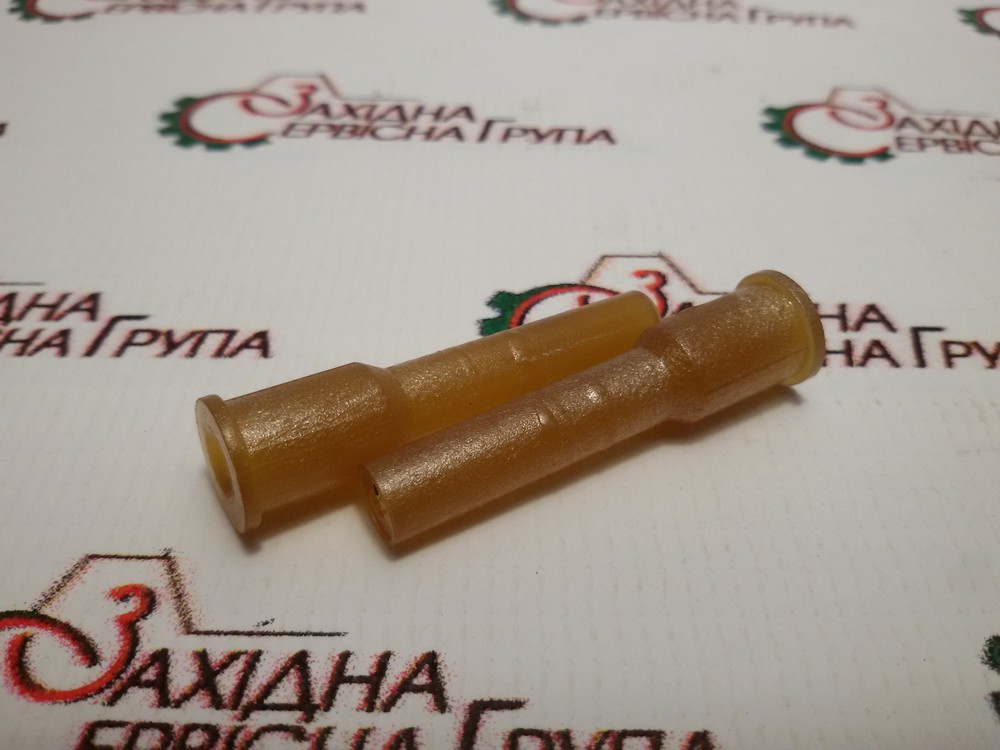

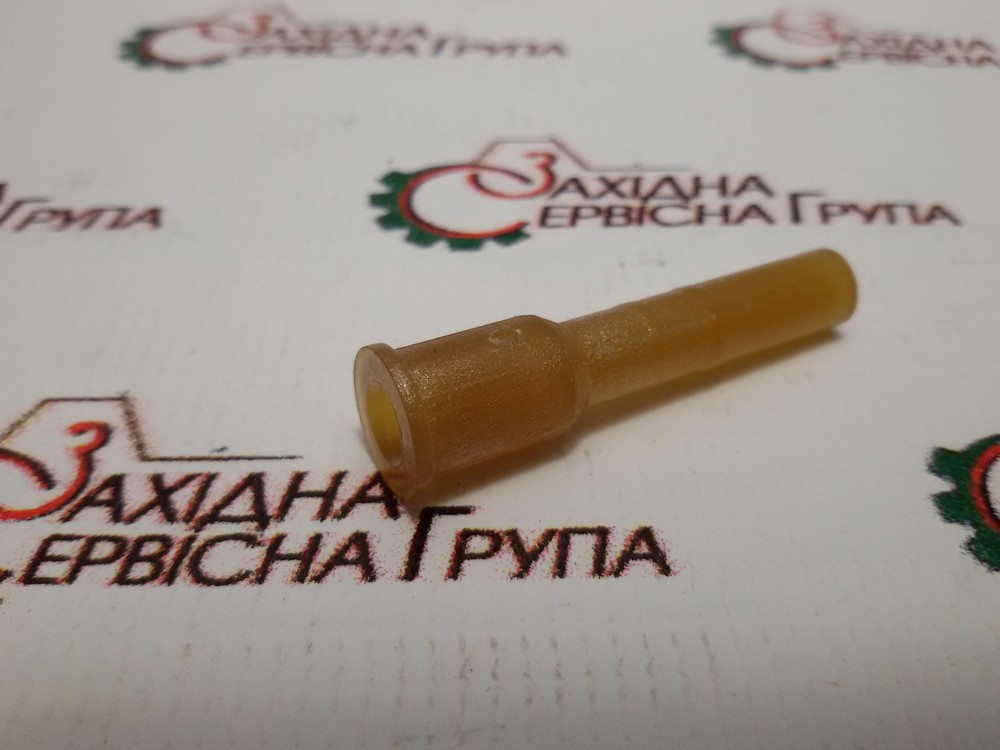

Форсунка охолодження поршня Cummins 6CT 8.3, QSC, 3928031 ,3919003, J928031, J919003

Форсунка охолодження поршня

Застосування: двигун Cummins 6CT 8.3, QSC, CASE 7200/8900/MX/1600/2100/2300, New Holland TG

Оригінальний номер: 3928031, 3919003

Номер CNH: J928031, J919003

Виробник Cummins made in USA

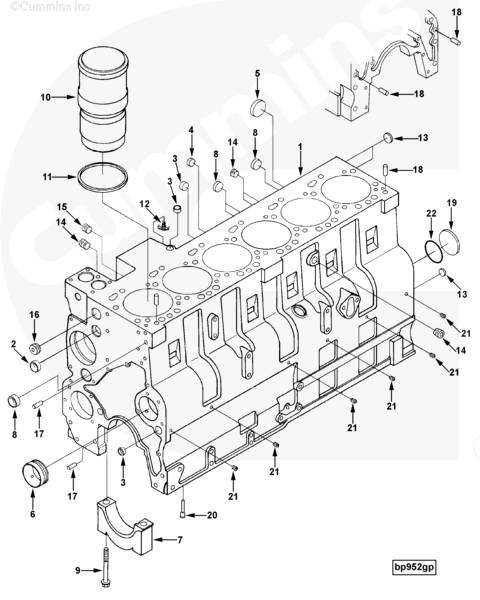

Nozzle, Piston Cooling

Ref No	Part Number	Part Description	Required	Remarks
	BP9897-02	Cylinder Block
				Engine: C Series
				Cylinders: 6
				Aspiration: Charge Air
				Cooled Turbocharged
				Turbo Exh. Outlet Location:
				HMFO HMRO
				Fuel Type: Diesel
				Restricted Fuel Pump
				Mfg/Model:
				Nippondenso EP9
				Brazil (CBL) may substitute
				3918986 crank  assembly for
				3917443 crank assembly.
				DEP may use 3629497 draincock
				in place of S923E draincock.
				DEP may use 3928914 in place
				of 3926798.
	3928965	Cylinder Block	1
1	3928963	Cylinder Block	1
2	143066	Expansion Plug	1
3	3004258	Expansion Plug	4
4	3812090	Expansion Plug	1
5	3900965	Expansion Plug	1	58.06 mm
6	3901685	Bushing	7
7	3917313	Main Bearing Cap	7
8	3905401	Expansion Plug	4
9	3916369	Hexagon Flange Head Cap Screw	14	M14 x 2.00 x 128
	3802367	Cylinder Block Hardware Kit	1
4	156075	Expansion Plug	2	1 3/16 in.
12	S 923 E	Draincock	1
13	3920706	Expansion Plug	1
14	3008468	Pipe Plug	5	1/2 NPT.
15	3008469	Pipe Plug	2	3/4 NPT
16	3008470	Pipe Plug	1	1 NPT.
17	3900257	Pin Dowel	2
18	3901846	Pin Dowel	4
19	3901969	Expansion Plug	1
20	3928031	Piston Cooling Nozzle	12
21	3906619	Pipe Plug	6	1/8 NPT.
22	3926048	O-Ring Seal	1
	3800328	Liner Kit	6
10	3944344	Cylinder Liner	1	Sold In Higher Level Assy/Kit
11	3907177	Rectangular Ring Seal	1
	3924445	Shim	A/R	0.25mm Oversize (0.010 in.)
	3924446	Shim	A/R	0.38mm Oversize (0.015 in.)
	3924447	Shim	A/R	0.51mm Oversize (0.020 in.)
	3924448	Shim	A/R	0.75mm Oversize (0.030 in.)
	3924449	Shim	A/R	1.00mm Oversize (0.040 in.)
