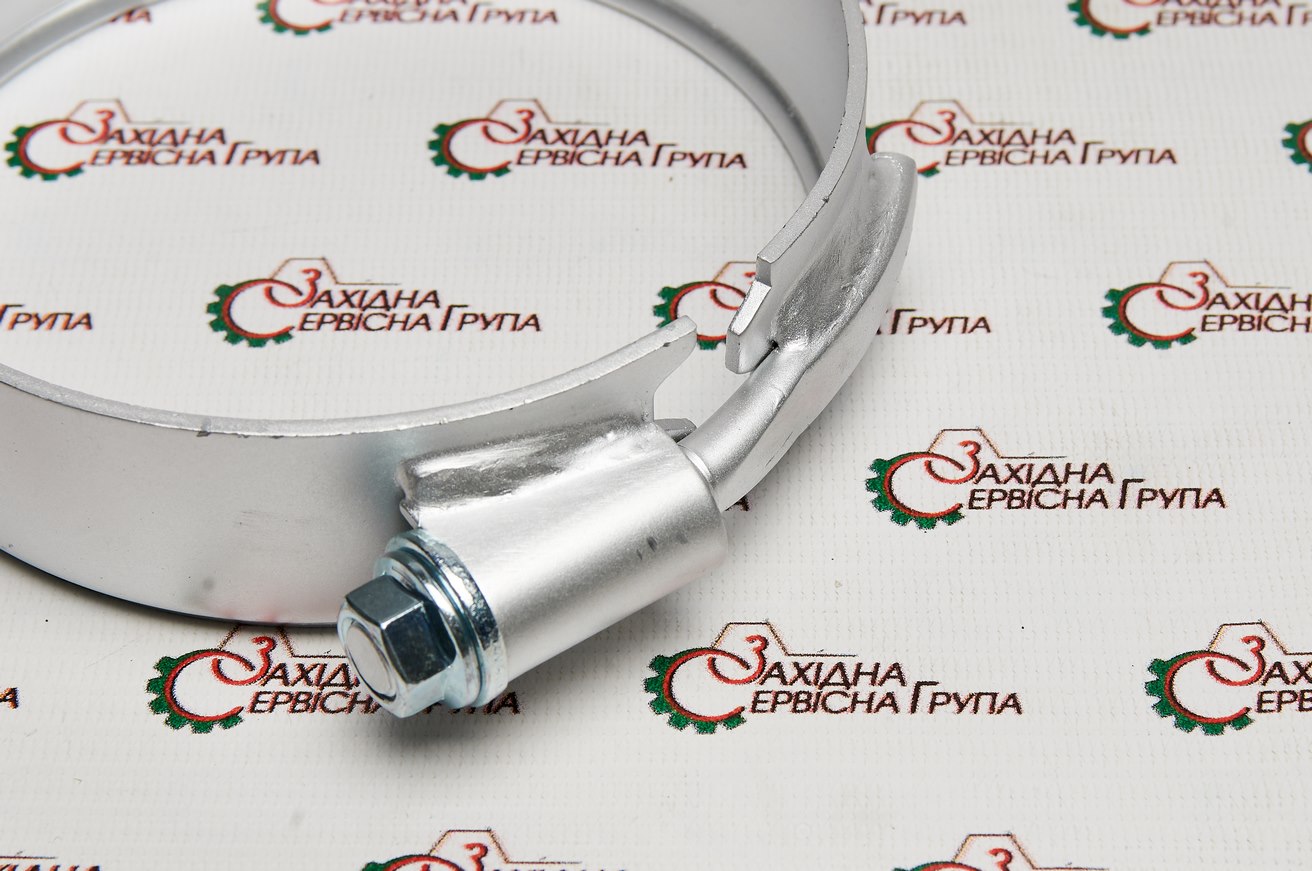

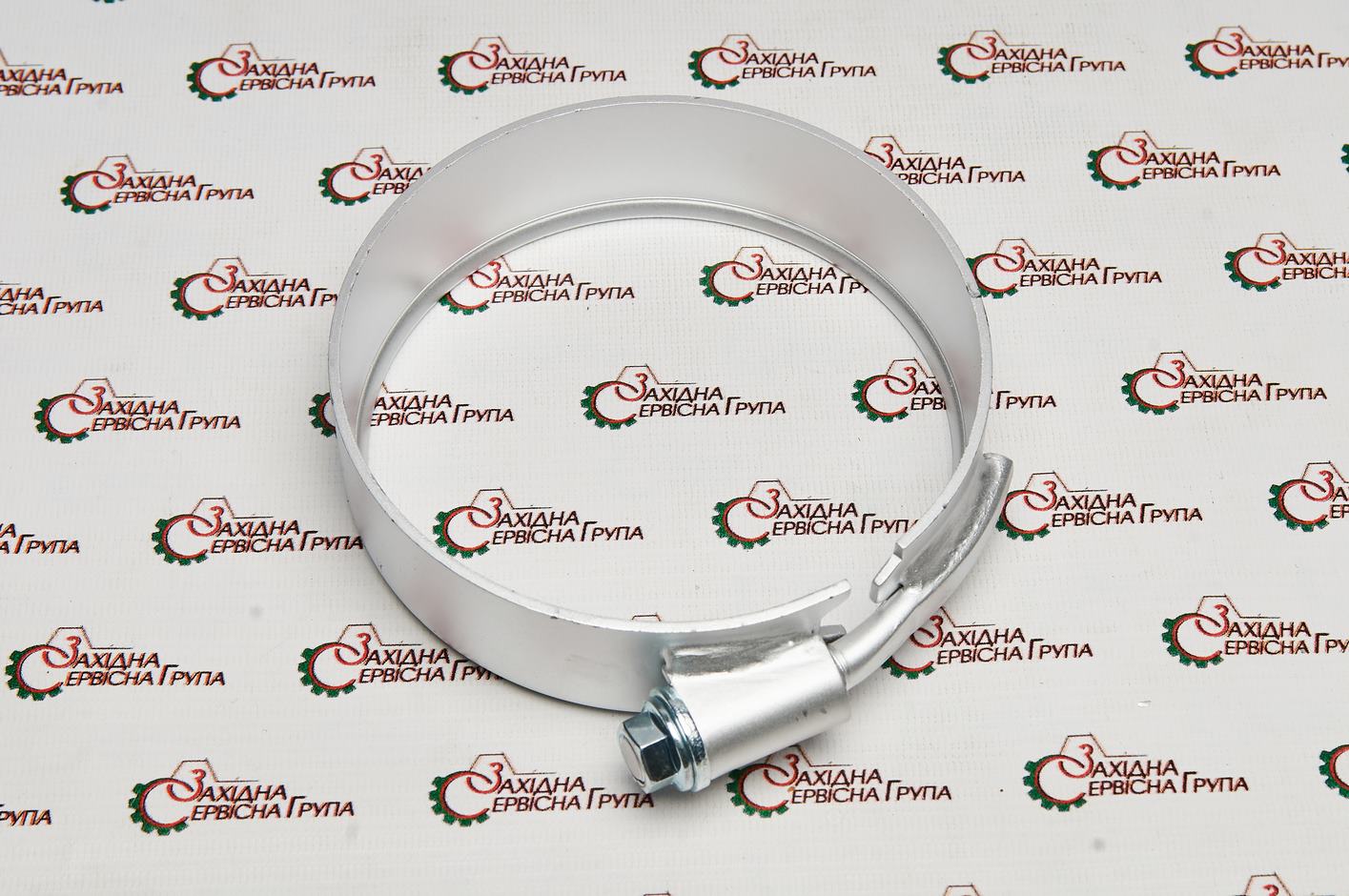

Хомут гофри випускної системи CNH (CASE/NEW HOLAND), 87406903
Хомут гофри випускної труби
Застосування: трактор CASE STX/STEIGER 380-535, NEW HOLLAND TJ380 – TJ530 / T9010 – T9060
Оригінальний номер: 87406903
Виробник: CNH

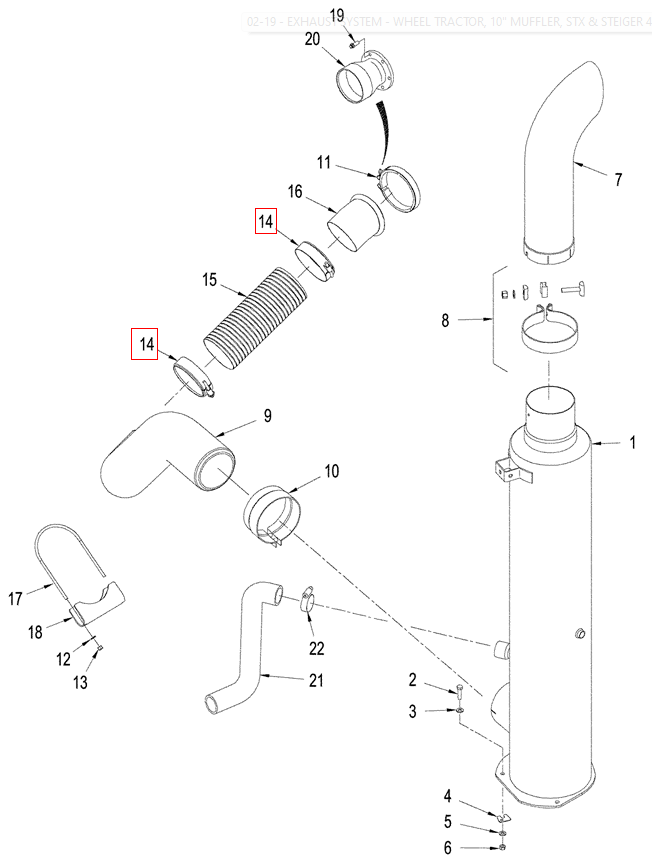

COLLAR CLAMP
| 1 | 1 | 87350582 | MUFFLER without Spark Arrestor, 10″ |
| 1 | 1 | 87443197 | MUFFLER with Spark Arrestor, 10″ |
| 2 | 4 | 827-10040 | BOLT Hex, M10 x 40, 10.9, Full Thd |
| 3 | 4 | 896-11010 | WASHER M10 x 21.5 x 2.5, HT |
| 4 | AR | 404824A1 | SHIM |
| 5 | 2 | 896-15010 | WASHER M10 x 24.5 x 3, HT |
| 6 | 4 | 832-46410 | LOCK NUT M10 x 1.5, Cl 8 |
| 7 | 1 | 87430632 | ELBOW Exhaust, Inc. 8 |
| 8 | 1 | 87430634 | CLAMP |
| 9 | 1 | 87319256 | EXHAUST SYSTEM PIPE 5.00″, 6.00″ OD, Exhaust, Doublewall |
| 10 | 1 | 357686A1 | ASSEMBLY Exhaust, 6″ |
| 11 | 1 | 31-1316 | MOUNTING CLIP , STX530 |
| 12 | 2 | 495-11034 | WASHER 5/16″, SAE |
| 13 | 2 | 231-1445 | LOCK NUT 5/16″-18, GB |
| 14 | 2 | 87406903 | COLLAR CLAMP |
| 15 | 1 | 87376393 | HYD. TUBE 5.03 mm ID x 5.27 mm OD x 13 mm L, Flexible |
| 16 | 1 | 87319225 | FLANGE Flanged |
| 17 | 1 | 87407079 | U-BOLT 6″ |
| 18 | 1 | 87443358 | BRACKET, SUPPORTING |
| 19 | 6 | 868-10025 | 12 PT SCREW 12 Pt Hd, M10 x 25, 12.9, STX480, STEIGER 480 |
| 20 | 1 | 87327027 | ELBOW Exhaust, STX480, STEIGER 480 |
| 21 | 1 | 87304242 | HOSE 50.80 mm ID x 374.70 mm, Aspirator |
| 22 | 1 | 214-3240 | HOSE CLAMP 1.75/2.625 HD Worm, W/liner |
