Ціни на запчастини не вказані на сайті. Для уточнення ціни сформуйте та відправте замовлення або зателефонуйте менеджеру.

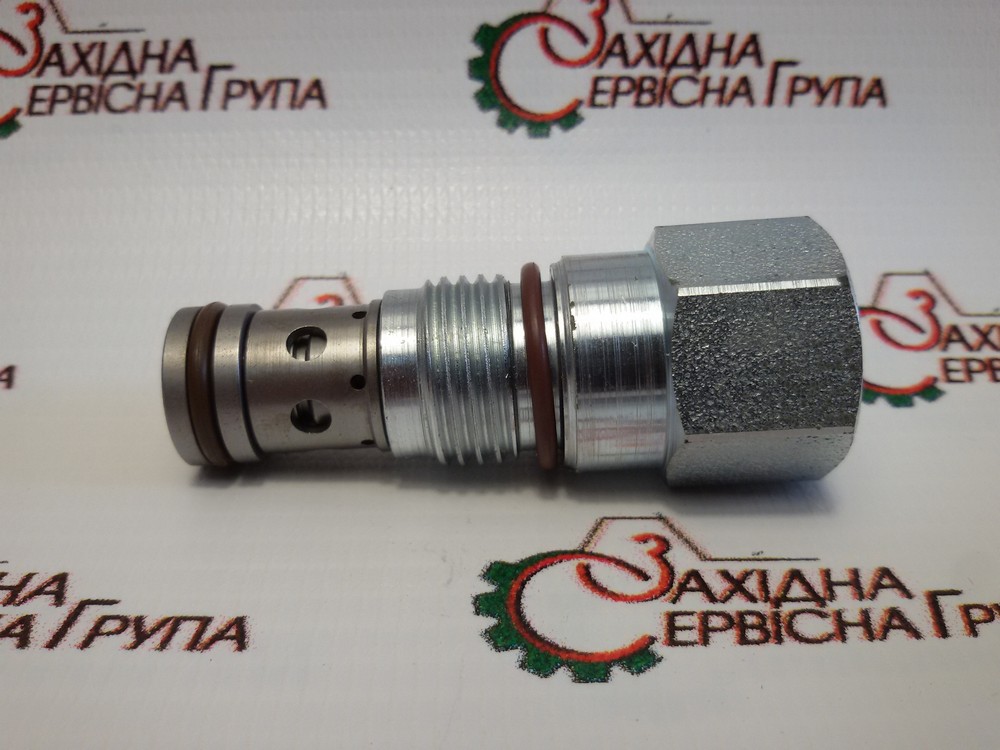

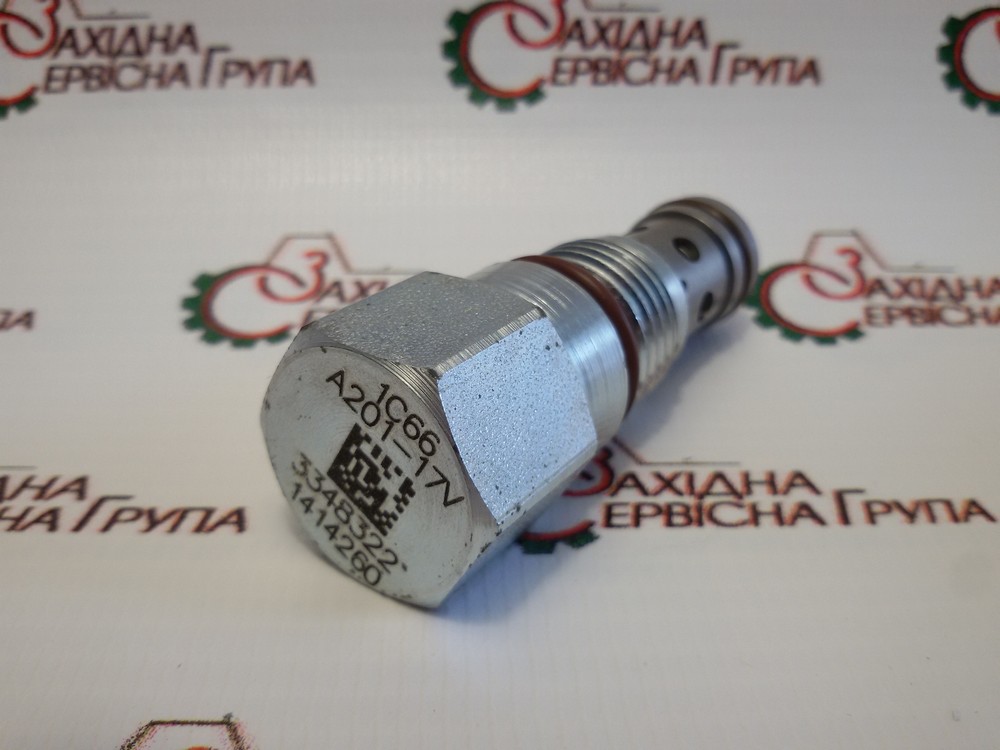

Клапан регулятора тиску палива Cummins ISX15, QSX15, 3348322.
Регулятора тиску палива
Застосування: двигун Cummins ISX15, QSX15, CASE STX/STEIGER/450-535, New Holland TJ/T9000, BUHLER VERSATILE 435/485/535, WIRTGEN W200/WR240/WR250
Оригінальний номер: 3348322
Виробник Cummins made in USA.
Pressure Regulator Valve Cummins ISX15, QSX15
| 4088505 | Fuel Control Module | 1 | ||
| 1 | 70704 | Plain Washer | 4 | 1/4 in. |
| 2 | 100099 | Rectangular Ring Seal | 2 | |
| 3 | 129768 | Valve Spring | 1 | |
| 4 | 129839 | Shut-Off Valve Shield | 1 | |
| 5 | 129888 | Rectangular Ring Seal | 2 | |
| 6 | 139988 | Rectangular Ring Seal | 2 | |
| 7 | 151900 | Rectangular Ring Seal | 2 | |
| 8 | 160514 | Plain Washer | 2 | 1 11/16 in. |
| 9 | 196057 | Valve Disc | 1 | |
| 10 | 202897 | Fuel Pump Damper Diaphragm | 2 | |
| 11 | 3025806 | Socket Head Cap Screw | 4 | M8 X 1.25 X 30. |
| 12 | 4088863 | Actuator Housing | 1 | |
| 13 | 4088274 | Actuator Disc | 1 | |
| 14 | 4902789 | Actuator Gasket | 4 | |
| 15 | ||||
| 3100221 | Coupling Nipple | 2 | ||
| 16 | 3100290 | Quick Disconnect Connector | 1 | |
| 17 | 3678912 | O-Ring Seal | 1 | M14 |
| 18 | 4076472 | Socket Head Cap Screw | 12 | |
| 19 | 3330651 | Fuel Pump Damper Cover | 2 | |
| 20 | 3330652 | Fuel Pump Damper Body | 2 | |
| 21 | 4076471 | Socket Head Cap Screw | 4 | M5 X 0.80 X 30 |
| 3331873 | Male Union | 1 | ||
| 22 | 3331838 | Male Union | 2 | |
| 23 | 3627695 | O-Ring Seal | 2 | |
| 24 | 3678786 | O-Ring Seal | 1 | M18 |
| 3348322 | Pressure Regulator Valve | 1 | ||
| 25 | 3348323 | Pressure Regulator Valve | 1 | |
| 26 | 3348703 | O-Ring Seal | 1 | |
| 27 | 3867640 | O-Ring Seal | 1 | |
| 28 | 4088450 | Hexagon Flange Head Cap Screw | 4 | |
| 29 | 3408421 | Solenoid | 1 | Serviced As 4024808. |
| 3417138 | Male Adapter Elbow | 1 | ||
| 30 | 3417139 | Male Adapter Elbow | 1 | |
| 31 | 3679139 | O-Ring Seal | 1 | |
| 4088806 | Threaded Plug | 6 | ||
| 32 | 4088802 | Threaded Plug | 5 | |
| 17 | 3678912 | O-Ring Seal | 5 | M14 |
| 3681694 | Male Union | 1 | ||
| 33 | 3089240 | O-Ring Seal | 1 | M22 |
| 34 | 3681110 | Male Union | 1 | |
| 3865346 | Temperature Sensor | Coolant Or Oil Or Fuel. | ||
| 35 | 4088751 | Temperature Sensor | 1 | |
| 36 | 4010519 | O-Ring Seal | 1 | |
| 37 | 3867481 | O-Ring Seal | 1 | |
| 38 | 3902023 | Hexagon Flange Head Cap Screw | 2 | M6 X 1.00 X 25 |
| 4009956 | Pressure Regulator Valve | 1 | ||
| 39 | 3330478 | O-Ring Seal | 1 | |
| 40 | 3867641 | O-Ring Seal | 1 | |
| 41 | 4009957 | Pressure Regulator Valve | 1 | |
| 4010077 | Check Valve | 1 | ||
| 33 | 3089240 | O-Ring Seal | 1 | M22 |
| 42 | 4010078 | Check Valve | 1 | |
| 4088807 | Threaded Plug | 1 | ||
| 43 | 4088803 | Threaded Plug | 1 | |
| 24 | 3678786 | O-Ring Seal | 1 | M18 |
| 44 | 4902906 | Metering Actuator | 2 | Serviced as 4089985. |
| 45 | 4902907 | Timing Actuator | 2 | Serviced as 4089986. |
| 46 | 4062005 | Support Gasket | 1 | |
| 47 | 4921791/4076845 | Fuel Control Housing | 1 | |
| 48 | 4076848 | Fuel Pump Gasket | 1 | |
| 49 | 4088847/4089163/4076856 | Gear Fuel Pump | 1 | |
| 4088507 | Топливный насос | 1 | ||
| 50 | 4935013 | Топливоперекачивающий насос | 1 | |
| 58 | 4088506 | Transfer Pump Support | 1 | |
| 59 | 3964385 | Fuel Pump Gasket | 1 | |
| 60 | 4088512 | Socket Head Cap Screw | 3 | |
| 51 | 4076858 | Socket Head Cap Screw | 4 | |
| 52 | 105375 | Паспортная табличка | 1 | |
| 4087993 | Pressure Sensor | 1 | fuel. | |
| 36 | 4010519 | O-Ring Seal | 1 | |
| 53 | 4087994 | Pressure Sensor | 1 | |
| 54 | S 2286 | Drive Screw | 2 | 3/16 in. |
| 55 | 3896408 | Hexagon Flange Head Cap Screw | 2 | M10 x 1.50 x 80 |
| 56 | 3903464 | Hexagon Flange Head Cap Screw | 3 | M10 X 1.50 X 40. |
| 57 | 4965689/4076587/3348526 | Fuel Control Housing Gasket | 1 | |
| 4089162 | Kit , Ifsm | 1 | ||
| 5 | 129888 | Rectangular Ring Seal | 2 | |
| 7 | 151900 | Rectangular Ring Seal | 2 | |
| 17 | 3678912 | O-Ring Seal | 8 | M14 |
| 23 | 3627695 | O-Ring Seal | 1 | |
| 24 | 3678786 | O-Ring Seal | 2 | M18 |
| 26 | 3348703 | O-Ring Seal | 1 | |
| 27 | 3867640 | O-Ring Seal | 1 | |
| 31 | 3679139 | O-Ring Seal | 1 | |
| 33 | 3089240 | O-Ring Seal | 2 | M22 |
| 36 | 4010519 | O-Ring Seal | 2 | |
| 37 | 3867481 | O-Ring Seal | 1 | |
| 39 | 3330478 | O-Ring Seal | 1 | |
| 40 | 3867641 | O-Ring Seal | 1 | |
| 46 | 4062005 | Support Gasket | 1 | |
| 47 | 4076845 | Fuel Control Housing | 1 | |
| 48 | 4076848 | Fuel Pump Gasket | 1 | |
| 52 | 105375 | Паспортная табличка | 1 | |
| 54 | S 2286 | Drive Screw | 2 | 3/16 in. |
| 57 | 4076587 | Fuel Control Housing Gasket | 1 | |
| 4089163 | Gear Fuel Pump Kit | 1 | ||
| 37 | 3867481 | O-Ring Seal | 1 | |
| 46 | 4062005 | Support Gasket | 1 | |
| 49 | 4076856 | Gear Fuel Pump | 1 | |
| 4089986 | Actuator Kit | 1 | ||
| 45 | 4902907 | Timing Actuator | 1 | Serviced as 4089986. |
| 14 | 4902789 | Actuator Gasket | 1 | |
| 4954670 | Pan Head Cap Screw | 3 | M6 X 1.00 | |
| 4089985 | Actuator Kit | 1 | ||
| 44 | 4902906 | Metering Actuator | 1 | Serviced as 4089985. |
| 14 | 4902789 | Actuator Gasket | 1 | |
| 4954670 | Pan Head Cap Screw | 3 | M6 X 1.00 | |
| 4024808 | Fuel Solenoid Kit | |||
| 5 | 129888 | Rectangular Ring Seal | 2 | |
| 29 | 3408421 | Solenoid | 1 | Serviced As 4024808. |
