Ціна

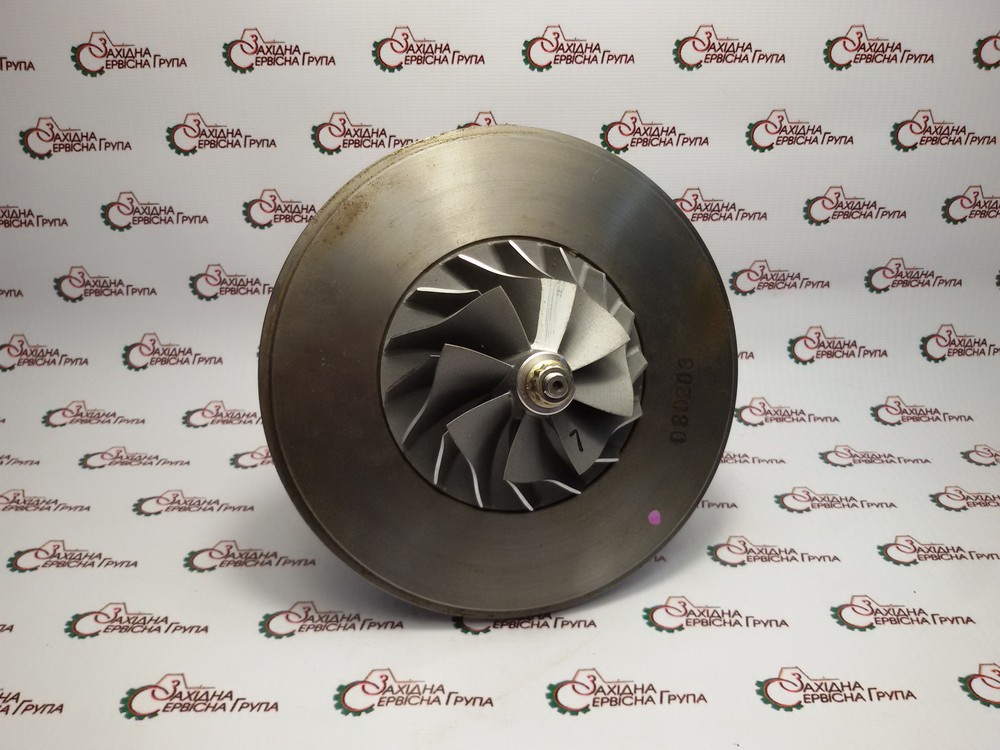

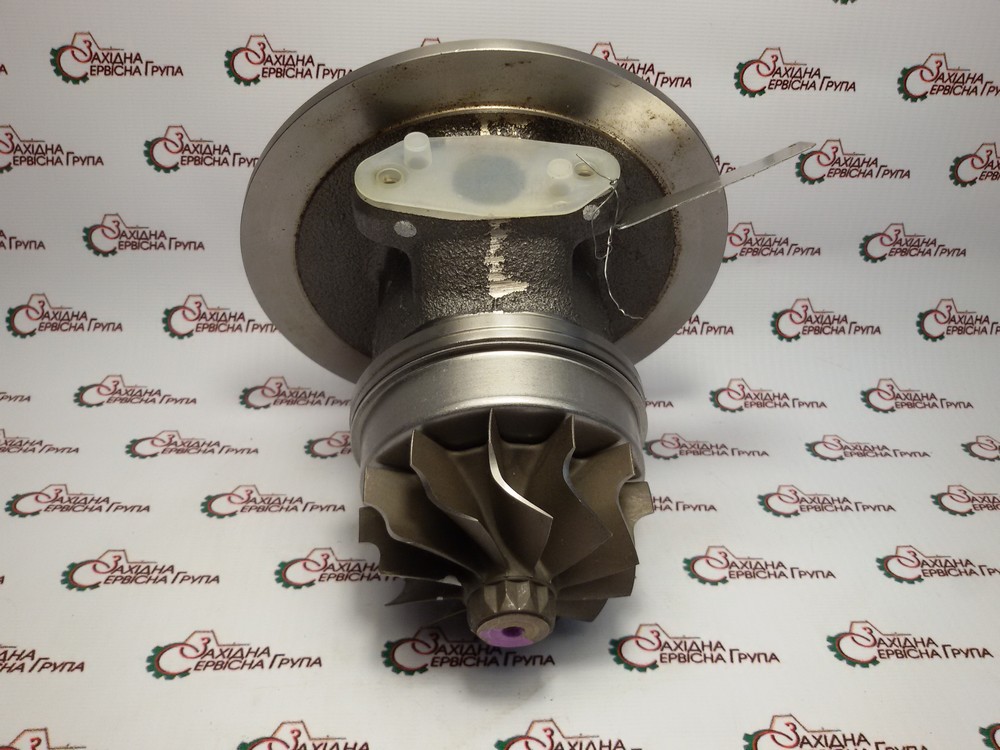

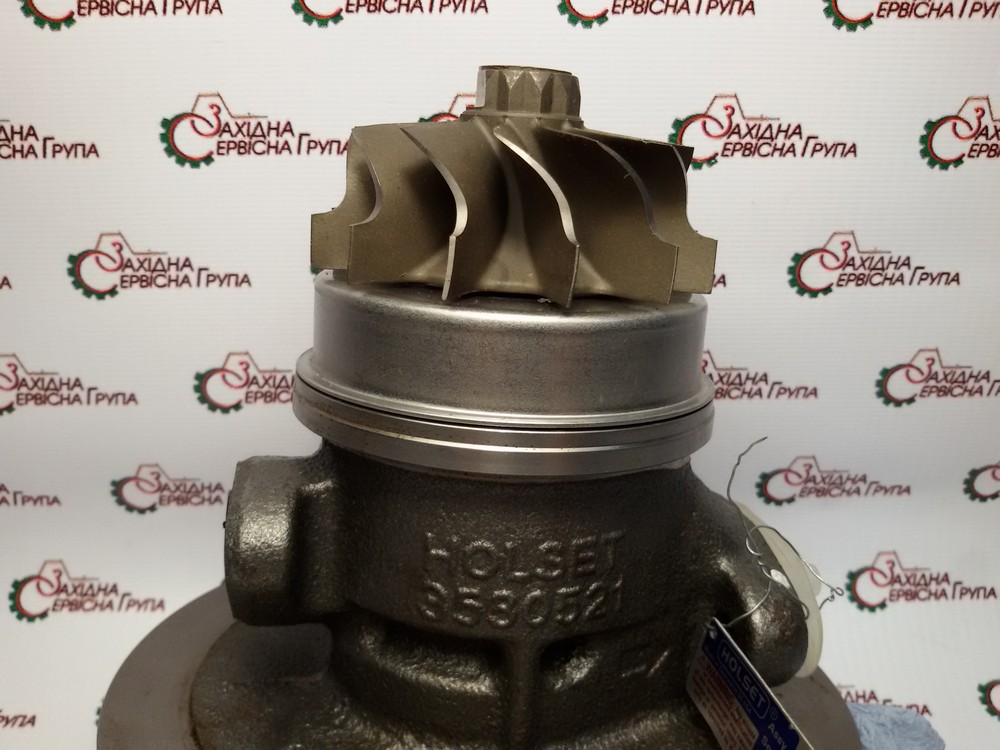

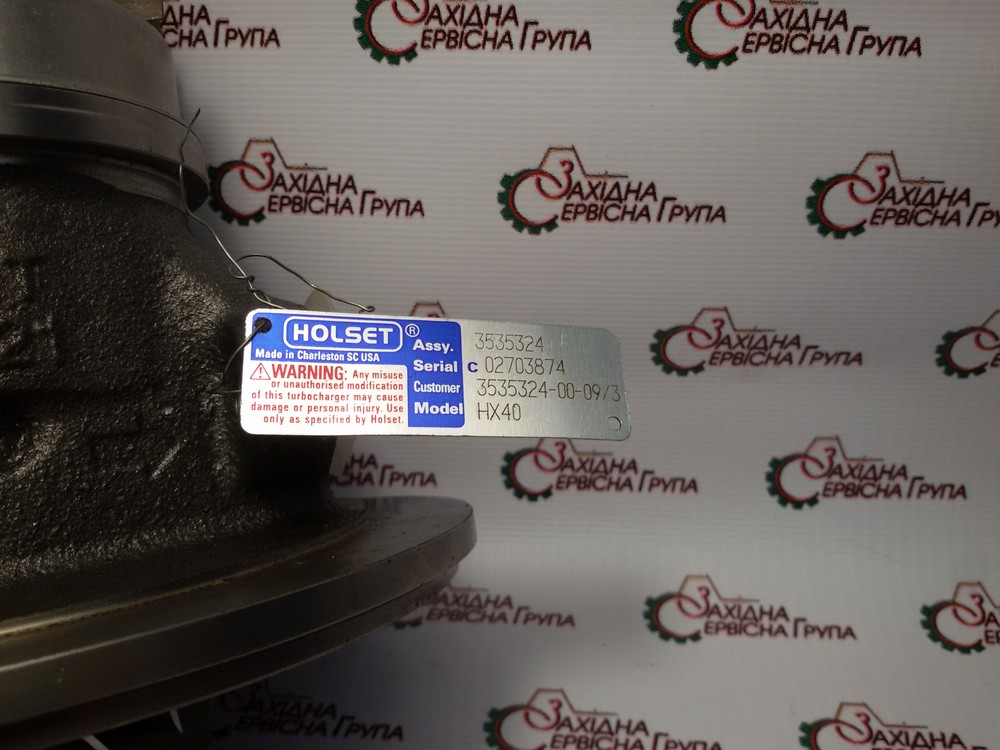

Серцевина турбокомпресора Holset HX40, Cummins 6CT8.3, QSC, 3535324, 3800426, 4044186, 4044185, 3590348, J800426, J590348, A77906
Картридж турбокомпресора Holset HX40
Застосування: двигун Cummins 6CT8.3, QSC, CASE MX/2300, New Holland TG
Оригінальний номер: 3535324, 3800426, 4044186, 4044185, 3590348
Номер CNH: J800426, J590348, A77906
Виробник Cummins made in USA
Core Turbocharger
| Ref No | Part Number | Part Description | Required | Remarks | |
|
Turbocharger
|
|||||
|
Structure Code: 03
|
|||||
|
Engine Family: “C” Series
|
|||||
|
Turbocharger Location:
|
|||||
|
Base ID17 turbocharger:
|
|||||
|
Turbocharger Type: Wastegate
|
|||||
|
Pressure Setting:
|
|||||
|
Turbocharger Model: HX16
|
|||||
|
Fixed compressor outlet
|
|||||
|
orientation: Compressor
|
|||||
|
Compressor Angle:
|
|||||
|
Wastegate bracket
|
|||||
|
orientation:
|
|||||
|
Turbine angle:
|
|||||
|
SPIG orientaion:
|
|||||
|
Engine Cylinders: 6
|
|||||
|
Aspiration: Charge Air
|
|||||
|
Cooled
|
|||||
|
Turbocharger has half Marmon
|
|||||
|
tubine outlet flange.
|
|||||
|
Turbocharger has integral
|
|||||
|
wastegate line.
|
|||||
|
HX40W for 6 CTAA encore
|
|||||
|
engines attitudes: C – 345
|
|||||
|
degrees T – 15 degrees CRR –
|
|||||
|
320 degrees SPIG – 270
|
|||||
|
degrees elb – 168 degrees
|
|||||
|
Hose length 230mm – black low
|
|||||
|
position actuator bracket
|
|||||
|
setting/checking pressure
|
|||||
|
1.98 BAR setting act rod
|
|||||
|
movement 0.5 – 1.04mm
|
|||||
|
checking act rod movement
|
|||||
|
0.33 – 1.27mm.
|
|||||
|
HX40W-p8594 l/h16 ud8
|
|||||
|
for 6 CTAA encore engine
|
|||||
|
setting/checking pressure
|
|||||
|
1.98 BAR setting actuator rod
|
|||||
|
movement 0.5 – 1.04mm
|
|||||
|
checking act rod movement
|
|||||
|
3535324
|
Core Turbocharger
|
0.33 – 1.27mm low position
|
|||
|
actuator bracket.
|
|||||
|

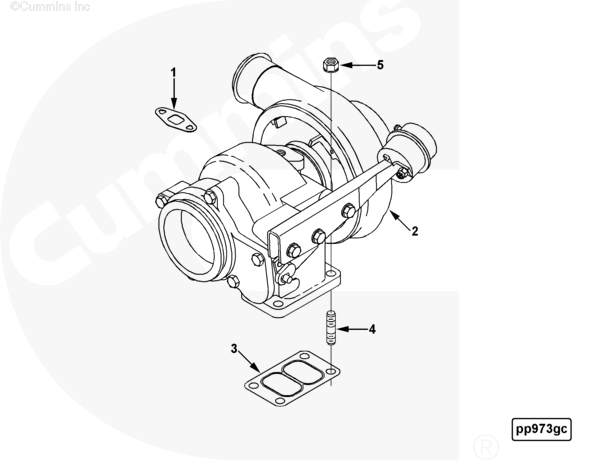

Turbocharger Kit
|
1
|
||||
|
1
|
Turbocharger Gasket
|
1
|
Holset P/N 3914388
|
||
|
2
|
Turbocharger
|
1
|
|||
|
3
|
Turbocharger Gasket
|
1
|
|||
|
4
|
Double End Plain Stud
|
4
|
|||
|
5
|
Hexagon Flange Nut
|
4
|
M10 X 1.50.
|
