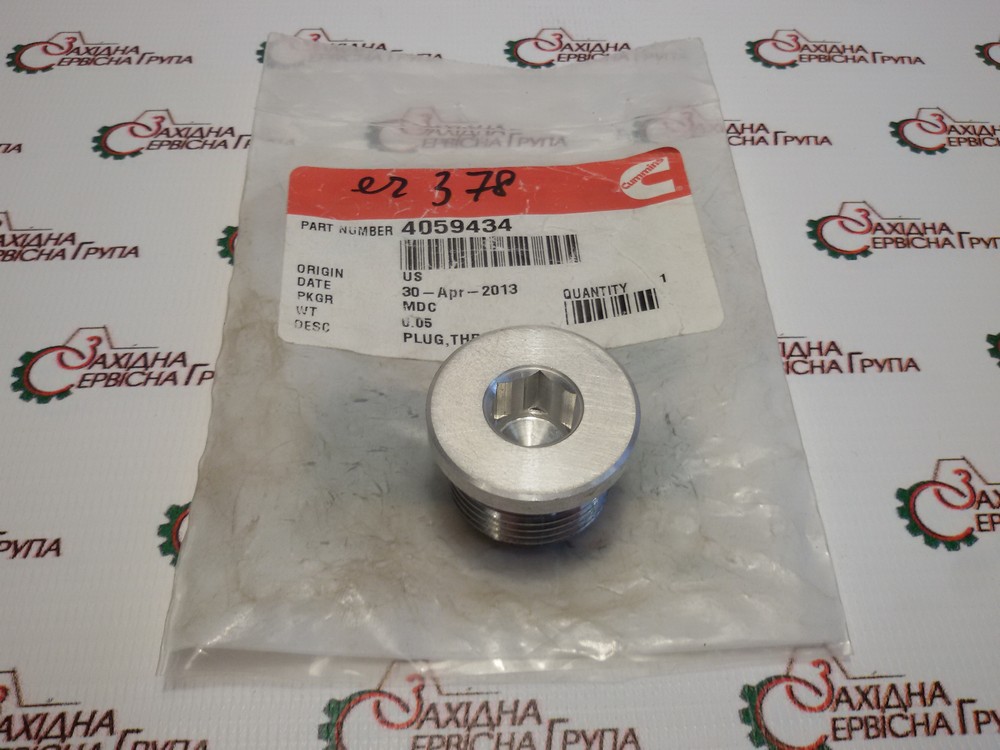

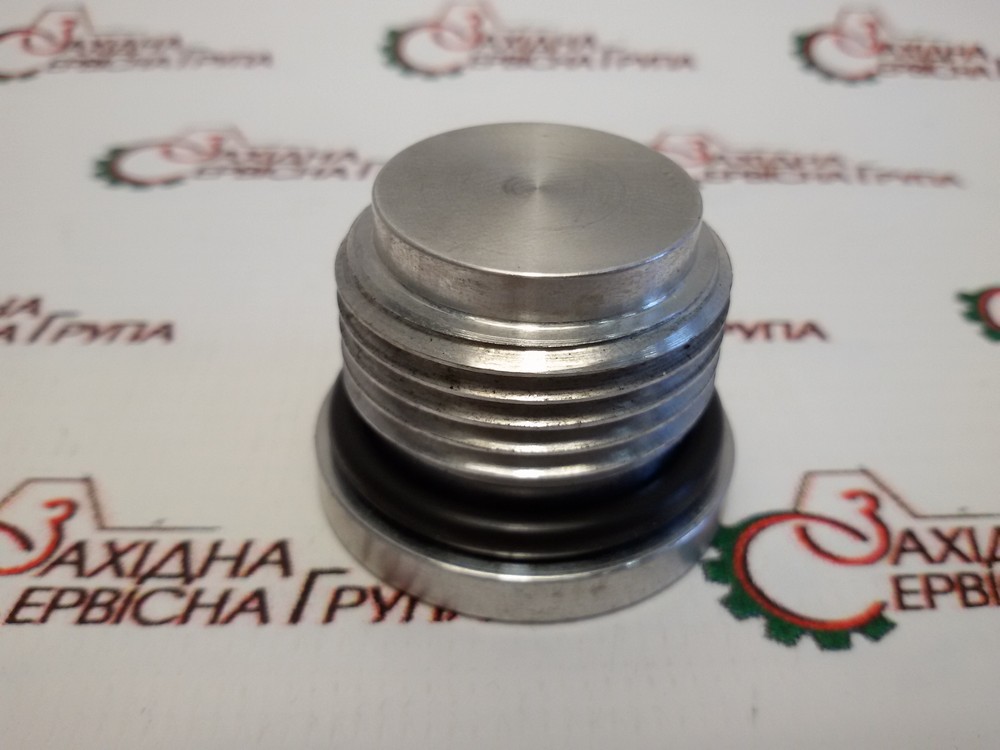

Заглушка різьбова Cummins ISX15, QSX15, 4059434, 3679770, 4059433.

Пробка різьбова

Застосування: двигун Cummins ISX15, QSX15, CASE STX/STEIGER/450-535, New Holland TJ/T9000, BUHLER VERSATILE 435/485/535, WIRTGEN W200/WR240/WR250

Оригінальний номер: 4059434, 3679770, 4059433

Виробник Cummins made in USA.

Plug, Threaded Cummins ISX15, QSX15

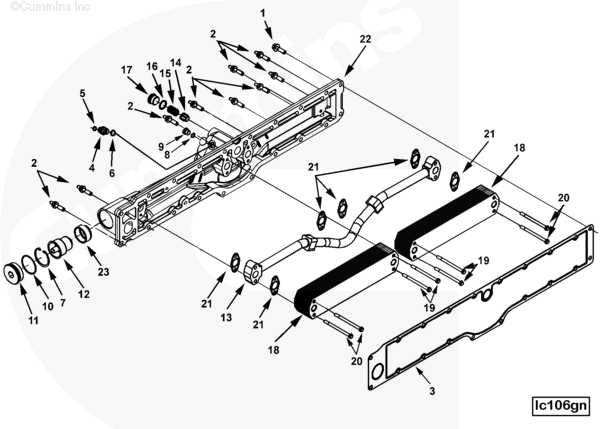

1	3417474/3328822	Screw, Captive Washer Cap	15	M10 x 1.50 x 40
	4920196/4952506/4985506/4101863/4059466/3100432	Head,Lub Oil Filter	1
2	3100300/4952631	Thermostat	1
3	3411881	Ring, Retaining	1
4	4920190/4952499	Adapter, Filter Head	1
	3678921	Plug, Threaded	3	M14 X 1.50 X 16.
5	3678912	Seal, O Ring	1	M14
6	3678922/3678921	Plug, Threaded	1	M14 X 1.50 X 16.
	4059434/3679770	Plug, Threaded	1
7	3678606	Seal, O Ring	1	M27 X 2.00.
8	4059433/4059434/3679770	Plug, Threaded	1
	3679880	Plug, Threaded	1
9	3089025	Seal, O Ring	1
10	3679881/3679880	Plug, Threaded	1
	3090400/3680027	Union, Male	1
11	3679139	Seal, O Ring	1
12	3090419/3090400/3680027	Union, Male	1
13	3922794/3883963	Seal, O Ring	1
14	3882586/3883524	Spring, Compression	1
15	4059460/4965870/4059252/3680595	Core, Cooler	2
16	4101869/4059387/3680714/4973532	Gasket, Oil Cooler Core	6
17	3681508	Insert, Filter Head	1
18	3681557	Tube, Oil Cooler	1
	3681681	Connection, Oil Cooler	2
	3681906	Isolator, Vibration	2
19	4920221/4952507/3682029/3681601//4920196/4952506/4985506/4101863/4059466/3100432	Head, Oil Filter Cooler	1
20	4101867/4059463/3681689	Screw, Twelve Point Cap	4
21	4101868/4059464	Screw, Twelve Point Cap	4
22	3820320	Plunger, Bypass Valve	1
23	3681927	Screw, Captive Washer Cap	5
24	3682789/3104232/3689755/3680712	Gasket, Lub Oil Clr Hsg	1
	4089197	Kit, Lub Oil Clr Hsg Gaske
	3682789	Gasket, Lub Oil Clr Hsg	1
	4026420	Cover, Protective	1
	4058956	Cover, Protective	1
