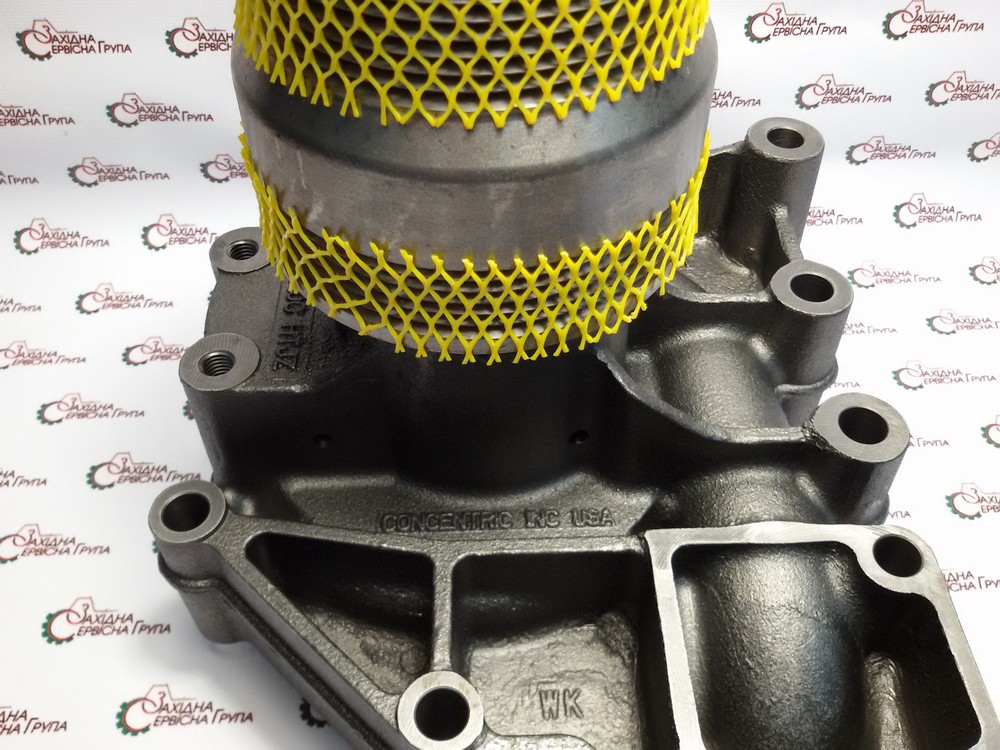

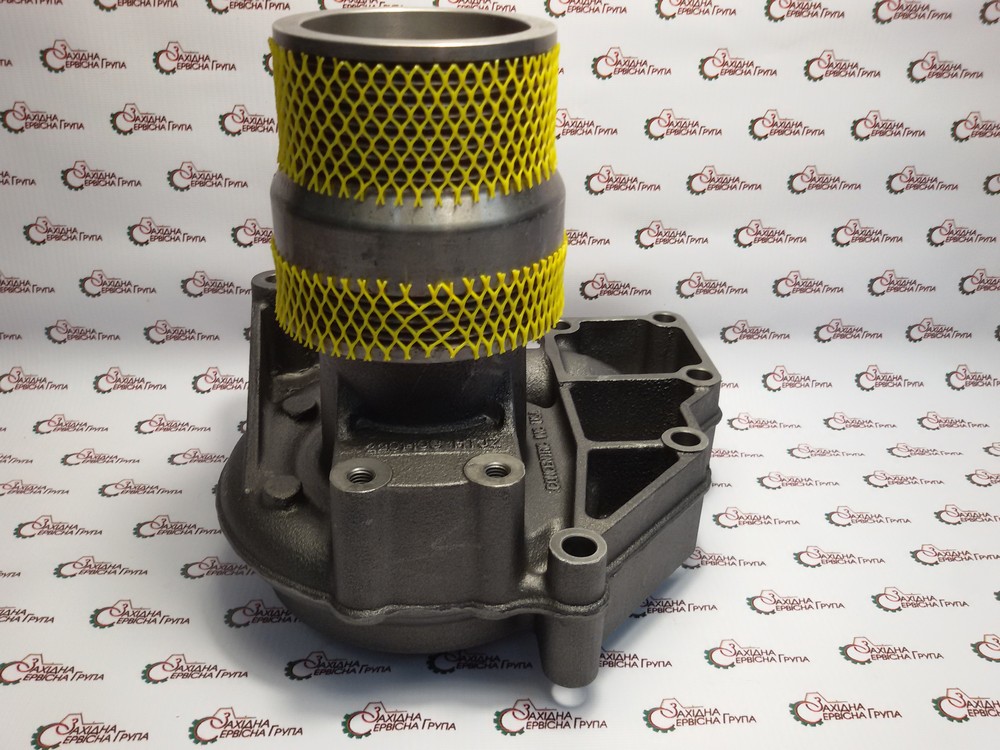

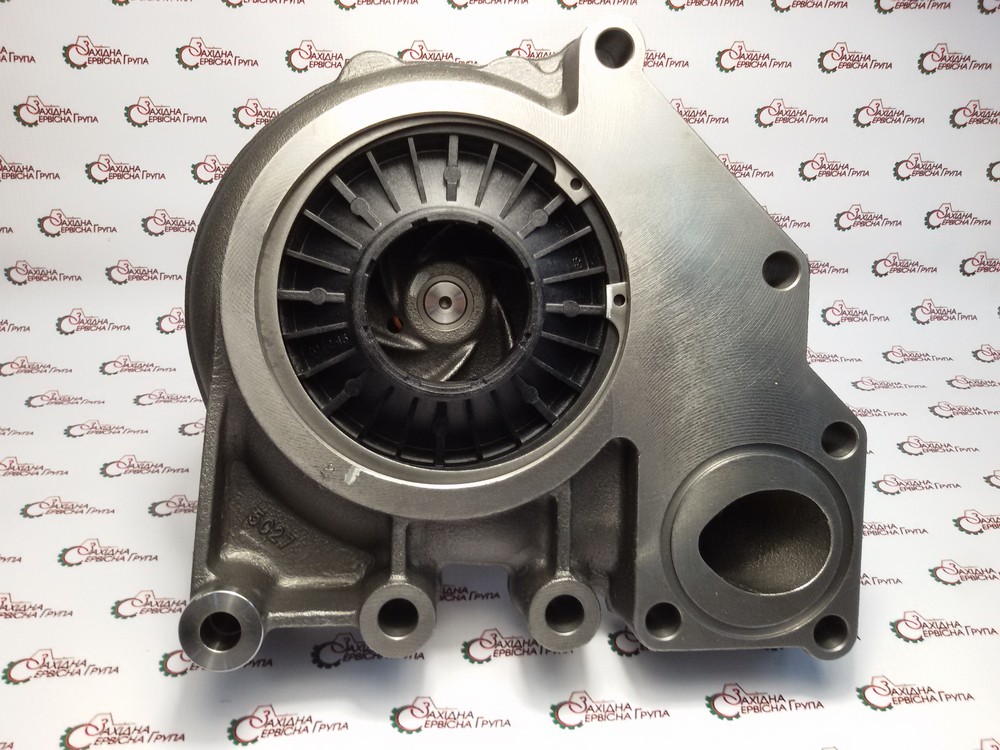

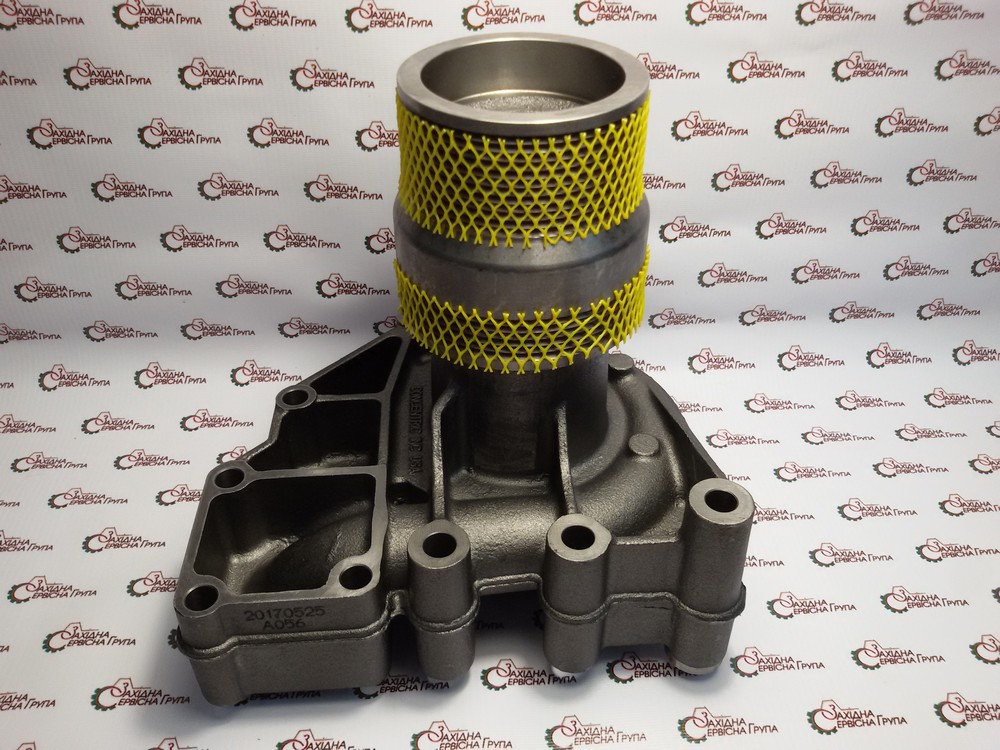

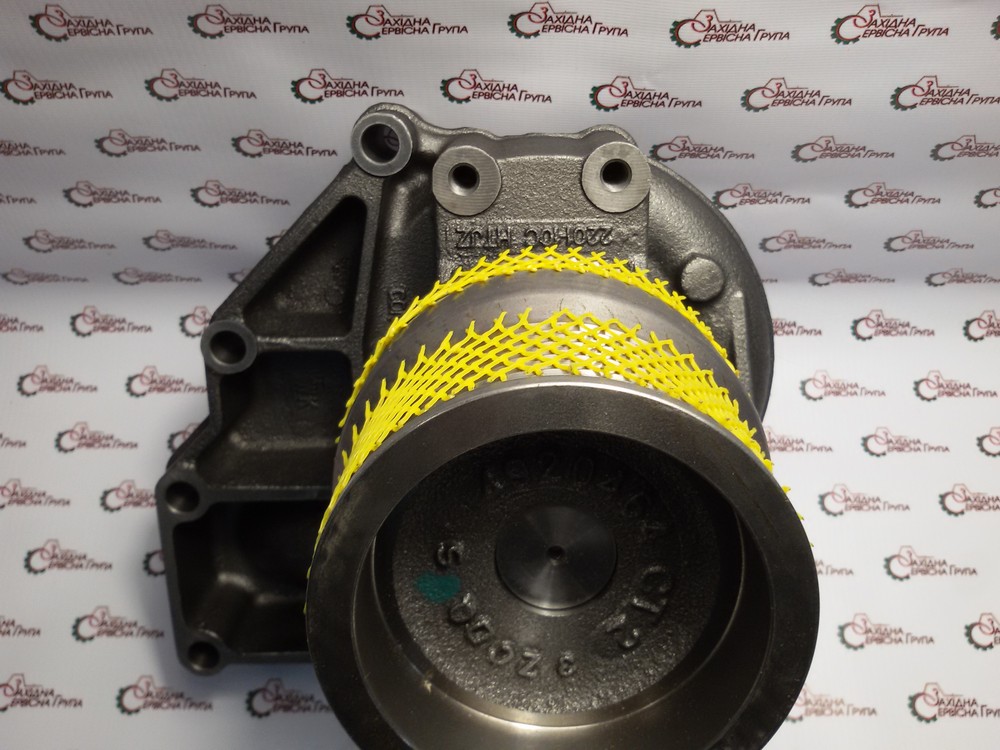

Насос водяний Cummins ISX, QSX, 5473363, 4089909, 4920464, 3101331, 3681580, 4024886
Помпа водяна системи охолодження двигуна
Застосування: двигун Cummins ISX15, QSX15, CASE STX/STEIGER/450-535, New Holland TJ/T9000, BUHLER VERSATILE 435/485/535, WIRTGEN W200/WR240/WR250
Оригінальний номер: 5473363, 4089909, 4920464, 3101331, 3681580, 4024886
Виробник Cummins made in USA
Water Pump

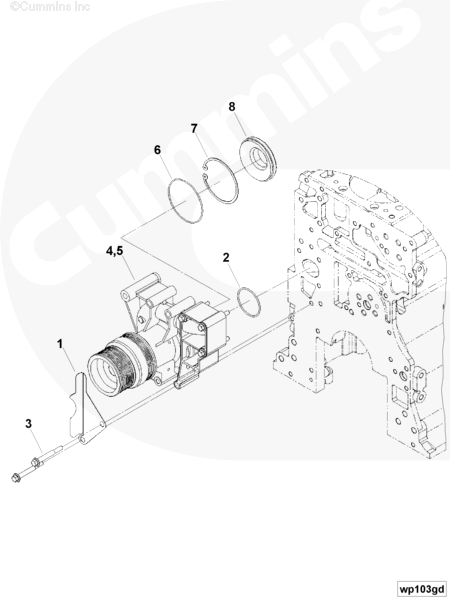

| Ref No | Part Number | Part Description | Required | Remarks | |
| WP1750 | Water Pump | ||||
| Water Pump | |||||
| Fan Drive Provision: | |||||
| Customer Supplied Fan, Crank | |||||
| Mounted Fans, or Cummins | |||||
|
Supplied Fan Drives with Fan
|
|||||
| Drive Tensioner Mounted on | |||||
| Fan Bracket Fan Belt | |||||
|
Fan Belt Tensioner Mounting
|
|||||
|
Location: Fan Bracket
|
|||||
| Fan | |||||
|
Mounting Provision: No
|
|||||
|
Dust Shield Included: Yes
|
|||||
|
1
|
Dust Shield
|
1
|
|||
|
2
|
O-Ring Seal
|
1
|
|||
|
3
|
Hexagon Flange Head Cap Screw
|
5
|
|||
|
4
|
Water Pump
|
1
|
Serviced as 4089909.
|
||
|
5
|
Water Pump Body
|
1
|
|||
|
Water Pump
|
1
|
Recon equivalent 4089909 NX
|
|||
|
O-Ring Seal
|
1
|
Water pump to block
|
|||
|
O-Ring Seal
|
1
|
Water pump inlet connection
|
|||
|
Water Repair Kit
|
1
|
||||
|
O-Ring Seal
|
1
|
Water pump inlet connection
|
|||
|
O-Ring Seal
|
1
|
Water pump to block
|
|||
|
O-Ring Seal
|
1
|
Water pump cover plate
|
|||
|
Retaining Ring
|
1
|
||||
|
Water Pump Cover
|
1
|
