Ціни на запчастини не вказані на сайті. Для уточнення ціни сформуйте та відправте замовлення або зателефонуйте менеджеру.

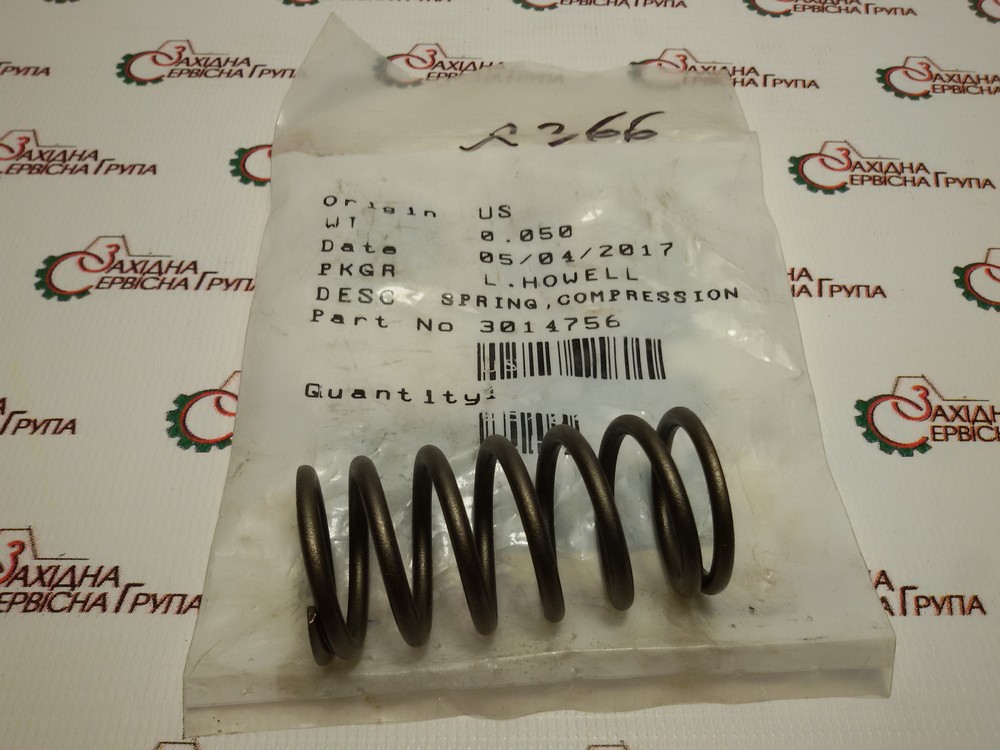

Пружина плунжера регулятора тиску масла Cummins ISM11, QSM11, N14, NTA, 3014756, 3012528.
Пружина плунжера регулятора тиску масла
Застосування: двигун Cummins ISM11, QSM11, N14, NTA, BUHLER VERSATILE 2375/2400, HYUNDAI ROBEX 500LC-7, CASE 9370
Оригінальний номер: 3014756, 3012528
Виробник Cummins made in USA.
Spring, Bypass Valve
| 3803717/3328618/4060394/3895836 | Assembly, Cylinder Block | 1 | ||
| 1 | 3895836 | Block, Cylinder | 1 | |
| 2 | 148555 | Dowel, Pin | 2 | No. 4 Only |
| 3 | 179063 | Plug, Retainer | 1 | |
| 4 | 3014754 | Washer, Plain | 1 | |
| 5 | 3014755/3012530 | Disc, Valve | 1 | |
| 6 | 3014756/3012528 | Spring, Bypass Valve | 1 | |
| 7 | 3820566/2878168/3017325 | Bushing, Camshaft | 7 | |
| 8 | 3008466 | Plug, Pipe | 2 | 1/4 NPT. |
| 9 | 3026758 | Seat, Pressure Reg Valve | 1 | |
| 3801279/3400759/4060388/4999611 | Cap, Main Bearing | 1 | ||
| 10 | 3027490/3400759/4060388/4999611/3161537/3026960// 3026961/4999610// 3801279/3400759/4060388/4999611 | Cap, Main Bearing | 1 | No. 4 Only |
| 11 | 3028252 | Pin, Roll | 2 | |
| 10 | 3026961/4999610 | Cap, Main Bearing | 6 | No. 7 Only |
| 12 | 3027493/3328742/3045848 | Screw, Hexagon Head Cap | 14 | M14 x 1.50 x 156 |
| 13 | 3895832 | Stud | 7 | M10 x 1.00 x 50 |
| 14 | 70550/3010919 | Dowel, Pin | 1 | 5/16 x 1/2 inch |
| 15 | 142207 | Dowel, Pin | 2 | 7/16 x 1 inch |
| 16 | 3007635/3900957 | Plug, Expansion | 4 | 1 inch |
| 17 | 3007632 | Plug, Expansion | 9 | 0.378 Dia |
| 18 | 3008446 | Dowel, Pin | 3 | 6.00 x 12.00 mm |
| 19 | 3008468/199067 | Plug, Pipe | 1 | 1/2 NPT |
| 20 | 3026231 | Dowel, Ring | 3 | 19.23 mm |
| 3037536 | Plug, Threaded | 4 | 9/16 – 18 UNF | |
| 21 | 3040813/3037536 | Plug, Threaded | 1 | 9/16 – 18 UNF |
| 22 | 3037537/118350 | Seal, O Ring | 1 | |
| 3046202/3040996 | Plug, Threaded | 1 | 3/4 – 16 UNF. | |
| 23 | 3040810/166484/207309//3046202/3040996 | Plug, Threaded | 1 | |
| 24 | 3046201/172049 | Seal, O Ring | 1 | |
| 25 | 3069728/3066784 | Sensor, Viscosity | 1 | Oil. |
| 26 | 3019631/3009420 | Washer, Plain | 14 | 1/2 inch |
| 27 | 3068979/3068408 | Plunger, Prs Regulator | 1 | |
| 28 | 3010146 | Spring, Compression | 1 | |
| 29 | 3821725/3037589 | Plug, Retainer | 1 | |
| 30 | 3042619 | Nipple, Coupling | 1 |
