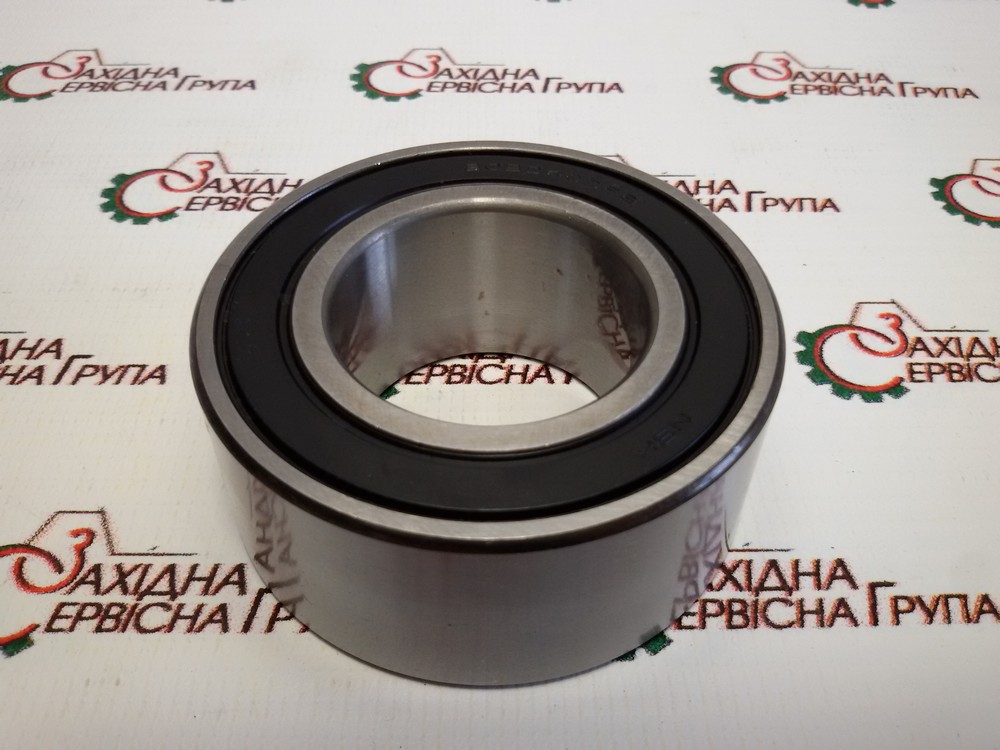

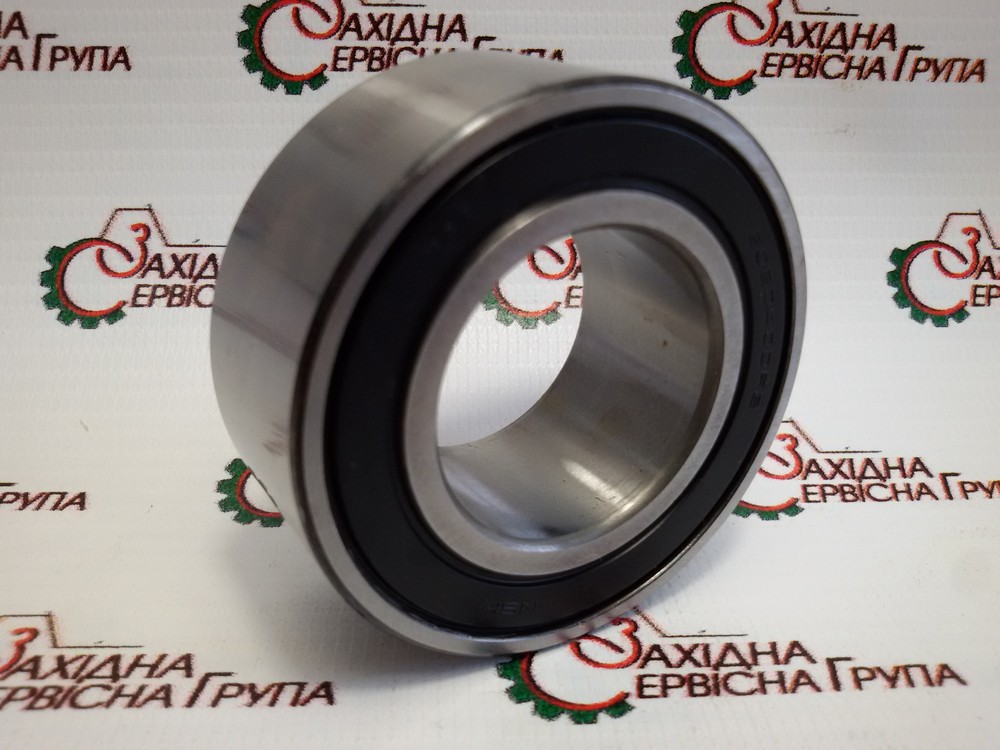

Підшипник підтримуючого ролика ременя генератора
Застосування: двигун Cummins ISM11, QSM11, BUHLER VERSATILE 2375/2400, HYUNDAI ROBEX 500LC-7
Оригінальний номер: 3401202
Виробник Cummins made in USA
Bearing, Ball

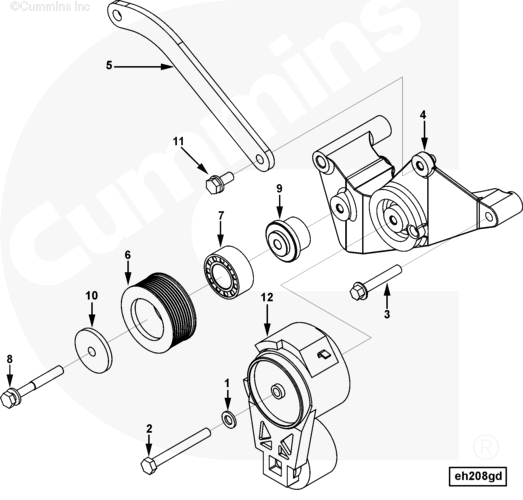

| Ref No | Part Number | Part Description | Required | Remarks | |
|
Alternator Mounting
|
|||||
|
Alternator Mounting
|
|||||
|
Alternator Quantity: One
|
|||||
|
Manufacturer/Model:
|
|||||
|
Delco Remy or Leece Neville
|
|||||
|
Mtg. Location: Right Side
|
|||||
|
Serpentine Alternator/Fan
|
|||||
|
Drive: Yes
|
|||||
|
Drive Location: Crankshaft
|
|||||
|
Alt. Pulley Diameter:
|
|||||
|
76.20mm (3 in.)
|
|||||
|
Alt. Pulley Groove: Poly V
|
|||||
|
8 Rib “K”
|
|||||
|
Alt. Pulley Groove Location:
|
|||||
|
140.0mm (5.51 in.)
|
|||||
|
Belt Tensioner: Automatic
|
|||||
|
Required Drive Pulley Dia:
|
|||||
|
190.00mm (7.48 in.)
|
|||||
|
Bracket Attachment Method: 4
|
|||||
|
Inch Spool
|
|||||
|
Horizontal Attachment Point:
|
|||||
|
330mm (12.99 in.)
|
|||||
|
Vertical Attachment Point:
|
|||||
|
223mm (8.78 in.)
|
|||||
|
Reference Point From FFOB:
|
|||||
|
102mm (4.02 in.)
|
|||||
|
Alternator Pulley Supplied:
|
|||||
|
Cummins
|
|||||
|
Alternator Mtg Brkt Supplied:
|
|||||
|
On Engine
|
|||||
|
Belt Tensioning Mechanism
|
|||||
|
Supplied: On Engine
|
|||||
|
Alternator Drive Speed: 2.49
|
|||||
|
EH Alt Pulley Structure
|
|||||
|
Logic: In EH Dependent
|
|||||
|
Option
|
|||||
|
Mounting Hardware Supplied:
|
|||||
|
Cummins
|
|||||
|
1
|
Plain Washer
|
2
|
M10.
|
||
|
2
|
Hexagon Head Cap Screw
|
2
|
M10 x 1.50 x 90.
|
||
|
3
|
Hexagon Flange Head Cap Screw
|
2
|
M10 X 1.50 X 60
|
||
|
4
|
Alternator Support
|
1
|
|||
|
5
|
Alternator Brace
|
1
|
|||
|
Idler Pulley
|
1
|
||||
|
6
|
Idler Pulley
|
1
|
|||
|
7
|
Ball Bearing
|
1
|
|||
|
8
|
Captive Washer Cap Screw
|
1
|
M10 X 1.50 X 80.
|
||
|
9
|
Idler Shaft
|
1
|
|||
|
10
|
Idler Pulley Cover
|
1
|
|||
|
11
|
Captive Washer Cap Screw
|
1
|
M10 X 1.50 X 25.
|
||
|
12
|
Belt Tensioner
|
1
|
