Ціна

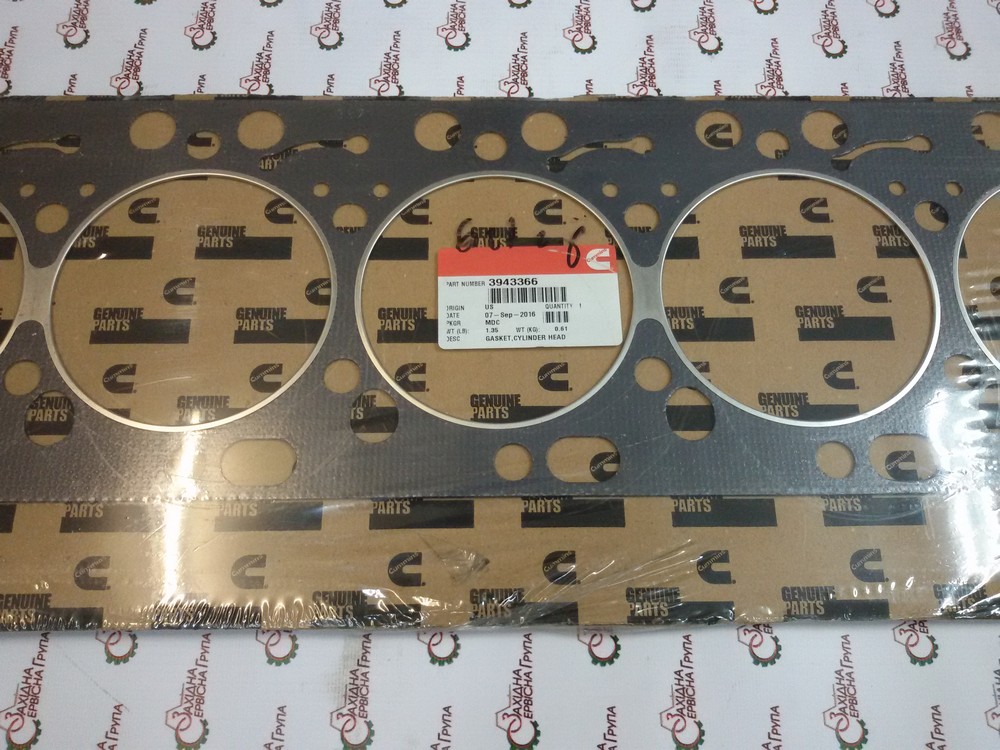

Прокладка ГБЦ двигуна Cummins ISC, QSC, 3943366, 3943902, J943366, 87775155
Прокладка головки блока циліндрів двигуна
Застосування: двигун Cummins ISC, QSC, CASE MX/2300, New Holland TG
Оригінальний номер 3943366, 3943902
Номер CNH: J943366, 87775155
Виробник Cummins made in USA
Gasket, Cylinder Head

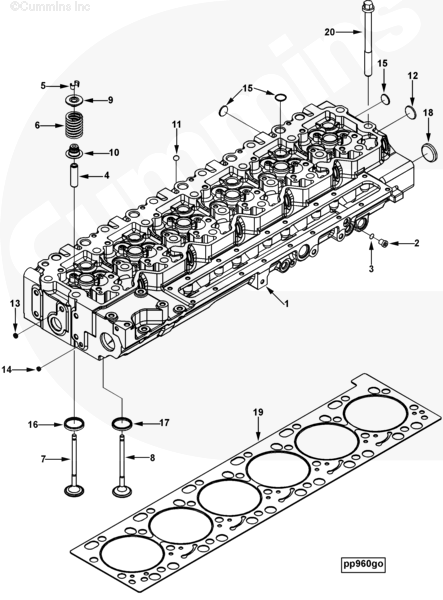

| Ref No | Part Number | Part Name | Required | Remarks |
| PP97176-03 | Cylinder Head | |||
| Qualified initial pick-up | ||||
| only | ||||
| Engine Family: C/D Series (6 | ||||
| Cylinders) | ||||
| Target Swirl: 2.00 | ||||
| Exhaust Brake Spring: Yes | ||||
| Exhaust Manifold Type: Dry | ||||
| Aspiration: | ||||
| Turbocharged/aftercooled (air | ||||
| to air or jacket water) | ||||
| Material: Gray Iron | ||||
| Development Build Level: | ||||
| C-P6 | ||||
| 3943571 | Head, Cylinder | 1 | ||
| 1 | 3943569 | Head, Cylinder | 1 | |
| 3943567 | Head, Cylinder | 1 | ||
| 3678923 | Plug, Threaded | 1 | M10 x 1 x 13.5 | |
| 2 | 3678924 | Plug, Threaded | 1 | M10 x 1.00 x 13.5 |
| 3 | 3678925 | Seal, O Ring | 1 | M10 |
| 4 | 3942645 | Guide, Valve Stem | 24 | |
| 5 | 3900250 | Collet, Valve | 48 | |
| 6 | 3940279 | Spring, Valve | 24 | |
| 7 | 3942588 | Valve, Intake | 12 | Sold In Higher Level Assy/Kit |
| 8 | 3942589 | Valve, Exhaust | 12 | Sold In Higher Level Assy/Kit |
| 9 | 3942590 | Retainer, Valve Spring | 24 | |
| 10 | 3942643 | Seal, Valve Stem | 12 | |
| 10 | 3942644 | Seal, Valve Stem | 12 | |
| 11 | 210036 | Plug, Expansion | 6 | |
| 12 | 3032693 | Plug, Expansion | 2 | 1.198 in. |
| 13 | 3900955 | Plug, Expansion | 1 | |
| 14 | 3907555 | Plug, Expansion | 1 | |
| 15 | 3920706 | Plug, Expansion | 17 | |
| 16 | 3940152 | Insert, Valve | 12 | Intake |
| 17 | 3940153 | Insert, Valve | 12 | Exhaust |
| 18 | 3908092 | Plug, Expansion | 2 | |
| 19 | 3943366 | Gasket, Cylinder Head | 1 | |
| 20 | 3917728 | Screw, Hex Flange Head Cap | 26 | M14 x 2.00 x 160 |
