Ціни на запчастини не вказані на сайті. Для уточнення ціни сформуйте та відправте замовлення або зателефонуйте менеджеру.

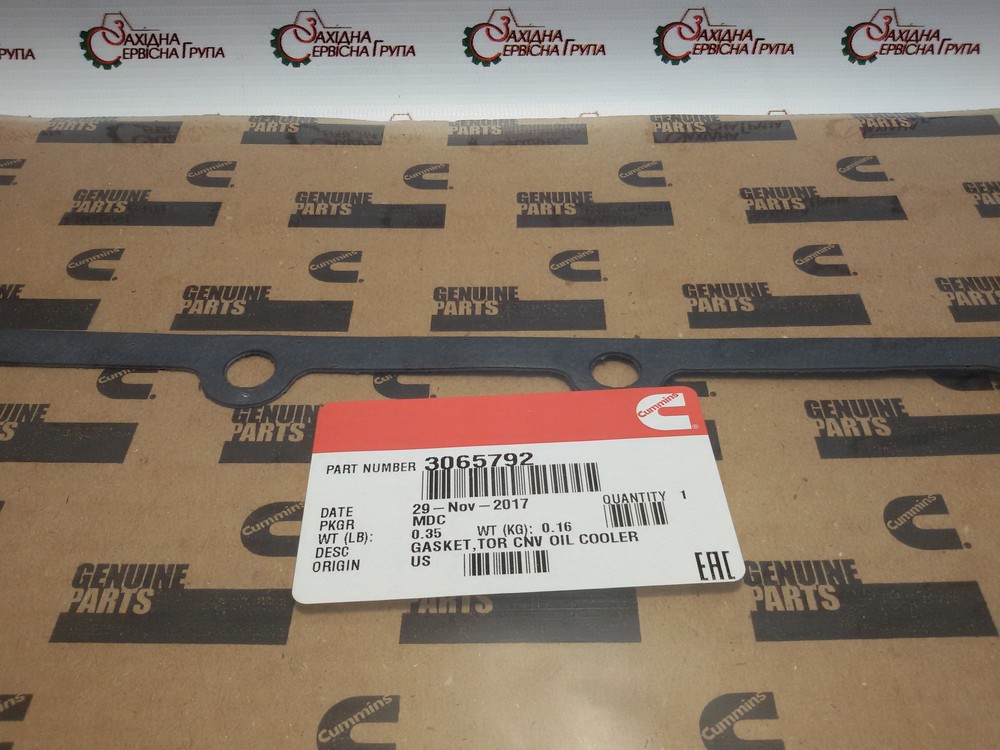

Прокладка корпуса маслоохолоджувача Cummins KTA19, 3065792, 3011626, 3001179.
Прокладка корпусу охолоджувача моторного масла
Застосування: двигун Cummins KTA19, БелАЗ 7547-7555
Оригінальний номер: 3065792, 3011626, 3001179
Виробник Cummins made in USA.
Gasket, Tor Cnv Cooler Cummins KTA19
| 1 | 3011224 | Tube, Water Bypass | 1 | |
| 2 | 70624 | Seal, O Ring | 1 | |
| 3 | 3085733/3010299 | Connection, Water Bypass | 1 | |
| 4 | 3010596 | Screw, Captive Washer Cap | 2 | 3/8 – 16 x 1 1/4 in. |
| 5 | 3015283 | Screw, Captive Washer Cap | 1 | 5/16 – 18 x 3/4 in. |
| 6 | 3056787 | Clamp, Hose | 2 | 1 13/16 – 2 3/4 in |
| 7 | 3060912/3201783/195866/205342 | Gasket, Connection | 1 | |
| 8 | 3063240 | Hose, Plain | 1 | |
| 9 | 3201287/3010689 | Clip | 1 | |
| 10 | S 103 C | Screw, Hexagon Head Cap | 8 | 3/8 – 24 X 3 3/4 in |
| 11 | S 602 | Washer, Plain | 2 | 3/8 in. |
| 12 | S 923 E | Draincock | 1 | |
| 13 | S 962 E | Draincock | 1 | |
| 14 | 127362 | Washer, Plain | 11 | 3/8 in. |
| 15 | 206973/3085998 | Gasket, Oil Cooler Core | 4 | |
| 16 | 212161/211126 | Seal, O Ring | 8 | |
| 17 | 3002126/206024 | Nut, Lock | 4 | |
| 18 | 3012473 | Screw, Captive Washer Cap | 2 | 3/8 – 16 x 1 3/4 in. |
| 19 | 3012474 | Screw, Captive Washer Cap | 2 | 3/8 – 16 x 2 in. |
| 20 | 3013222/3011622 | Screw, Hexagon Head Cap | 8 | 3/8 – 16 x 9 in. |
| 3037536 | Plug, Threaded | 1 | 9/16 – 18 UNF | |
| 21 | 3037537 | Seal, O Ring | 1 | |
| 22 | 3040813 | Plug, Threaded | 1 | 9/16 – 18 UNF |
| 23 | 3042329 | Washer, Plain | 8 | 3/8 in. |
| 24 | 3042372/3011629/3001177 | Cover, Tor Cnv Oil Cooler | 1 | |
| 25 | 3065791/3011627/206967 | Gasket, Tor Cnv Oil Cooler | 1 | |
| 26 | 3065792/3011626/3001179 | Gasket, Tor Cnv Cooler | 1 | |
| 27 | 3085955 | Housing, Oil Cooler | 1 | Serviced as 3804958 |
| 28 | 3090449/3042370/3001176 | Housing, Tor Cnv Cooler | 1 | |
| 3200781/206256 | Plug, Drain | 1 | ||
| 29 | 145540 | Seal, O Ring | 1 | |
| 30 | 206256 | Plug, Threaded | 1 | 1 3/4 – 18 UNS |
| 31 | 3804935/4095097/3331668/3201785/3023079/3002567/206969 | Core, Cooler | 2 | Serviced as 3804935 |
| 3202101 | Plug, Threaded | 2 | 1 1/16 – 12 UN | |
| 32 | 3046943 | Seal, O Ring | 2 | |
| 33 | 3050897 | Plug, Threaded | 2 | |
| 34 | 3635074/3627295/3177235/205615 | Core, Cooler | 2 | |
| 35 | S 604 | Washer, Lock | 11 | 3/8 in. |
| 36 | 205275 | Screw, Twelve Point Cap | 4 | 3/8 – 16 X 1 3/4 in. |
| 37 | 3033038 | Screw, Captive Washer Cap | 2 | 3/8 – 16 x 1 5/8 in. |
| 38 | 3040838 | Screw, Captive Washer Cap | 10 | 3/8 – 16 x 1 1/4 in. |
| 39 | 3042890 | Screw, Captive Washer Cap | 7 | 3/8 – 16 x 4 in. |
| 40 | 3062410 | Screw, Hexagon Head Cap | 7 | 3/8 – 16 x 11 1/4 in. |
| 41 | 3065790/3086003/3081590 | Gasket, Lub Oil Clr Hsg | 1 | |
| 3040995/118349/3040809 | Plug, Threaded | 1 | 9/16 – 18 UNF | |
| 42 | 3037537/118350 | Seal, O Ring | 1 | |
| 43 | 3040809 | Plug, Threaded | 1 | |
| 44 | 3042889 | Screw, Captive Washer Cap | 1 | 3/8 – 16 x 1 7/8 in. |
