Прокладка корпуса термостата Cummins ISX, QSX, 3684336, 3680601
Прокладка корпуса термостата системи охолодження
Застосування: двигун Cummins ISX15, QSX15, CASE STX/STEIGER/450-535, New Holland TJ/T9000, BUHLER VERSATILE 435/485/535, WIRTGEN W200/WR240/WR250
Оригінальний номер: 3684336, 3680601
Виробник Cummins made in USA
Thermostat Housing Gasket

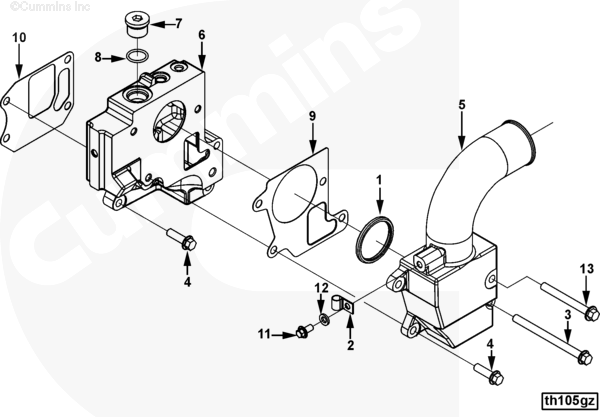

| Ref No | Part Number | Part Description | Required | Remarks | |
| TH1192-01 |
Thermostat Housing
|
||||
|
Thermostat Housing
|
|||||
|
Thermostat Quantity: One
|
|||||
|
Coolant Outlet Connection
|
|||||
|
Quantity: One
|
|||||
|
Engine Coolant Outlet
|
|||||
|
Connection: Cast In
|
|||||
|
Engine Coolant Vent Port:
|
|||||
|
Vertical M12 Stor
|
|||||
|
OEM Plumbing Port: Vertical
|
|||||
|
M27 Stor
|
|||||
|
Water Outlet: 90 Degrees
|
|||||
|
Forward
|
|||||
|
For Use With Right Front
|
|||||
|
Lifting Bracket Only
|
|||||
|
With Mounting Hole
|
|||||
|
Locations: 5336, 5338, and
|
|||||
|
5339
|
|||||
|
1
|
Thermostat Seal
|
1
|
|||
|
2
|
Clip
|
1
|
|||
|
3
|
Hexagon Flange Head Cap Screw
|
1
|
M10 x 1.50 x 130
|
||
|
4
|
Hexagon Flange Head Cap Screw
|
3
|
M10 X 1.50 X 35.
|
||
|
5
|
Thermostat Housing Cover
|
1
|
|||
|
6
|
Thermostat Housing
|
1
|
|||
|
Threaded Plug
|
1
|
||||
|
7
|
3678605 |
Threaded Plug
|
1
|
||
|
8
|
O-Ring Seal
|
1
|
M27 X 2.00
|
||
|
9
|
Thermostat Housing Cover Gasket
|
1
|
|||
|
10
|
Thermostat Housing Gasket
|
1
|
|||
|
11
|
Hexagon Flange Head Cap Screw
|
1
|
M8 X 1.25 X 16
|
||
|
12
|
Spring Washer
|
1
|
|||
|
13
|
Hexagon Flange Head Cap Screw
|
3
|
M10 X 1.50 X 90.
|
