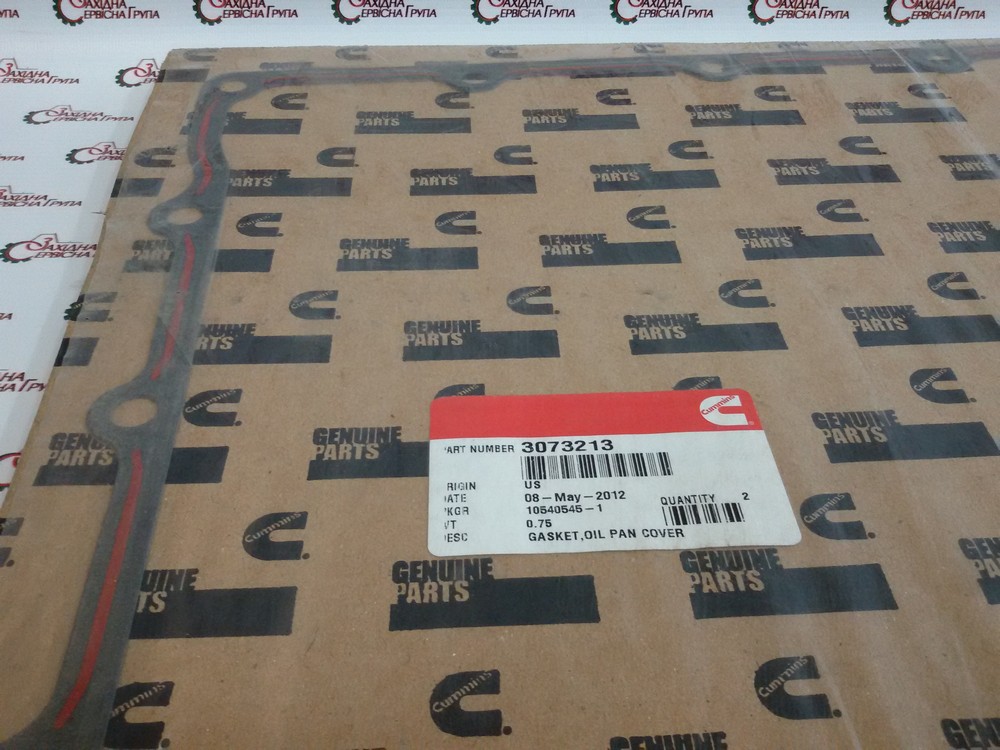

Прокладка піддона масляного малого Cummins K19, KTA19, KTTA19, 3073213, 3202259, 3042589
Прокладка адаптера піддону масляного
Застосування: двигун Cummins KTA19, БелАЗ 7547-7555
Оригінальний номер: 3073213, 3202259, 3042589
Виробник Cummins made in USA
Adapter Gasket

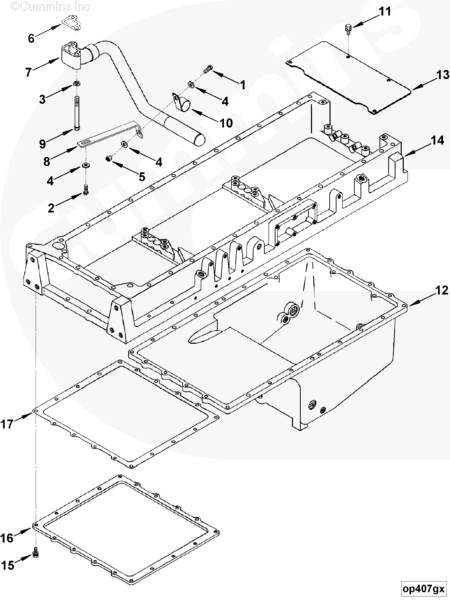

| Ref No | Part Number | Part Description | Required | Remarks | |
|
Oil Pan
|
|||||
| oil pan with baffle. Includes | |||||
| oil pan adapter. Oil pan has | |||||
| oil drain and by-pass filter | |||||
| return on both sides. Oil | |||||
| level without rear gear train | |||||
| is 12.5gallons (47.3liter) | |||||
| high and 10.5gallons | |||||
| (40liter) low. With rear gear | |||||
| train 14.5gallons (54.9liter) | |||||
| high and 12.5gallons (47.3 | |||||
| liter) low. Oil pan sump | |||||
| modified for clearance. First | |||||
| used by IHC on the TD-25-E | |||||
| crawler |
.
|
||||
|
1
|
Hexagon Head Cap Screw
|
1
|
3/8 – 16 X 1 in.
|
||
|
2
|
Hexagon Head Cap Screw
|
1
|
3/8 – 24 X 1 in.
|
||
|
3
|
Lock Washer
|
2
|
7/16 in.
|
||
|
4
|
Plain Washer
|
3
|
3/8 in.
|
||
|
5
|
Lock Nut
|
1
|
3/8 – 24 UNF.
|
||
|
6
|
Oil Suction Connection Gasket
|
1
|
|||
|
7
|
Lubricating Oil Suction Tube
|
1
|
|||
|
8
|
Tube Brace
|
1
|
|||
|
9
|
Hexagon Head Cap Screw
|
2
|
7/16 – 14 x 4.5
|
||
|
10
|
Clip
|
1
|
|||
|
11
|
Captive Washer Cap Screw
|
4
|
3/8 – 16 X 1 in.
|
||
|
12
|
Oil Pan
|
1
|
|||
|
13
|
Oil Pan Baffle
|
1
|
|||
|
14
|
Oil Pan Adapter
|
1
|
Serviced as 3804727
|
||
|
15
|
Captive Washer Cap Screw
|
18
|
3/8 – 16 x 1 1/4 in.
|
||
|
16
|
Oil Pan Adapter Cover
|
1
|
|||
|
17
|
Adapter Gasket
|
1
|
