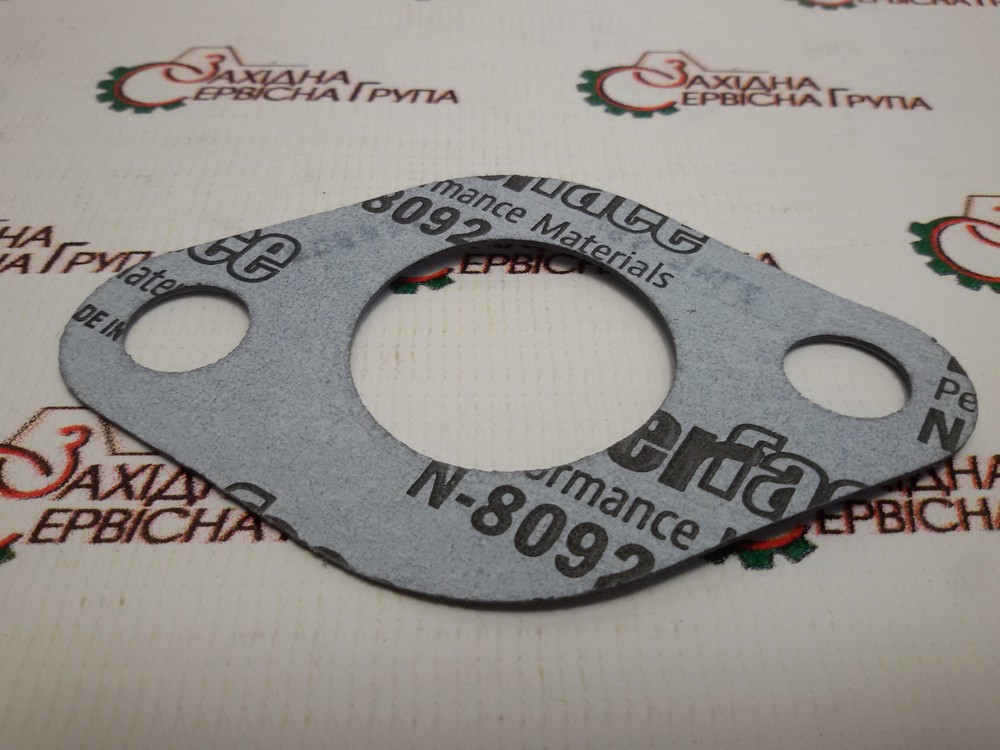

Прокладка серцевини маслоохолоджувача Cummins KTA19, 206973, 3085998.

Прокладка теплообмінника масла двигуна

Застосування: двигун Cummins KTA19, БелАЗ 7547-7555

Оригінальний номер: 206973, 3085998

Виробник Cummins made in USA.

Gasket, Oil Cooler Core Cummins KTA19

Уплотнение маслоохладителя Cummins KTA19 206973 3085998
1 3011224 Tube, Water Bypass 1
2 70624 Seal, O Ring 1
3 3085733/3010299 Connection, Water Bypass 1
4 3010596 Screw, Captive Washer Cap 2 3/8 – 16 x 1 1/4 in.
5 3015283 Screw, Captive Washer Cap 1 5/16 – 18 x 3/4 in.
6 3056787 Clamp, Hose 2 1 13/16 – 2 3/4 in
7 3060912/3201783/195866/205342 Gasket, Connection 1
8 3063240 Hose, Plain 1
9 3201287/3010689 Clip 1
10 S 103 C Screw, Hexagon Head Cap 8 3/8 – 24 X 3 3/4 in
11 S 602 Washer, Plain 2 3/8 in.
12 S 923 E Draincock 1
13 S 962 E Draincock 1
14 127362 Washer, Plain 11 3/8 in.
15 206973/3085998 Gasket, Oil Cooler Core 4
16 212161/211126 Seal, O Ring 8
17 3002126/206024 Nut, Lock 4
18 3012473 Screw, Captive Washer Cap 2 3/8 – 16 x 1 3/4 in.
19 3012474 Screw, Captive Washer Cap 2 3/8 – 16 x 2 in.
20 3013222/3011622 Screw, Hexagon Head Cap 8 3/8 – 16 x 9 in.
3037536 Plug, Threaded 1 9/16 – 18 UNF
21       3037537 Seal, O Ring 1
22       3040813 Plug, Threaded 1 9/16 – 18 UNF
23 3042329 Washer, Plain 8 3/8 in.
24 3042372/3011629/3001177 Cover, Tor Cnv Oil Cooler 1
25 3065791/3011627/206967 Gasket, Tor Cnv Oil Cooler 1
26 3065792/3011626/3001179 Gasket, Tor Cnv Cooler 1
27 3085955 Housing, Oil Cooler 1 Serviced as 3804958
28 3090449/3042370/3001176 Housing, Tor Cnv Cooler 1
3200781/206256 Plug, Drain 1
29       145540 Seal, O Ring 1
30       206256 Plug, Threaded 1 1 3/4 – 18 UNS
31 3804935/4095097/3331668/3201785/3023079/3002567/206969 Core, Cooler 2 Serviced as 3804935
3202101 Plug, Threaded 2 1 1/16 – 12 UN
32       3046943 Seal, O Ring 2
33       3050897 Plug, Threaded 2
34 3635074/3627295/3177235/205615 Core, Cooler 2
35 S 604 Washer, Lock 11 3/8 in.
36 205275 Screw, Twelve Point Cap 4 3/8 – 16 X 1 3/4 in.
37 3033038 Screw, Captive Washer Cap 2 3/8 – 16 x 1 5/8 in.
38 3040838 Screw, Captive Washer Cap 10 3/8 – 16 x 1 1/4 in.
39 3042890 Screw, Captive Washer Cap 7 3/8 – 16 x 4 in.
40 3062410 Screw, Hexagon Head Cap 7 3/8 – 16 x 11 1/4 in.
41 3065790/3086003/3081590 Gasket, Lub Oil Clr Hsg 1
3040995/118349/3040809 Plug, Threaded 1 9/16 – 18 UNF
42       3037537/118350 Seal, O Ring 1
43       3040809 Plug, Threaded 1
44 3042889 Screw, Captive Washer Cap 1 3/8 – 16 x 1 7/8 in.
