Ціни на запчастини не вказані на сайті. Для уточнення ціни сформуйте та відправте замовлення або зателефонуйте менеджеру.

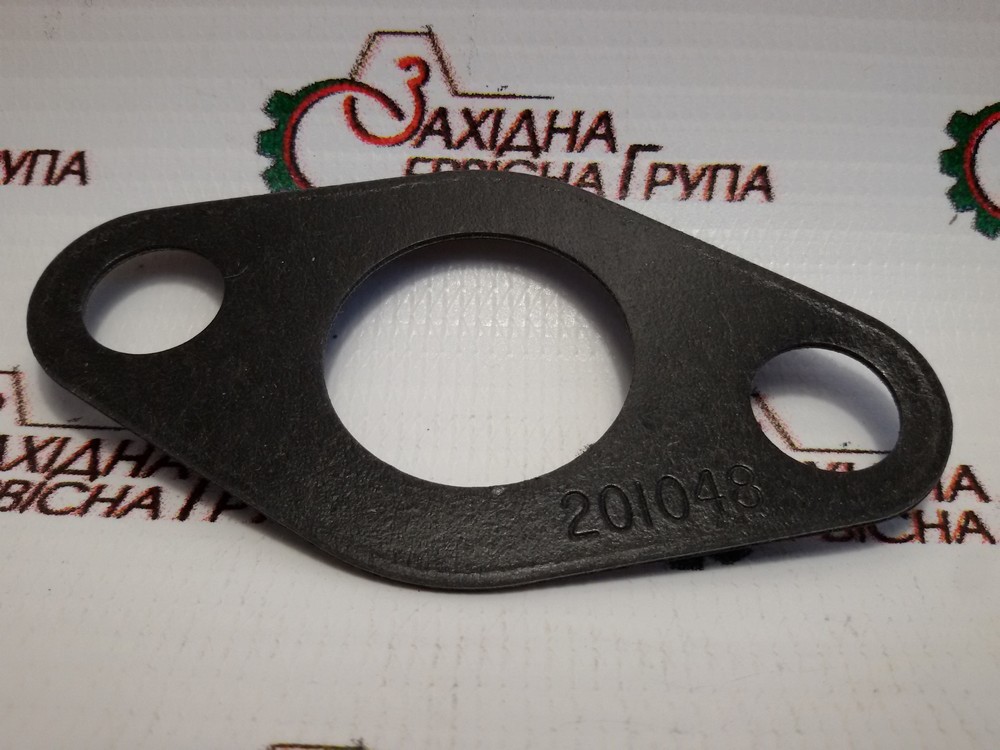

Прокладка подачі змазки турбокомпресора
Застосування: двигун Cummins KTA19, БелАЗ 7547-7555
Оригінальний номер: 201048
Виробник Cummins made in USA.
Gasket, Connection Cummins KTA19
| 3801803 | Kit, Turbo | 1 | Recon Equivalent 3801803 RX | |
| 3594066 | Turbocharger | 1 | Serviced as 3801803 | |
| 1 | 3502449 | Seal, Rectangular Ring | 1 | |
| 2 | 3504967 | Washer, Plain | 4 | Holset Part Sold Only In Kits |
| 3 | 3519163 | Screw, Drive | 2 | |
| 4 | 3519535 | Nut, Lock | 1 | M11 x 1.00 |
| 5 | 3591522 | Collar, Thrust | 1 | |
| 6 | 3519627 | Bearing, Turbocharger | 2 | |
| 7 | 3519641 | Ring, Retaining | 4 | |
| 8 | 3536588 | Shield, Turbocharger Heat | 1 | |
| 9 | 3521034 | Shaft & Wheel | 1 | |
| 10 | 3521225 | Screw, Hexagon Head Set | 8 | M8 X 1.25 X 16 |
| 11 | 3521442 | Seal, Split Ring | 1 | |
| 12 | 3522904 | Lockplate | 4 | |
| 13 | 3523412 | Seal, Split Ring | 1 | |
| 14 | 3594555 | Housing, Tur Bearing | 1 | |
| 15 | 3522597 | Pin, Roll | 2 | |
| 16 | 3523024 | Impeller, Tur Compressor | 1 | |
| 17 | 3525076 | Housing, Compressor | 1 | |
| 18 | 3523980 | Slinger, Oil | 1 | |
| 19 | 3524418 | Shim | 1 | |
| 20 | 3524419 | Baffle, Oil | 1 | |
| 21 | 3524863 | Diffuser, Turbocharger | 1 | |
| 22 | 3525073 | Screw, Hexagon Head Set | 4 | M8 X 1.25 X 25 |
| 23 | 3536914/3526985/3523306 | Bearing, Tur Thrust | 1 | |
| 24 | 3527619 | Dataplate | 1 | |
| 25 | 3522631 | Clamp, V Band | 1 | |
| 26 | 3529372 | Nut, Regular Hexagon | 1 | 1/4 – 28 UNF |
| 27 | 3521265 | Housing, Turbine | 1 | |
| 28 | 201048 | Gasket, Connection | 1 | |
| 29 | 3177942 | Gasket, Turbocharger | 1 | |
| 30 | 201049 | Gasket, Connection | 1 | |
| 31 | 3023066 | Seal, O Ring | 2 | |
| 32 | 3023129 | Seal, Dust | 1 | |
| $TURBO REPAIR KIT | ||||
| 3803257 | Kit, Turbo Repair | 1 | ||
| 28 | 201048 | Gasket, Connection | 1 | |
| 22 | 3525073 | Screw, Hexagon Head Set | 4 | M8 X 1.25 X 25 |
| 1 | 3502449 | Seal, Rectangular Ring | 1 | |
| 13 | 3523412 | Seal, Split Ring | 1 | |
| 18 | 3523980 | Slinger, Oil | 1 | |
| 20 | 3524419 | Baffle, Oil | 1 | |
| 19 | 3524418 | Shim | 1 | |
| 23 | 3536914 | Bearing, Tur Thrust | 1 | |
| 5 | 3591522 | Collar, Thrust | 1 | |
| 7 | 3519641 | Ring, Retaining | 4 | |
| 6 | 3519627 | Bearing, Turbocharger | 2 | |
| 11 | 3521442 | Seal, Split Ring | 1 | |
| 15 | 3522597 | Pin, Roll | 2 | |
| 3803452 | Kit, Turbocharger | Recon Equivalent 3803452 RX | ||
| 3594111 | Turbocharger | 1 | Serviced as 3803452 | |
| 1 | 3502449 | Seal, Rectangular Ring | 1 | |
| 2 | 3504967 | Washer, Plain | 4 |
