Прокладка зливного патрубка змазки турбокомпресора Cummins K19, KTA, KTTA, 201049

Прокладка зливного патрубка змазки турбокомпресора Cummins K19, KTA, KTTA, 201049

K / KT / KTA / KTTA / QSK.

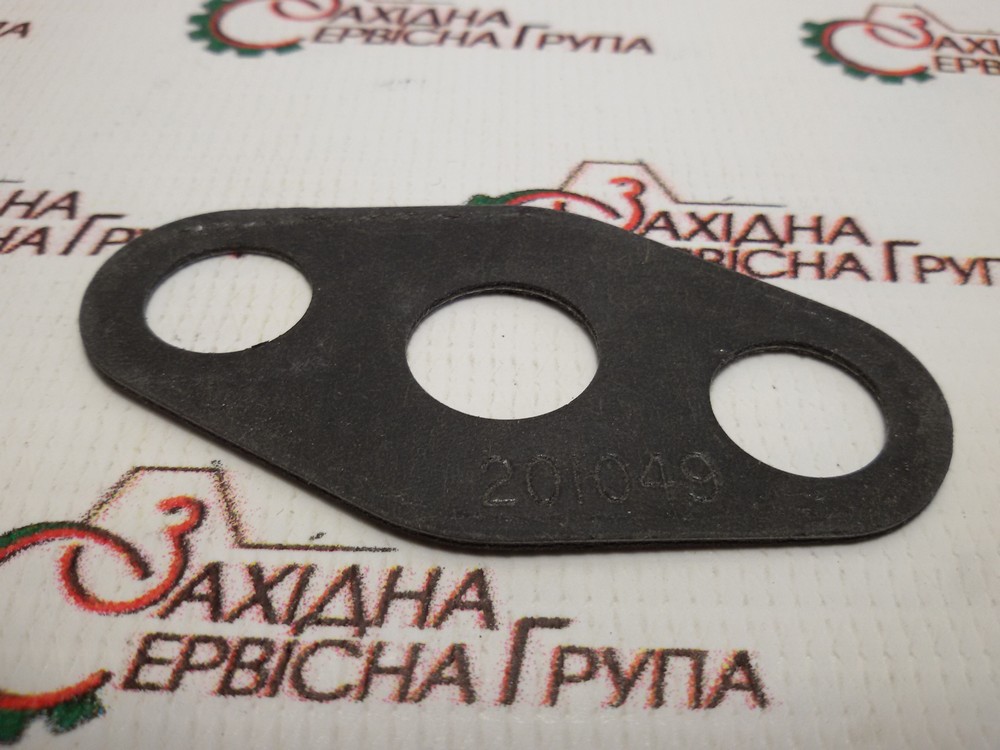

Прокладка зливного патрубка змазки турбокомпресора

Застосування: двигун Cummins KTA19, БелАЗ 7547-7555

Оригінальний номер: 201049

Виробник Cummins made in USA

Gasket, Connection

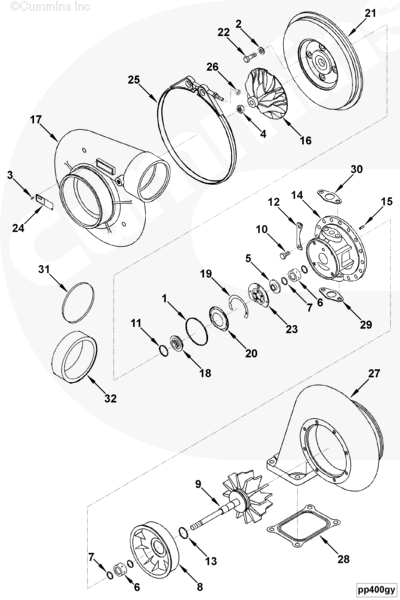

	PP4130-02	Turbocharger		Turbocharger

	3801803	Turbocharger Kit	1	Recon Equivalent 3801803 RX
	3594066	Turbocharger	1	Serviced as 3801803
1	3502449	Rectangular Ring Seal	1
2	3504967	Plain Washer	4	Holset Part Sold Only In Kits
3	3519163	Drive Screw	2
4	3519535	Lock Nut	1	M11 x 1.00
5	3591522	Thrust Collar	1
6	3519627	Turbocharger Bearing	2
7	3519641	Retaining Ring	4
8	3536588	Turbocharger Heat Shield	1
9	3521034	Shaft Wheel Rotor	1
10	3521225	Hexagon Head Set Screw	8	M8 X 1.25 X 16
11	3521442	Split Ring Seal	1
12	3522904	Lock Plate	4
13	3523412	Split Ring Seal	1
14	3594555	Turbocharger Bearing Housing	1
15	3522597	Roll Pin	2
16	3523024	Turbocharger Compressor Impeller	1
17	3525076	Compressor Housing	1
18	3523980	Oil Slinger	1
19	3524418	Shim	1
20	3524419	Oil Baffle	1
21	3524863	Turbocharger Diffuser	1
22	3525073	Hexagon Head Set Screw	4	M8 X 1.25 X 25
23	3536914	Turbocharger Thrust Bearing	1
24	3527619	Dataplate	1
25	3522631	V Band Clamp	1
26	3529372	Regular Hexagon Nut	1	1/4 – 28 UNF
27	3521265	Turbine Housing	1
28	201048	Connection Gasket	1
29	3177942	Turbocharger Gasket	1
30	201049	Connection Gasket	1
31	3023066	O-Ring Seal	2
32	3023129	Dust Seal	1

	3803257	Turbocharger Repair Kit	1
28	201048	Connection Gasket	1
22	3525073	Hexagon Head Set Screw	4	M8 X 1.25 X 25
1	3502449	Rectangular Ring Seal	1
13	3523412	Split Ring Seal	1
18	3523980	Oil Slinger	1
20	3524419	Oil Baffle	1
19	3524418	Shim	1
23	3536914	Turbocharger Thrust Bearing	1
5	3591522	Thrust Collar	1
7	3519641	Retaining Ring	4
6	3519627	Turbocharger Bearing	2
11	3521442	Split Ring Seal	1
15	3522597	Roll Pin	2

	3803452	Turbocharger Kit		Recon Equivalent 3803452 RX
	3594111	Turbocharger	1
1	3502449	Rectangular Ring Seal	1
2	3504967	Plain Washer	4	Holset Part Sold Only In Kits
3	3519163	Drive Screw	2
4	3519535	Lock Nut	1	M11 x 1.00
5	3591522	Thrust Collar	1
6	3519627	Turbocharger Bearing	2
7	3519641	Retaining Ring	4
8	3536588	Turbocharger Heat Shield	1
9	3521034	Shaft Wheel Rotor	1
10	3521225	Hexagon Head Set Screw	8	M8 X 1.25 X 16
11	3521442	Split Ring Seal	1
12	3522904	Lock Plate	4
13	3523412	Split Ring Seal	1
14	3594555	Turbocharger Bearing Housing	1
15	3522597	Roll Pin	2
16	3523546	Turbocharger Compressor Impeller	1
17	3523556	Compressor Housing	1
18	3523980	Oil Slinger	1
19	3524418	Shim	1
20	3524419	Oil Baffle	1
21	3524421	Turbocharger Diffuser	1
22	3525073	Hexagon Head Set Screw	4	M8 X 1.25 X 25
23	3536914	Turbocharger Thrust Bearing	1
24	3527619	Dataplate	1
25	3528109	V Band Clamp	1	Serviced as 3803435
26	3529372	Regular Hexagon Nut	1	1/4 – 28 UNF
27	3529706	Turbine Housing	1
28	3177942	Turbocharger Gasket	1
29	201048	Connection Gasket	1
30	201049	Connection Gasket	1
31	3023066	O-Ring Seal	2
32	3023129	Dust Seal	1

	3803257	Turbocharger Repair Kit	1
28	201048	Connection Gasket	1
22	3525073	Hexagon Head Set Screw	4	M8 X 1.25 X 25
1	3502449	Rectangular Ring Seal	1
13	3523412	Split Ring Seal	1
18	3523980	Oil Slinger	1
20	3524419	Oil Baffle	1
19	3524418	Shim	1
23	3536914	Turbocharger Thrust Bearing	1
5	3591522	Thrust Collar	1
7	3519641	Retaining Ring	4
6	3519627	Turbocharger Bearing	2
11	3521442	Split Ring Seal	1
15	3522597	Roll Pin	2
