Ціна

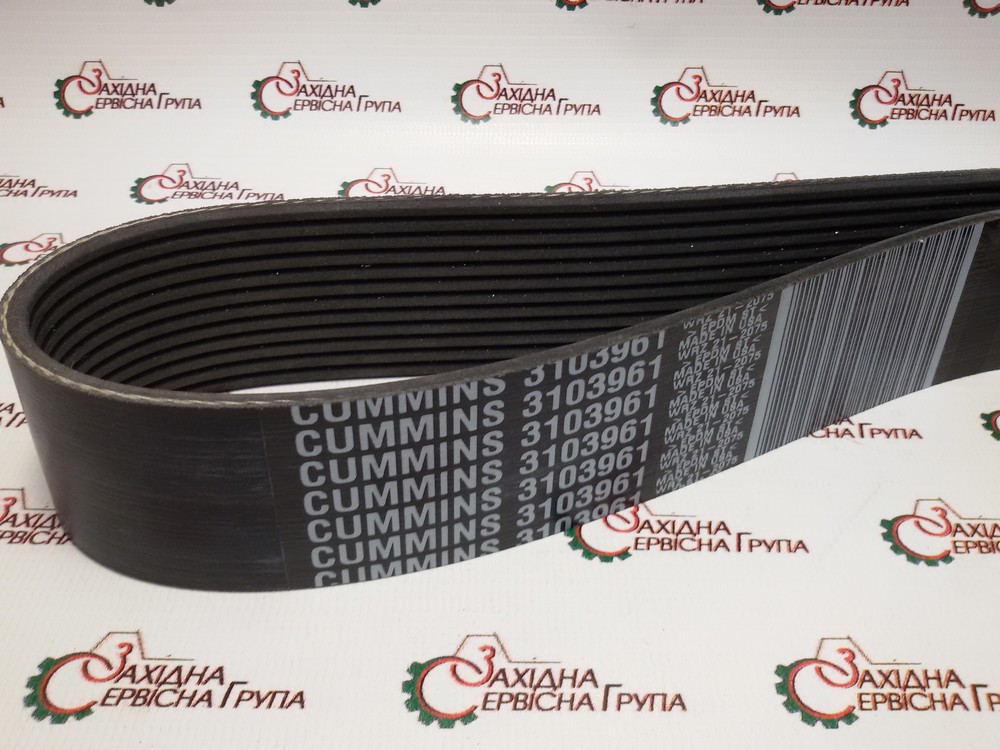

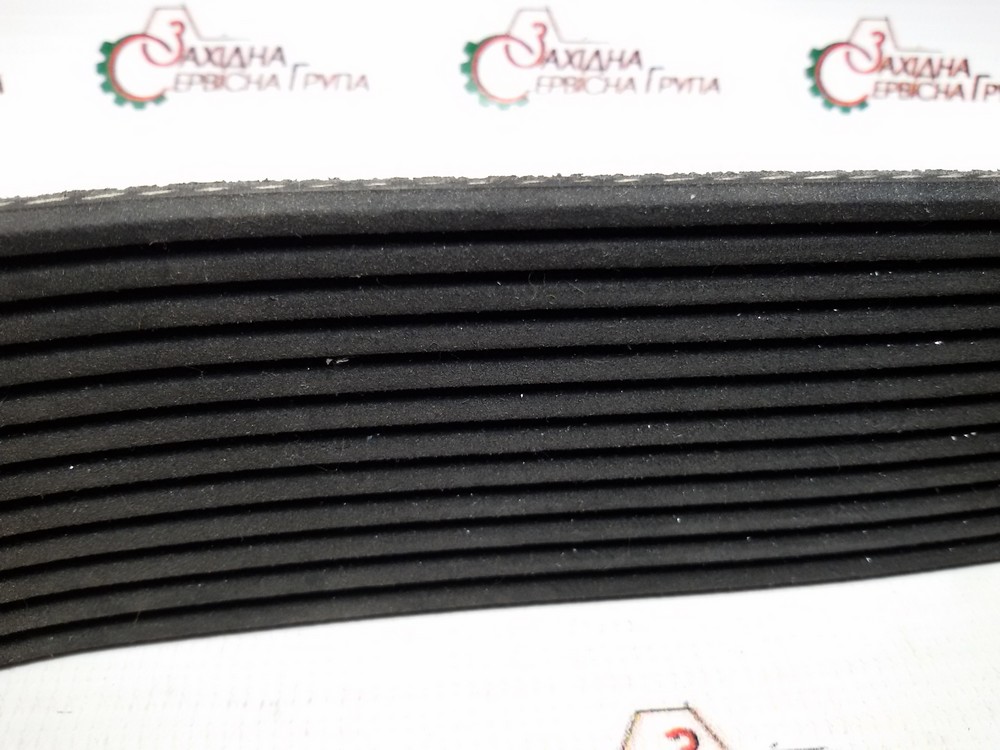

Ремінь генератора і водяного насоса
Застосування: двигун Cummins M11, ISM11, QSM11
Оригінальний номер: 3103961
Виробник Cummins made in USA
V Ribbed Belt
| Ref No | Part Number | Part Description | Required | Remarks | |
| FA2178-07 |
Fan Drive
|
||||
| Fan Drive | |||||
|
Fan Drive: Cummins Supplied
|
|||||
|
Includes Idler Assembly, Fan
|
|||||
|
Hub, Belt and Fan Pulley
|
|||||
|
Mounted to the Engine.
|
|||||
| Fan Hub Type: Continuous | |||||
| Drive | |||||
| Fan Center Distance: 215.9mm | |||||
|
(8.50 in.) Offset 19mm (0.75
|
|||||
|
inch) Toward the Fuel Pump
|
|||||
|
Side of the Engine Centerline
|
|||||
| Fan Drive Ratio: .940:1 | |||||
|
Fan Pulley Diameter: 190.0mm
|
|||||
|
(7.48 in.)
|
|||||
|
Fan Pulley Bolt Circle Dia.:
|
|||||
| 88.90mm (3.5 in.) | |||||
| Pulley Groove Location: | |||||
| 140.0mm (5.51 in.) | |||||
|
Pulley Groove Type: Poly V
|
|||||
| 12 Rib “K” | |||||
|
Max Torque Capability: 135.8
|
|||||
| Nm (100 lb.ft.) | |||||
| Fan Mtg Nomenclature: M10 x | |||||
| 1.5-6H | |||||
|
Pilot Diameter: 50.80mm
|
|||||
| (2 in.) | |||||
|
Belt Tensioner: Manual
|
|||||
|
Fan Hub
|
1
|
||||
|
1
|
Fan Hub Shaft
|
1
|
|||
| 2 | Flange |
1
|
|||
|
3
|
Plain Washer
|
1
|
M10
|
||
|
4
|
Hexagon Head Cap Screw
|
1
|
M10 x 1.50 x 25.
|
||
|
5
|
Fan Hub Cover
|
1
|
|||
|
6
|
Roller Bearing
|
1
|
|||
|
7
|
Oil Seal
|
1
|
|||
|
8
|
Fan Hub
|
1
|
|||
|
9
|
Hexagon Head Cap Screw
|
4
|
M10 x 1.50 x 30
|
||
|
10
|
Fan Support
|
||||
|
11
|
Hexagon Head Cap Screw
|
3
|
M10 x 1.50 x 90
|
||
|
12
|
Hexagon Head Cap Screw
|
1
|
M10 x 1.50 x 145
|
||
|
13
|
Fan Pulley
|
1
|
|||
|
14
|
V Ribbed Belt
|
1
|
|||
|
Pulley , Idler ( Top Level Assembly )
|
1
|
||||
|
15
|
Idler Pulley Cover
|
1
|
|||
|
16
|
O-Ring Seal
|
1
|
|||
| 3254679 |
Idler Pulley
|
1
|
|||
|
17
|
Idler Shaft
|
1
|
|||
|
18
|
Hexagon Head Cap Screw
|
1
|
M10 x 1.50 x 25.
|
||
|
19
|
Oil Seal
|
1
|
|||
|
20
|
Idler Pulley
|
1
|
|||
|
21
|
Plain Washer
|
1
|
M10
|
||
|
22
|
Roller Bearing
|
1
|
|||
|
23
|
Regular Hexagon Nut
|
1
|
M20 x 1.50
|
||
|
24
|
Plain Washer
|
1
|
7/8 inch
|
||
|
25
|
Roll Pin
|
1
|
|||
|
26
|
Plain Washer
|
2
|
M10.
|
