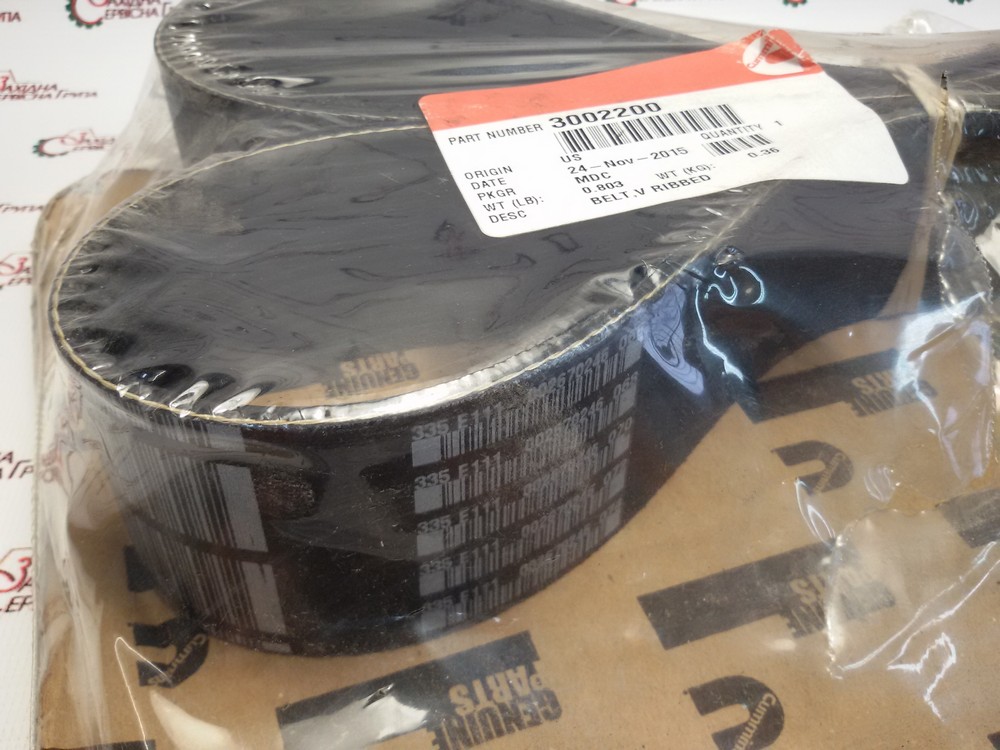

Ремінь вентилятора
Застосування: двигун Cummins K19, БелАЗ 7555
Оригінальний номер: 3002200
Виробник Cummins made in USA
Belt, V Ribbed

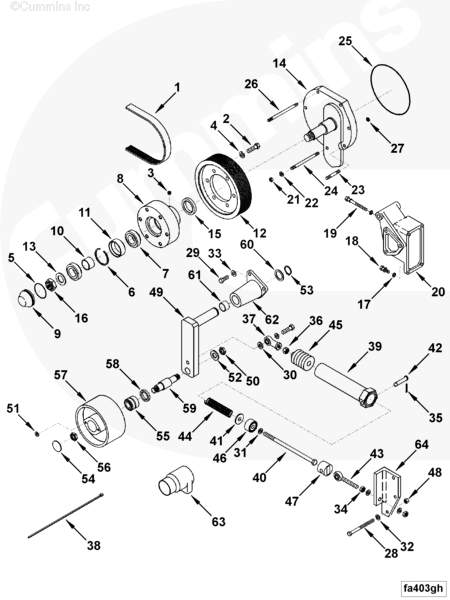

| Ref No | Part Number | Part Description | Required | Remarks | |
| FA4122-06 | Fan Drive | Fan Drive…(More) | |||
| belt driven .85 to 1 drive | |||||
| ratio with 14.5″ fan | |||||
| center. | |||||
| Includes alternator mounting | |||||
| bracket. For mounting engine | |||||
| fan use grade 8 capscrew 1/2- | |||||
| 13 with a minimum of 3/4″ | |||||
| thread engagement in fan hub. | |||||
| Requires 6 capscrews and lock | |||||
| washers. | |||||
|
1
|
V Ribbed Belt
|
1
|
|||
|
Fan Hub
|
1
|
||||
|
2
|
Hexagon Head Cap Screw
|
6
|
1/2 – 13 x 1 1/2 in.
|
||
|
3
|
Pipe Plug
|
2
|
1/8 NPT
|
||
|
4
|
Lock Washer
|
6
|
|||
|
5
|
O-Ring Seal
|
1
|
|||
|
6
|
Retaining Ring
|
1
|
|||
|
7
|
Roller Bearing
|
2
|
|||
|
8
|
Fan Hub
|
1
|
|||
|
9
|
Fan Hub Cover
|
1
|
|||
|
10
|
Bearing Spacer
|
1
|
|||
|
11
|
Bearing Spacer
|
1
|
|||
|
12
|
Fan Pulley
|
1
|
|||
|
13
|
Plain Washer
|
1
|
1 1/8 in.
|
||
|
14
|
Fan Spindle
|
1
|
|||
|
15
|
Oil Seal
|
1
|
|||
|
16
|
Lock Nut
|
1
|
1 1/8 – 12 UNF
|
||
|
Alternator Support
|
1
|
||||
|
17
|
Plain Washer
|
4
|
3/8 in.
|
||
|
18
|
Captive Washer Cap Screw
|
2
|
3/8 – 16 x 1 1/4 in.
|
||
|
19
|
Captive Washer Cap Screw
|
2
|
3/8 – 16 X 3 3/4 in.
|
||
|
20
|
Alternator Support
|
1
|
|||
| 3200798 | Fan Mounting Hub |
1
|
|||
|
21
|
Regular Hexagon Nut
|
7
|
3/8 – 24 UNF.
|
||
|
22
|
Lock Washer
|
7
|
3/8 in.
|
||
|
23
|
Double End Plain Stud
|
2
|
|||
|
24
|
Double End Plain Stud
|
4
|
|||
|
25
|
O-Ring Seal
|
1
|
|||
|
26
|
Double End Plain Stud
|
1
|
|||
|
27
|
Rectangular Ring Seal
|
1
|
|||
| 4009177 | Belt Tensioner |
1
|
|||
|
2
|
Hexagon Head Cap Screw
|
1
|
1/2 – 13 x 1 1/2 in.
|
||
|
28
|
Hexagon Head Cap Screw
|
3
|
3/8 – 16 X 4 1/2 in
|
||
|
29
|
Hexagon Head Cap Screw
|
3
|
|||
|
30
|
Plain Washer
|
1
|
1/2 in
|
||
|
31
|
Plain Washer
|
1
|
1/2 in.
|
||
|
32
|
Plain Washer
|
3
|
3/8 in.
|
||
|
33
|
Plain Washer
|
3
|
3/8 in.
|
||
|
Belt Tensioner
|
1
|
||||
|
31
|
Plain Washer
|
5
|
1/2 in.
|
||
|
34
|
Regular Hexagon Jam Nut
|
2
|
1/2 – 20 UNF
|
||
|
35
|
Cotter Pin
|
1
|
|||
|
36
|
Regular Hexagon Nut
|
1
|
1/2 – 20 UNF
|
||
|
37
|
Control Rod End
|
1
|
|||
|
38
|
Wire Tie Clamp
|
2
|
|||
|
39
|
Belt Tensioner Housing
|
1
|
|||
| 40 | Hexagon Head Cap Screw | 1 | |||
|
41
|
Spring Retainer
|
1
|
|||
|
42
|
Clevis Pin
|
1
|
|||
|
43
|
Control Rod End
|
1
|
M12 X 2.00 X 10
|
||
|
44
|
Compression Spring
|
1
|
|||
|
45
|
Dust Seal
|
1
|
|||
|
46
|
Spring Guide
|
1
|
|||
|
47
|
Control Rod Retainer
|
1
|
|||
|
48
|
Regular Hexagon Nut
|
3
|
3/8 – 16 UNC.
|
||
|
Idler Lever
|
1
|
||||
|
38
|
Wire Tie Clamp
|
2
|
|||
|
49
|
Idler Lever
|
1
|
|||
|
50
|
Regular Hexagon Jam Nut
|
1
|
3/4 – 16 UNF
|
||
|
51
|
Plain Washer
|
2
|
5/16 in.
|
||
|
52
|
Plain Washer
|
1
|
3/4 in.
|
||
|
53
|
Retaining Ring
|
1
|
|||
|
54
|
Expansion Plug
|
1
|
|||
|
55
|
Roller Bearing
|
1
|
|||
|
56
|
Lock Nut
|
1
|
3/4 – 16 UNF
|
||
|
57
|
Idler Pulley
|
1
|
|||
|
58
|
Oil Seal
|
1
|
|||
|
59
|
Idler Shaft
|
1
|
|||
|
60
|
Plain Washer
|
1
|
|||
|
Pivot Shaft Support
|
1
|
||||
|
61
|
Bushing
|
2
|
|||
|
62
|
Pivot Shaft Support
|
1
|
|||
|
63
|
Dust Seal
|
1
|
|||
|
64
|
Belt Tensioner Bracket
|
1
|
