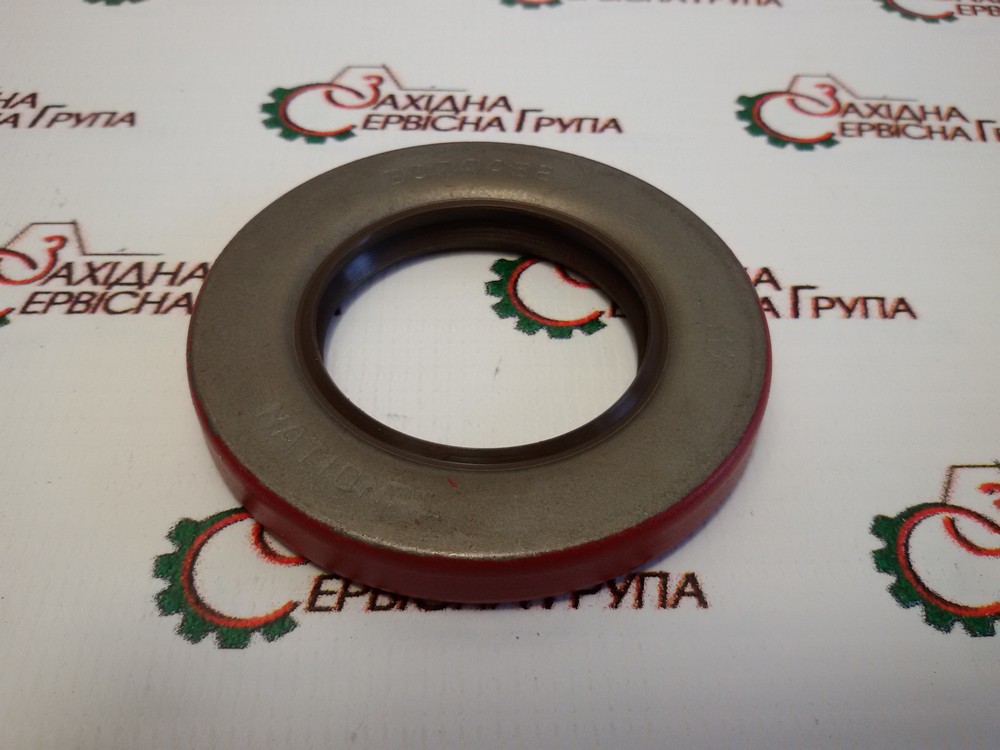

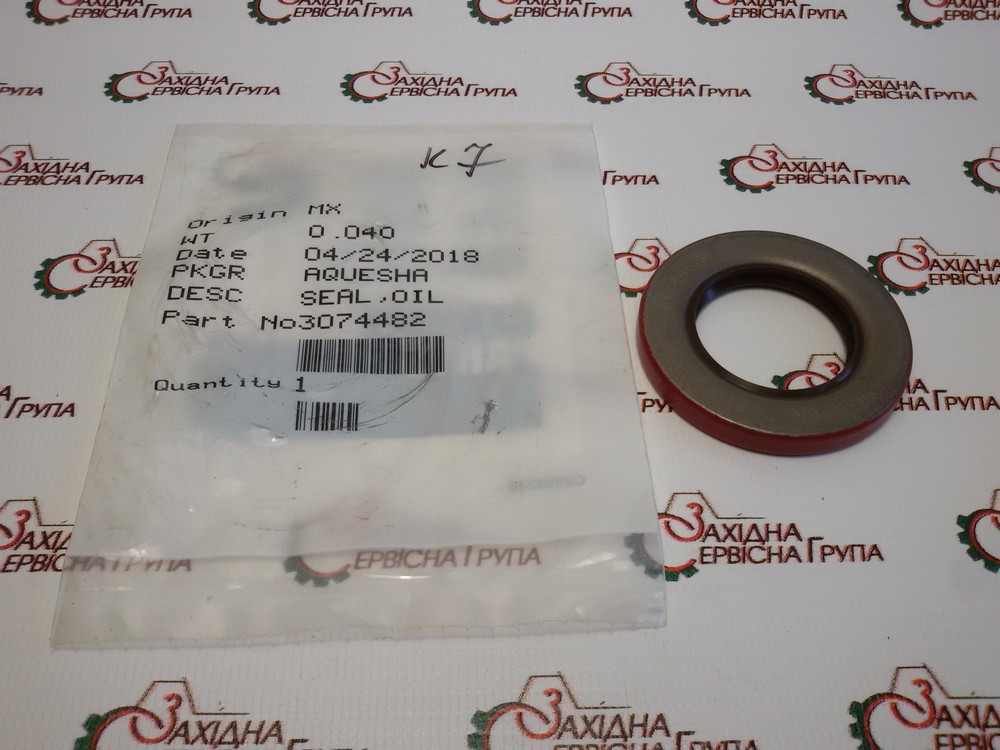

Сальник проміжного ролика ременя герератора Cummins ISX, QSX, 3074482
Ущільнення підтримуючого ролика ременя генератора
Застосування: двигун Cummins ISX15, QSX15, CASE STX/STEIGER/450-535, New Holland TJ/T9000, BUHLER VERSATILE 435/485/535, WIRTGEN W200/WR240/WR250
Оригінальний номер: 3074482
Виробник Cummins made in USA
Seal, Oil

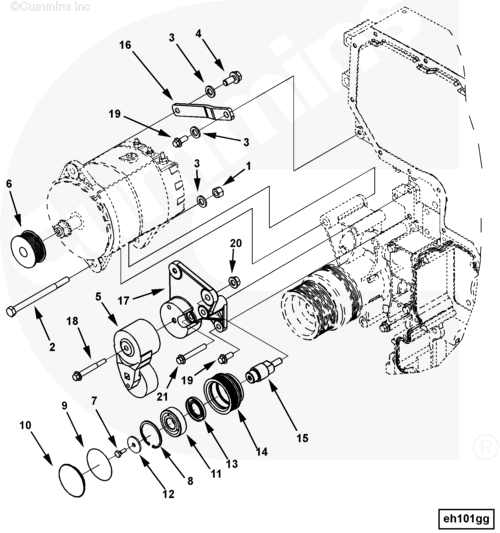

| Ref No | Part Number | Part Description | Required | Remarks | |
| EH1083-08 | Alternator Mounting | ||||
| Alternator Mounting | |||||
|
Alternator Quantity: One
|
|||||
|
For Use With: Alternators
|
|||||
| With Body Diameters Less Than | |||||
|
152.4mm (6.0 inch) Such as
|
|||||
|
Bosch N1, Delco 20SI, or
|
|||||
| Delco 22SI | |||||
|
Maximum Alternator Output:
|
|||||
|
135 Amps/12 Volt or
|
|||||
|
70 Amps/24 Volt mounting
|
|||||
| Mounting Location: Right | |||||
| Side | |||||
|
Drive Location: Water Pump
|
|||||
|
Pulley
|
|||||
| Alternator Pulley Supplied: | |||||
| On Engine | |||||
| Altitude Pulley Diameter: | |||||
| 67.99mm (2.68 in) | |||||
| Altitude Pulley Groove: Poly | |||||
| Vee 6 Rib “K” | |||||
| Belt Tensioner: Automatic | |||||
| Required Drive Pulley | |||||
| Diameter: 103.63mm (4.08 in) | |||||
| Bracket Attachment Method: | |||||
|
Spool
|
|||||
|
Horizontal Attachment
|
|||||
|
Point: 322mm (12.68 in)
|
|||||
|
Vertical Attachment Point:
|
|||||
|
210mm (8.27 in)
|
|||||
|
Front Face of Block to First
|
|||||
| Groove: 133.16mm (5.24 in) | |||||
|
Belt Supplied: Yes
|
|||||
|
Drive Ratio: 3.06:1
|
|||||
|
Additional Information:
|
|||||
|
For Use With Sanden
|
|||||
|
Refrigerant Compressor Model
|
|||||
|
SD7 H15
|
|||||
|
1
|
Lock Nut
|
1
|
1/2 – 20 UNF
|
||
|
2
|
Hexagon Head Cap Screw
|
1
|
1/2 – 20 x 6 1/2 inch
|
||
|
3
|
Plain Washer
|
2
|
1 inch
|
||
|
4
|
Captive Washer Cap Screw
|
1
|
1/2 – 13 X 1 1/4 Inch.
|
||
|
5
|
Belt Tensioner
|
1
|
|||
|
6
|
Alternator Pulley
|
1
|
|||
|
Pulley , Idler Top Level Assembly
|
1
|
Recon equivalent 3680196 NX
|
|||
|
7
|
Hexagon Head Cap Screw
|
1
|
5/16 – 18 X 3/4 in.
|
||
|
8
|
Retaining Ring
|
1
|
|||
|
9
|
O-Ring Seal
|
1
|
|||
|
10
|
Idler Pulley Cover
|
1
|
|||
|
11
|
Ball Bearing
|
1
|
|||
|
12
|
Plain Washer
|
1
|
M12
|
||
|
13
|
Oil Seal
|
1
|
|||
|
14
|
Idler Pulley
|
1
|
|||
|
15
|
Idler Shaft
|
1
|
|||
|
16
|
Adjusting Link
|
1
|
|||
|
17
|
Belt Tensioner Support
|
1
|
|||
|
18
|
Hexagon Flange Head Cap Screw
|
1
|
M10 x 1.50 x 80
|
||
|
19
|
Hexagon Flange Head Cap Screw
|
2
|
M10 X 1.50 X 25.
|
||
|
20
|
Hexagon Flange Nut
|
1
|
M12 X 1.75.
|
||
|
21
|
Hexagon Flange Head Cap Screw
|
2
|
M10 X 1.50 X 70.
|
