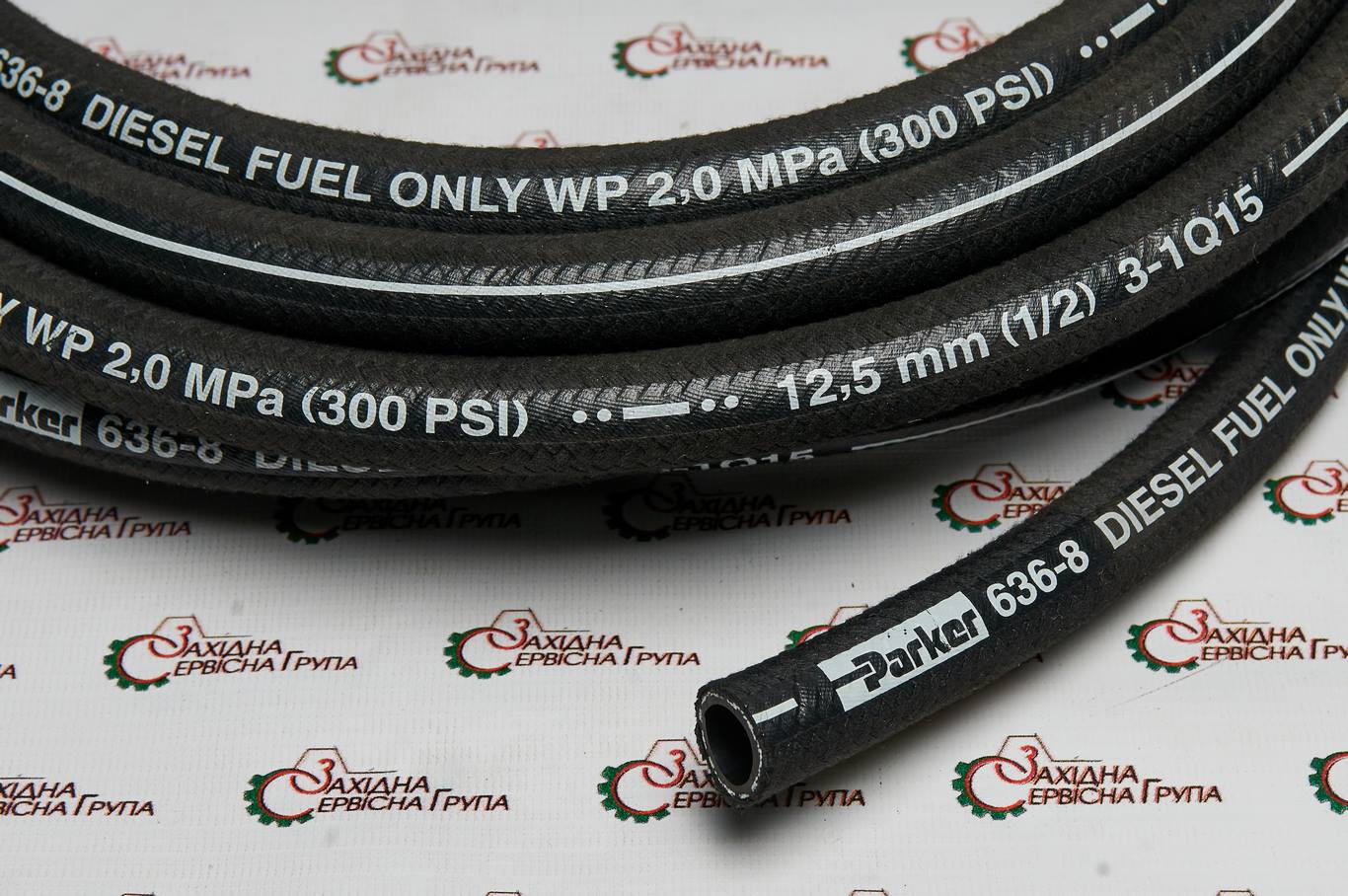

Шланг паливний зливний CNH (CASE/NEW HOLAND), 32-080T1, 87438352, 87438353, 32-80, 32-80T1, 84394767
Шланг паливний обратки
Застосування: трактор CASE STX/STEIGER 450-535, NEW HOLLAND TJ375 – TJ530 / T9010 – T9060
Оригінальний номер: 32-080T1, 87438352, 87438353, 32-80, 32-80T1, 84394767
Виробник: CNH
HOSE 5600 mm (221 in), Cold Return, Cut From 32-080T1
| 1 | 1 | 217-1226 | ELBOW 90º, 1/2″-14 Male |
| 2 | 2 | 31-1267 | SHUT-OFF VALVE |
| 3 | 1 | 218-445 | HYD CONNECTOR 7/8″-14, 37º x 1/2″-14, NPTF |
| 4 | 1 | 31-2976 | FITTING 7/8 fem sw x 31/64 barb, Socketless |
| 5 | 1 | 217-186 | FITTING 45º, 1/2″ Hose x 1/2″ NPTF Beaded |
| 6 | 7 | 895-11010 | WASHER M10 x 20 x 2 |
| 7 | 1 | 296077A1 | HOSE 3657 mm (144 in), Supply, Cut From 50-3418X1 |
| 8 | 1 | 372913A1 | FUEL HOSE 12.70 mm ID, FUEL HOSE 12.70 mm ID – 2387 mm (94 in), Hot Return, Cut from 32-080T1 |
| 9 | 1 | 327144A1 | CLAMP |
| 10 | 4 | L101181 | CLAMP |
| 11 | 3 | 627-8035 | BOLT Hex, M8 x 35, 10.9 |
| 12 | 7 | 895-11008 | WASHER M8 x 16 x 1.6 |
| 13 | 3 | 832-10408 | LOCK NUT M8 x 1.25, Cl 8 |
| 14 | 1 | 87332463 | COOLER Fuel |
| 15 | 3 | 515-23159 | CLAMP 5/8″, Insul, 3/8″ Bolt |
| 16 | 4 | 627-8020 | BOLT Hex, M8 x 20, 10.9 |
| 17 | 1 | 31-3129 | ADAPTER 7/8 |
| 18 | 1 | 310715A1 | HOSE 5600 mm (221 in), Cold Return, Cut From 32-080T1 |
| 19 | 3 | 515-23190 | CLAMP 3/4″, Insul, 3/8″ Bolt |
| 20 | 4 | R54363 | CLAMP |
| 21 | 2 | 324089A1 | PLATE ASSY. |
| 22 | 1 | 335041A2 | LINE Crossover |
| 23 | 1 | 31-1000 | TEE 1/2 PT x 1/2 PT x 7/8 fl |
| 24 | 1 | 217-1072 | HYD CONNECTOR 1/2″-14 NPTF |
| 25 | 1 | 90-7732T1 | BREATHER |
| 26 | 2 | 352767A1 | FITTING |
| 27 | 1 | 402800A1 | BRACKET |
| 28 | 1 | 627-6016 | BOLT Hex, M6 x 16, 10.9 |
| 29 | 2 | 248-2178 | GROMMET 3/4″ ID x 1 1/16″ Groove Dia |
| 30 | 6 | 829-1410 | NUT M10, Cl 10 |
| 31 | 4 | 337248A1 | O-RING 12.293mm ID x 3.531mm Width |
| 32 | 1 | 337240A1 | FUEL HOSE 6.35 mm ID x 1206.00 mm, Sight Gauge, Cut From 337242A1 |
| 33 | 1 | 349868A1 | CHANNEL Sight Gauge |
| 34 | 1 | 895-11006 | WASHER M6 |
| 35 | 2 | 844-10035 | BOLT Hex Flg, M10 x 35, 8.8 |
| 36 | 6 | 895-15008 | WASHER M8 x 20 x 1.6 |
| 37 | 4 | A27328 | SPACER |
| 38 | 2 | 827-8060 | BOLT Hex, M8 x 60, 10.9 |
| 39 | 4 | 214-1406 | HOSE CLAMP #06, .44/.78 Type F Worm |
| 40 | 1 | 217-144 | ELBOW 45º, 5/8″ Hose x 1/2″ NPTF Beaded |
| 41 | 1 | NSS | NOT SERVICED SEPARATELY Housing, Filter |
| 42 | 1 | 369844A1 | DRAINCOCK/TAP SUPPLY Valve |
| 43 | 2 | 217-349 | ELBOW 90º, 5/8″ Hose x 7/8″-14 ORB Beaded, Incl 44 |
| 44 | 2 | 237-6010 | O-RING 0.239″ ID x 0.379″ OD x 0.07″ |
| 45 | 4 | 895-11008 | WASHER M8 x 16 x 1.6 |
| 46 | 2 | 614-8020 | BOLT Hex, M8 x 20, 8.8 |
| 47 | 2 | 829-1408 | NUT M8, Cl 10 |
| 48 | 4 | 214-1408 | HOSE CLAMP #08, 0.50/0.91 Type F Worm |
| 49 | 1 | 832-10410 | LOCK NUT M10 x 1.5, Cl 8 |
| 50 | 1 | 827-8090 | BOLT Hex, M8 x 90, 10.9 |
| 51 | 1 | 214-1406 | HOSE CLAMP #06, .44/.78 Type F Worm |
| 52 | 1 | 32-204 | HOSE Drain |
| 53 | 1 | 87333679 | SPRING Filter Frame |
| 54 | 1 | 87409379 | FUEL FILTER Fuel, 30 Micron |
| 55 | 1 | 87333676 | GASKET Fuel Strainer |
| 56 | 1 | 87331930 | GASKET |
| 57 | 1 | 87333671 | RING Retainer |
| 58 | 1 | 369843A1 | GASKET 10.5mm ID x 2.5mm Width |
| 59 | 1 | 87409380 | FILTER Bowl, Clear |
| 60 | 1 | 87313728 | FUEL HOSE 485 mm (19″) |
| 61 | 4 | 87608457 | SPECIAL BOLT |
