Ціни на запчастини не вказані на сайті. Для уточнення ціни сформуйте та відправте замовлення або зателефонуйте менеджеру.

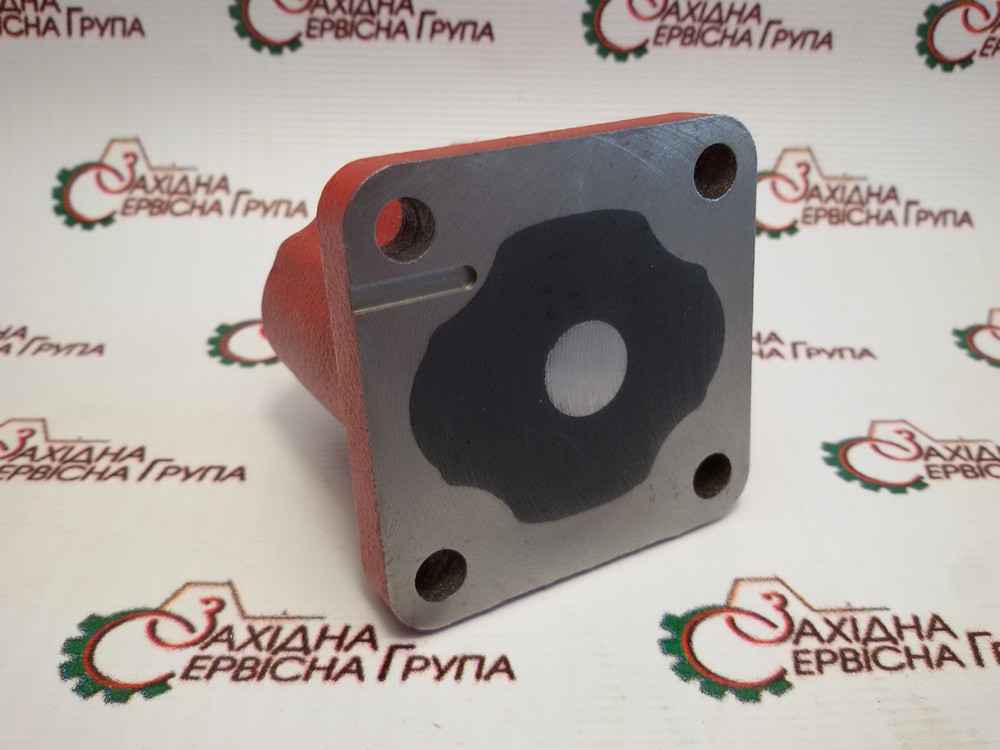

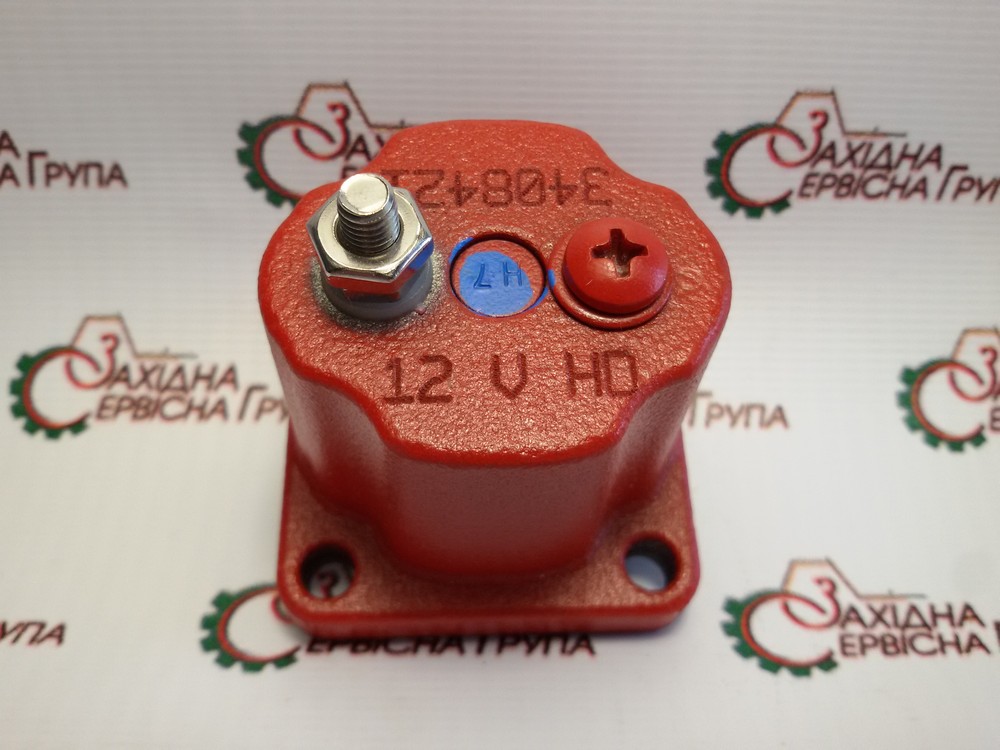

Соленоїд відсікання палива 12V Cummins ISX15, QSX15, 4024808, 3408421, 3054608, 209940.
Соленоїд клапан гулшилка 12В
Застосування: двигун Cummins ISX15, QSX15, QSM11, CASE STX/STEIGER/450-535, New Holland TJ/T9000, BUHLER VERSATILE 2375/2400/435/485/535, HYUNDAI ROBEX 500LC-7, WIRTGEN W200/WR240/WR250
Оригінальний номер: 4024808, 3408421, 3054608, 209940
Виробник Cummins made in USA.
Solenoid Cummins ISX15, QSX15
| 4088505 | Fuel Control Module | 1 | ||
| 1 | 70704 | Plain Washer | 4 | 1/4 in. |
| 2 | 100099 | Rectangular Ring Seal | 2 | |
| 3 | 129768 | Valve Spring | 1 | |
| 4 | 129839 | Shut-Off Valve Shield | 1 | |
| 5 | 129888 | Rectangular Ring Seal | 2 | |
| 6 | 139988 | Rectangular Ring Seal | 2 | |
| 7 | 151900 | Rectangular Ring Seal | 2 | |
| 8 | 160514 | Plain Washer | 2 | 1 11/16 in. |
| 9 | 196057 | Valve Disc | 1 | |
| 10 | 202897 | Fuel Pump Damper Diaphragm | 2 | |
| 11 | 3025806 | Socket Head Cap Screw | 4 | M8 X 1.25 X 30. |
| 12 | 4088863 | Actuator Housing | 1 | |
| 13 | 4088274 | Actuator Disc | 1 | |
| 14 | 4902789 | Actuator Gasket | 4 | |
| 15 | ||||
| 3100221 | Coupling Nipple | 2 | ||
| 16 | 3100290 | Quick Disconnect Connector | 1 | |
| 17 | 3678912 | O-Ring Seal | 1 | M14 |
| 18 | 4076472 | Socket Head Cap Screw | 12 | |
| 19 | 3330651 | Fuel Pump Damper Cover | 2 | |
| 20 | 3330652 | Fuel Pump Damper Body | 2 | |
| 21 | 4076471 | Socket Head Cap Screw | 4 | M5 X 0.80 X 30 |
| 3331873 | Male Union | 1 | ||
| 22 | 3331838 | Male Union | 2 | |
| 23 | 3627695 | O-Ring Seal | 2 | |
| 24 | 3678786 | O-Ring Seal | 1 | M18 |
| 3348322 | Pressure Regulator Valve | 1 | ||
| 25 | 3348323 | Pressure Regulator Valve | 1 | |
| 26 | 3348703 | O-Ring Seal | 1 | |
| 27 | 3867640 | O-Ring Seal | 1 | |
| 28 | 4088450 | Hexagon Flange Head Cap Screw | 4 | |
| 29 | 3408421 | Solenoid | 1 | Serviced As 4024808. |
| 3417138 | Male Adapter Elbow | 1 | ||
| 30 | 3417139 | Male Adapter Elbow | 1 | |
| 31 | 3679139 | O-Ring Seal | 1 | |
| 4088806 | Threaded Plug | 6 | ||
| 32 | 4088802 | Threaded Plug | 5 | |
| 17 | 3678912 | O-Ring Seal | 5 | M14 |
| 3681694 | Male Union | 1 | ||
| 33 | 3089240 | O-Ring Seal | 1 | M22 |
| 34 | 3681110 | Male Union | 1 | |
| 3865346 | Temperature Sensor | Coolant Or Oil Or Fuel. | ||
| 35 | 4088751 | Temperature Sensor | 1 | |
| 36 | 4010519 | O-Ring Seal | 1 | |
| 37 | 3867481 | O-Ring Seal | 1 | |
| 38 | 3902023 | Hexagon Flange Head Cap Screw | 2 | M6 X 1.00 X 25 |
| 4009956 | Pressure Regulator Valve | 1 | ||
| 39 | 3330478 | O-Ring Seal | 1 | |
| 40 | 3867641 | O-Ring Seal | 1 | |
| 41 | 4009957 | Pressure Regulator Valve | 1 | |
| 4010077 | Check Valve | 1 | ||
| 33 | 3089240 | O-Ring Seal | 1 | M22 |
| 42 | 4010078 | Check Valve | 1 | |
| 4088807 | Threaded Plug | 1 | ||
| 43 | 4088803 | Threaded Plug | 1 | |
| 24 | 3678786 | O-Ring Seal | 1 | M18 |
| 44 | 4902906 | Metering Actuator | 2 | Serviced as 4089985. |
| 45 | 4902907 | Timing Actuator | 2 | Serviced as 4089986. |
| 46 | 4062005 | Support Gasket | 1 | |
| 47 | 4921791/4076845 | Fuel Control Housing | 1 | |
| 48 | 4076848 | Fuel Pump Gasket | 1 | |
| 49 | 4088847/4089163/4076856 | Gear Fuel Pump | 1 | |
| 4088507 | Топливный насос | 1 | ||
| 50 | 4935013 | Топливоперекачивающий насос | 1 | |
| 58 | 4088506 | Transfer Pump Support | 1 | |
| 59 | 3964385 | Fuel Pump Gasket | 1 | |
| 60 | 4088512 | Socket Head Cap Screw | 3 | |
| 51 | 4076858 | Socket Head Cap Screw | 4 | |
| 52 | 105375 | Паспортная табличка | 1 | |
| 4921519/4087993/4921737/4087994 | Pressure Sensor | 1 | fuel. | |
| 36 | 4010519 | O-Ring Seal | 1 | |
| 53 | 4087994 | Pressure Sensor | 1 | |
| 54 | S 2286 | Drive Screw | 2 | 3/16 in. |
| 55 | 3896408 | Hexagon Flange Head Cap Screw | 2 | M10 x 1.50 x 80 |
| 56 | 3903464 | Hexagon Flange Head Cap Screw | 3 | M10 X 1.50 X 40. |
| 57 | 4965689/4076587/3348526 | Fuel Control Housing Gasket | 1 | |
| 4089162 | Kit , Ifsm | 1 | ||
| 5 | 129888 | Rectangular Ring Seal | 2 | |
| 7 | 151900 | Rectangular Ring Seal | 2 | |
| 17 | 3678912 | O-Ring Seal | 8 | M14 |
| 23 | 3627695 | O-Ring Seal | 1 | |
| 24 | 3678786 | O-Ring Seal | 2 | M18 |
| 26 | 3348703 | O-Ring Seal | 1 | |
| 27 | 3867640 | O-Ring Seal | 1 | |
| 31 | 3679139 | O-Ring Seal | 1 | |
| 33 | 3089240 | O-Ring Seal | 2 | M22 |
| 36 | 4010519 | O-Ring Seal | 2 | |
| 37 | 3867481 | O-Ring Seal | 1 | |
| 39 | 3330478 | O-Ring Seal | 1 | |
| 40 | 3867641 | O-Ring Seal | 1 | |
| 46 | 4062005/2872195/4954472 | Support Gasket | 1 | |
| 47 | 4076845 | Fuel Control Housing | 1 | |
| 48 | 4076848 | Fuel Pump Gasket | 1 | |
| 52 | 105375 | Паспортная табличка | 1 | |
| 54 | S 2286 | Drive Screw | 2 | 3/16 in. |
| 57 | 4076587 | Fuel Control Housing Gasket | 1 | |
| 4089163 | Gear Fuel Pump Kit | 1 | ||
| 37 | 3867481 | O-Ring Seal | 1 | |
| 46 | 4062005 | Support Gasket | 1 | |
| 49 | 4076856 | Gear Fuel Pump | 1 | |
| 4089986 | Actuator Kit | 1 | ||
| 45 | 4089986/4902907 | Timing Actuator | 1 | Serviced as 4089986. |
| 14 | 4902789 | Actuator Gasket | 1 | |
| 4954670 | Pan Head Cap Screw | 3 | M6 X 1.00 | |
| 4089985 | Actuator Kit | 1 | ||
| 44 | 4089985/4902906 | Metering Actuator | 1 | Serviced as 4089985. |
| 14 | 4902789 | Actuator Gasket | 1 | |
| 4954670 | Pan Head Cap Screw | 3 | M6 X 1.00 | |
| 4024808 | Fuel Solenoid Kit | |||
| 5 | 129888 | Rectangular Ring Seal | 2 | |
| 29 | 3408421 | Solenoid | 1 | Serviced As 4024808. |
