Ціна

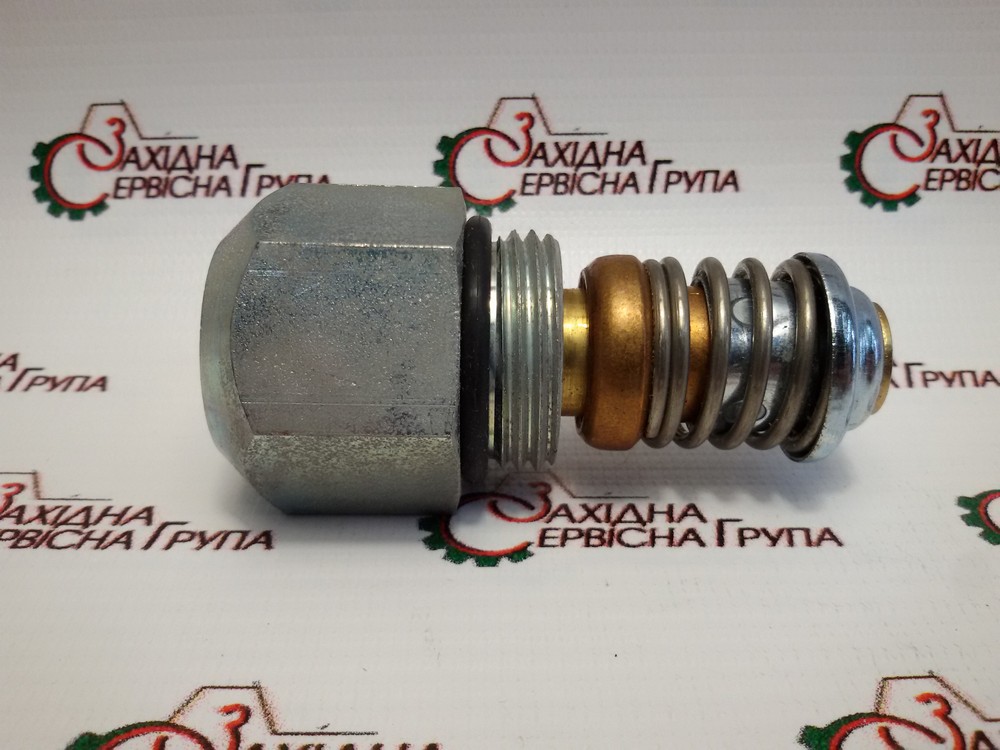

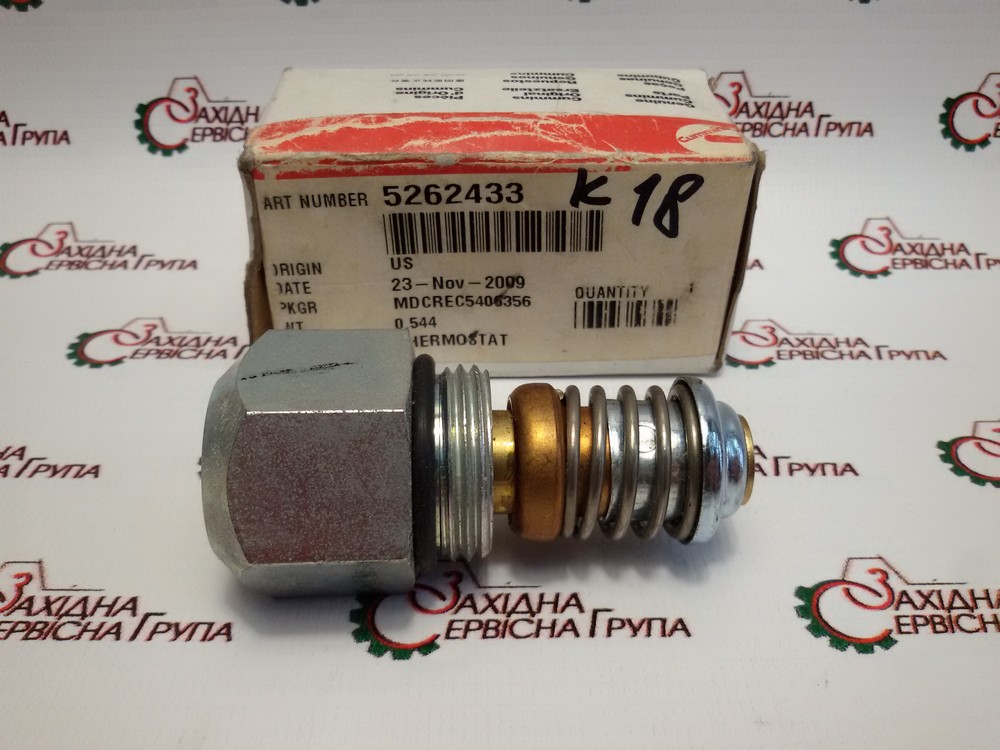

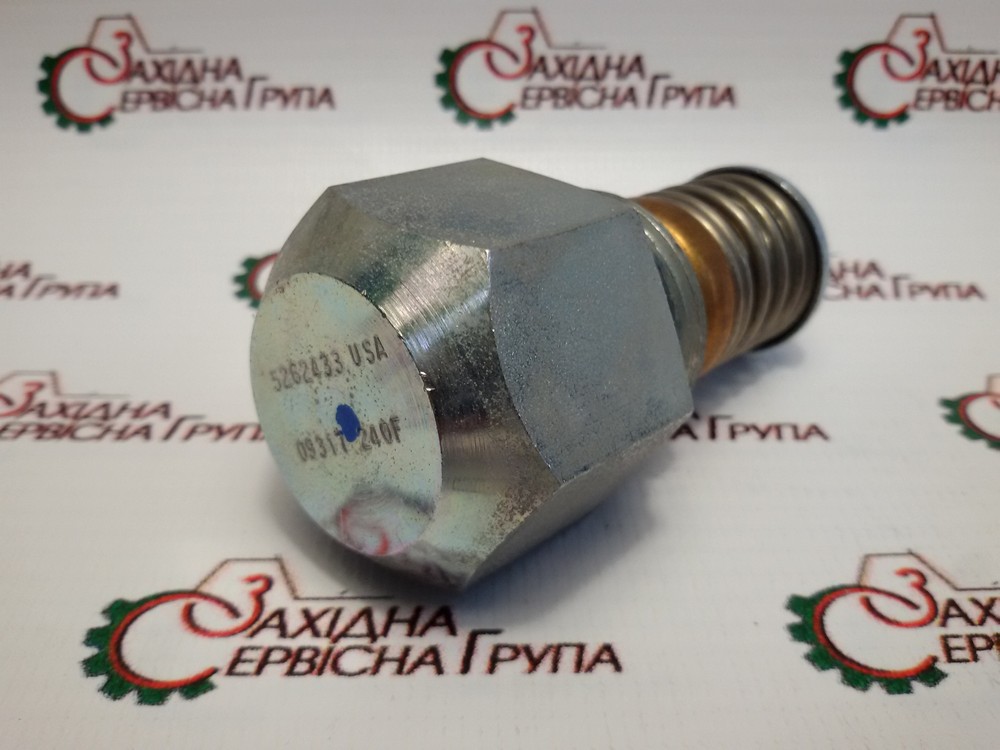

Термостат системи охолодження масла
Застосування: двигун Cummins C8.3, QSC8.3, QSL9
Оригінальний номер: 5262433, 5288991, 5337769
Виробник Cummins made in USA
Thermostat

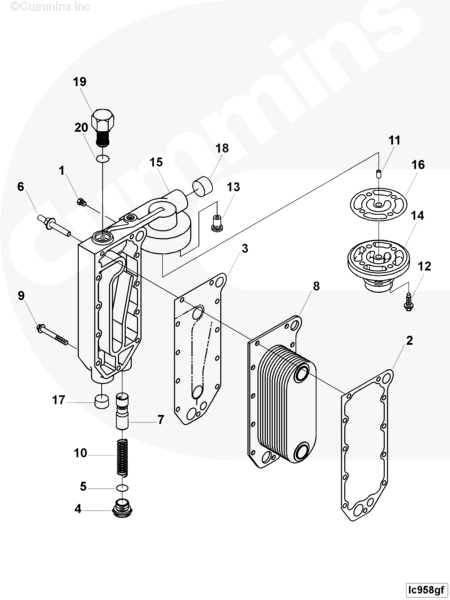

| Ref No | Part Number | Part Description | Required | Remarks | |
|
Engine Oil Cooler
|
|||||
|
1
|
Pipe Plug
|
1
|
1/8 NPT.
|
||
|
2
|
Oil Cooler Core Gasket
|
1
|
|||
|
3
|
Lubricating Oil Cooler Cover Gasket
|
1
|
|||
|
Threaded Plug
|
1
|
||||
|
4
|
Threaded Plug
|
1
|
|||
|
5
|
O-Ring Seal
|
1
|
|||
|
6
|
Studded Flange Cap Screw
|
4
|
|||
|
7
|
Pressure Regulator Plunger
|
1
|
Use W/Dump to Sump ISL Block.
|
||
|
8
|
Cooler Core
|
1
|
|||
|
9
|
Hexagon Flange Head Cap Screw
|
7
|
M8 x 1.25 x 65
|
||
|
10
|
Compression Spring
|
1
|
|||
|
Lubricating Oil Filter Head
|
1
|
||||
|
11
|
Ring Dowel
|
1
|
|||
|
12
|
Hexagon Flange Head Cap Screw
|
1
|
M8 x 1.25 x 25
|
||
|
13
|
Pressure Relief Valve
|
1
|
|||
| 14 |
Lubricating Oil Filter Head
|
1
|
|||
|
15
|
Lubricating Oil Cooler Cover
|
1
|
|||
|
16
|
Connection Gasket
|
1
|
|||
|
17
|
Pipe Plug
|
1
|
1/2 NPT
|
||
|
18
|
Pipe Plug
|
1
|
3/4 NPT
|
||
|
19
|
Thermostat
|
1
|
|||
|
20
|
O-Ring Seal
|
1
|
