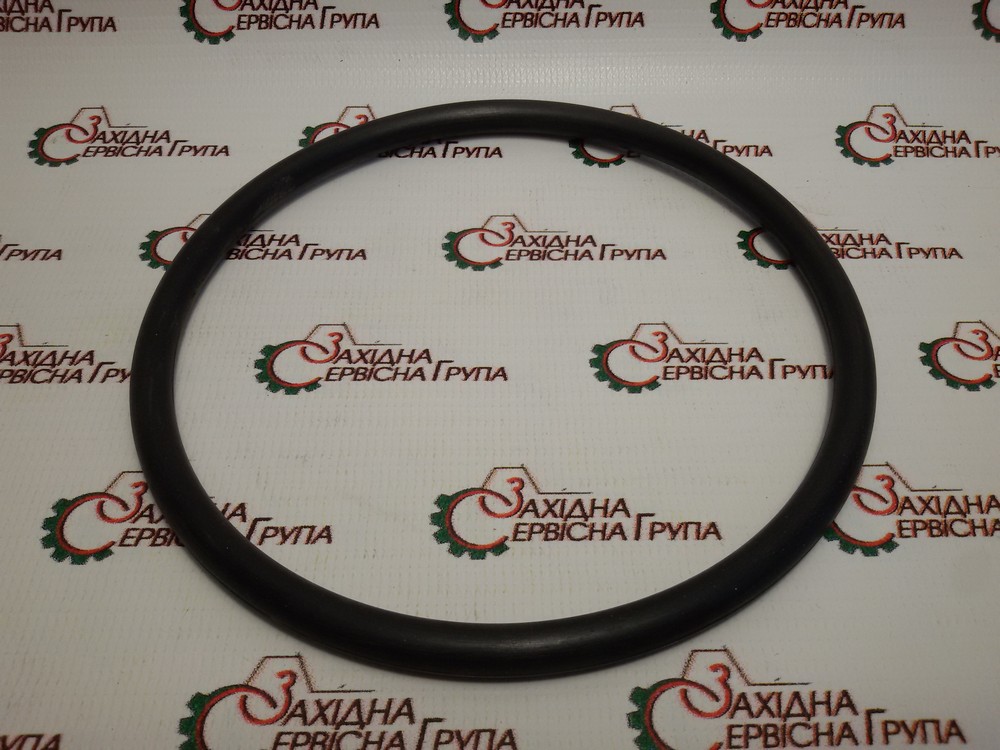

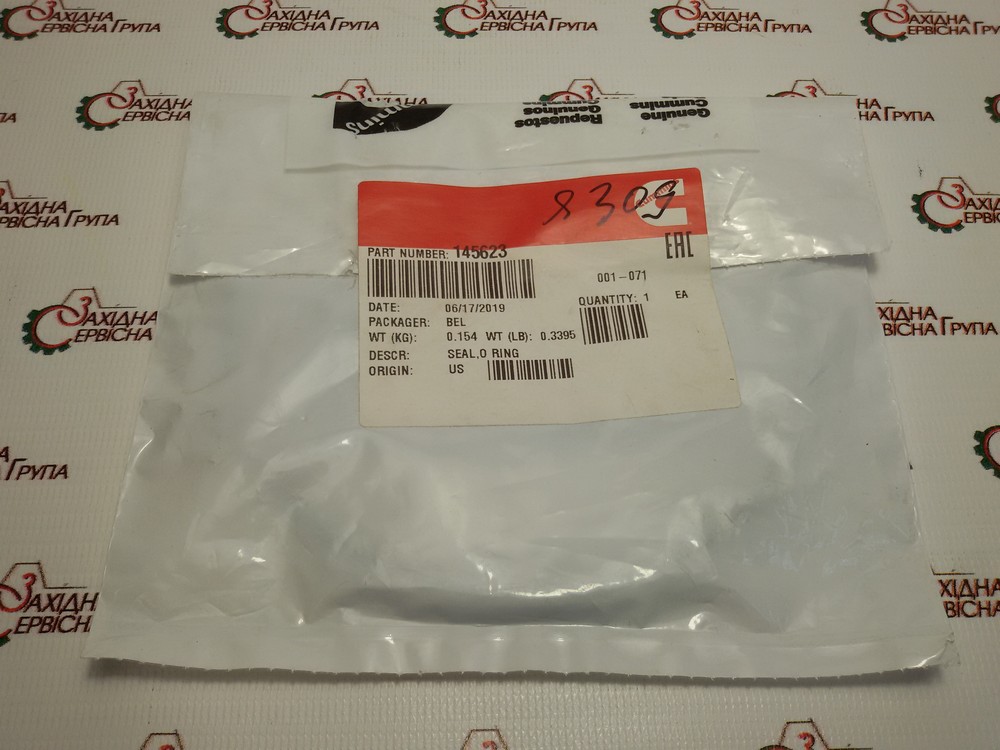

Ущільнююче кільце водяного насоса Cummins KTA19, 145623.

Ущільнювальне кільце водяного насоса

Застосування: двигун Cummins KTA19, БелАЗ 7547-7555

Оригінальний номер: 145623

Виробник Cummins made in USA.

Seal, O Ring  Cummins KTA19

Насос водяной Cummins KTA19 3098963 3086034
3017471 Pump, Water Mtg 1
1       S 103 A Screw, Hexagon Head Cap 1 5/8 – 11 X 2 in.
2       S 205 Nut, Regular Hexagon 1 3/8 – 24 UNF.
3       S 603 Washer, Lock 1 5/8 in.
4       S 604 Washer, Lock 1 3/8 in.
5       S 658 Washer, Plain 1 5/8 in.
6       3012476 Screw, Captive Washer Cap 3 3/8 – 16 X 3 in.
7       3202007 Shaft, Water Pump 1
8       3202283 Gasket, Water Pump 2
3098963 Pump, Water TLA 1
9       145623 Seal, O Ring 1
10       3005594 Washer, Plain 2 3/8″
11       3010596 Screw, Captive Washer Cap 1 3/8 – 16 x 1 1/4 in.
12       3012472 Screw, Captive Washer Cap 1 3/8 – 16 X 1 1/2 in.
13       3012474 Screw, Captive Washer Cap 1 3/8 – 16 x 2 in.
14       3036096 Brace, Water Pump 1
      3086169 Connection, Water Inlet 1
15           S 114 Screw, Hexagon Head Cap 1 1/4 – 20 X 3/4 in.
16           S 600 Washer, Lock 1 1/4 in.
17           S 631 Washer, Plain 1 1/4 in.
18           205363 Washer, Spring 1
19           206963 Adapter, Filter Head 1
20           3010536 Shaft, Shutoff Valve 1
          3037536 Plug, Threaded 1 9/16 – 18 UNF
21               3037537 Seal, O Ring 1
22               3040813 Plug, Threaded 1 9/16 – 18 UNF
          3081950 Union, Male 1 1 – 14 x 3/4 – 16
21               3037537 Seal, O Ring 1
23               3085824 Union, Male 1 Service as 3081950
24               3922794 Seal, O Ring 1
          3081951 Elbow, Male Union 1 11/16 – 16 x 9/16 – 18
21               3037537 Seal, O Ring 1
24               3922794 Seal, O Ring 1
25               3085821 Elbow, Male Union 1
26           3086035 Connection, Water Inlet 1
27           3086149 Tube, Water Transfer 1
          3202101 Plug, Threaded 1 1 1/16 – 12 UN
28               3046943 Seal, O Ring 1
29               3050897 Plug, Threaded 1
30           3818885 Seal, O Ring 1
      4081095 Pump, Water 1 Serviced as 3018785
31           S 962 E Draincock 1
32           S 16002 Bearing, Ball 1
33           S 16069 Bearing, Ball 1
34           70183 Ring, Retaining 1
35           205243 Impeller, Water Pump 1
36           205258 Ring, Retaining 1
37           206948 Seal, Oil 1 Serviced as 3804573
38           3042827 Shaft, Water Pump 1 Serviced as 3804573
39           3609826 Seal, Water Pump 1
40           4081087 Body, Water Pump 1
41 3200968 Plug, Threaded 1 7/8 – 14 UNF
42 3410054 Shaft, Water Pump TLA 1
