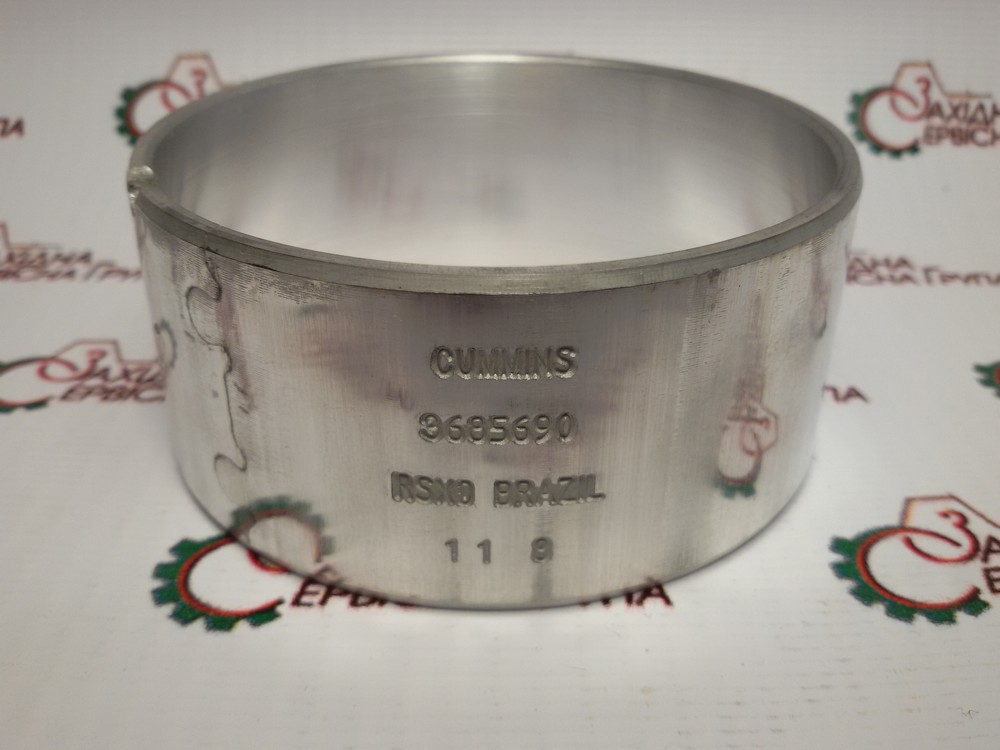

Втулка розподільчого вала клапанів двигуна Cummins ISX15, QSX15, 3685690, 3680579, 4026423.
Втулка розпредвала клапанів
Застосування: двигун Cummins ISX15, QSX15, CASE STX/STEIGER/450-535, New Holland TJ/T9000, BUHLER VERSATILE 435/485/535, WIRTGEN W200/WR240/WR250
Оригінальний номер: 3685690, 3680579, 4026423
Виробник Cummins made in Brazil.
Bushing Cummins ISX15, QSX15
| 1 | 3678506 | Screw, Fracture Resistant | 22 | |
| 2 | 3678804 | Screw, Hex Flange Head Cap | 4 | |
| 3678611 | Plug, Threaded | 3 | ||
| 3 | 3678605/3678611 | Plug, Threaded | 1 | |
| 4 | 3678606 | Seal, O Ring | 1 | M27 x 2.00 |
| 5 | 3901846 | Dowel, Pin | 2 | |
| 6 | 4059350/4926316/3685834/4299098 | Gasket, Cylinder Head | 1 | |
| 3678838/3678845 | Plug, Threaded | 1 | M33 x 2.00 | |
| 9 | 3678845 | Plug, Threaded | 1 | |
| 10 | 3678846 | Seal, O Ring | 1 | |
| 3683002/3682863/3683986/4962732/4331387//4101421// 3683003 | Head, Cylinder | 1 | ||
| 7 | 3680883/3679978 | Collet, Valve | 48 | |
| 8 | 3680884/3679979 | Retainer, Valve Spring | 24 | |
| 3679354 | Plug, Threaded | 6 | ||
| 11 | 3678603 | Seal, O Ring | 1 | |
| 12 | 3679122 | Seal, O Ring | 1 | |
| 13 | 3679123 | Plug, Threaded | 1 | |
| 14 | 3679551/3681001 | Spring, Valve | 24 | |
| 16 | 3680318 | Guide, Valve Spring | 24 | |
| 3683003 | Head, Cylinder | 1 | ||
| 15 | 3679659/3683349 | Insert, Valve | 12 | Exhaust |
| 17 | 3015865/3000104 | Plug, Expansion | 7 | |
| 18 | 3412352/2882041/3680873 | Sleeve, Injector | 6 | Inj. Sleeves Not Available |
| 19 | 3678536/3687210 | Seal, Rectangular Ring | 6 | |
| 20 | 3680580/4319031 | Bushing | 4 | |
| 21 | 3680581/4319032 | Bushing | 3 | |
| 22 | 3813247 | Plug, Expansion | 21 | |
| 23 | 4026423/3685690/3680579 | Bushing | 7 | |
| 24 | 4026657/3680867/3680731 | Guide, Valve Stem | 24 | |
| 25 | 4026791/4312008 | Seal, Valve Stem | 24 | Exhaust |
| 26 | 4101421 | Head, Cylinder | 1 | |
| 28 | 4059215/3104445/3681071/3679975 | Insert, Valve | 12 | Intake |
| 29 | 4059326/4965868/4059216 | Valve, Intake | 12 | |
| 30 | 4101454/4059327/3680759 | Valve, Exhaust | 12 | |
| 27 | 3911678 | Dowel, Ring | 2 | |
| 31 | 3901846 | Dowel, Pin | 2 |
