Ціни на запчастини не вказані на сайті. Для уточнення ціни сформуйте та відправте замовлення або зателефонуйте менеджеру.

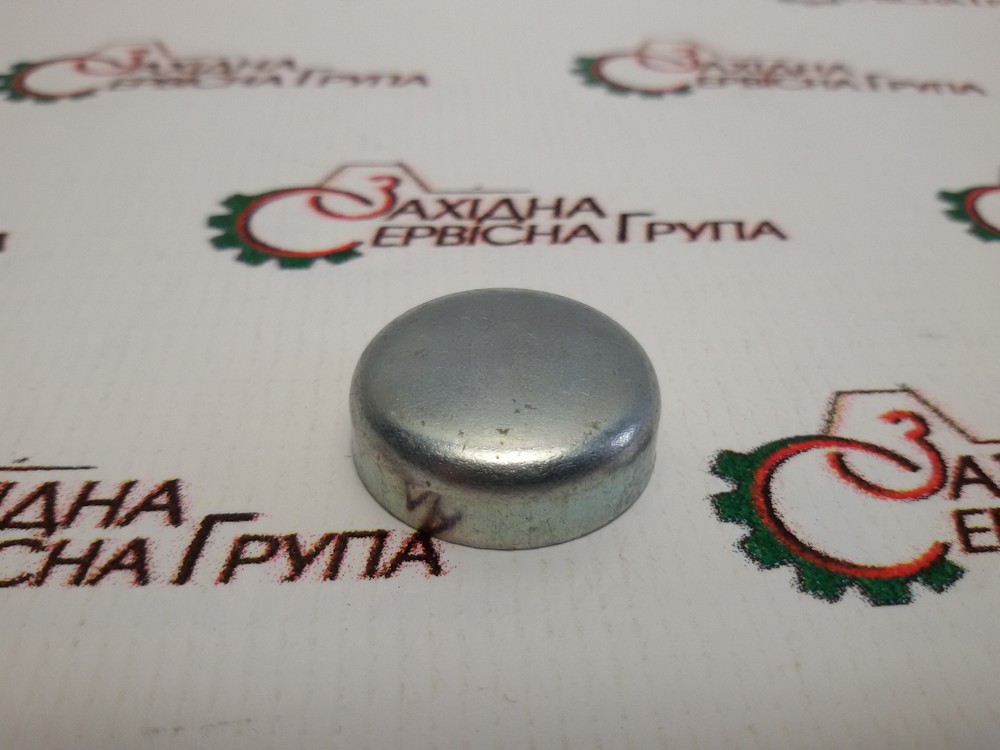

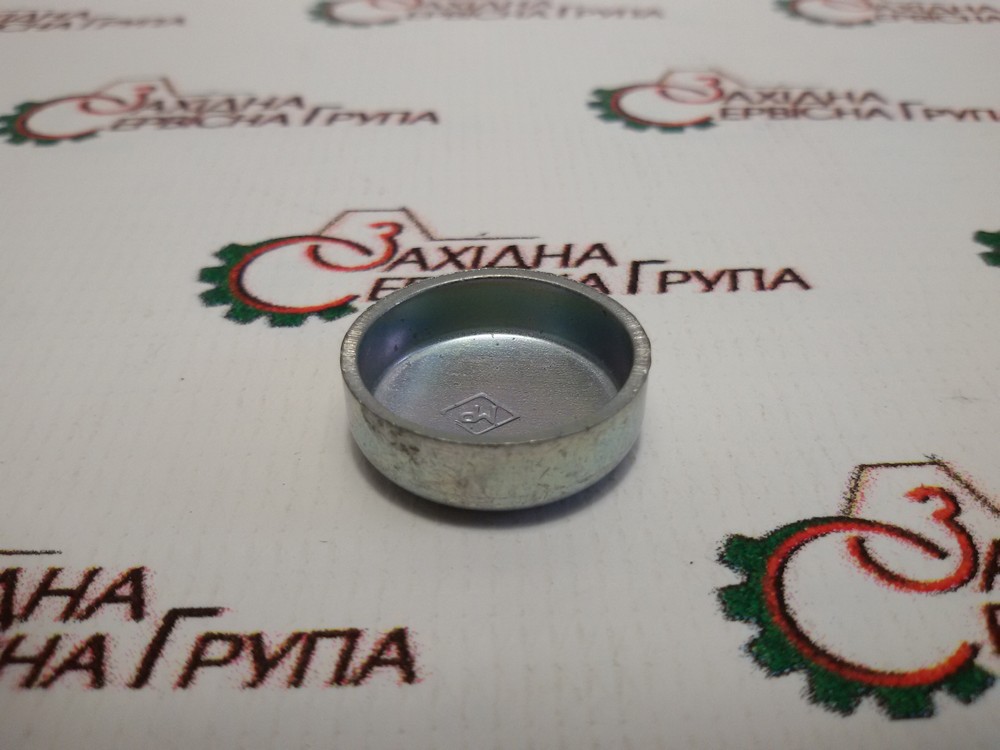

Заглушка компенсаційна блоку циліндрів

Застосування: двигун Cummins ISF, ISB, ISL, CASE 7200/8900/MX/Magmum/1600/2100/2300, New Holland TG/T8000, HYUNDAI HL770/R360, BUHLER VERSATILE 320/370

Оригінальний номер: 3900956

Виробник Cummins made in USA.

Plug, Expansion

Заглушка блока цилиндров Cummins ISB 3900958 3905369

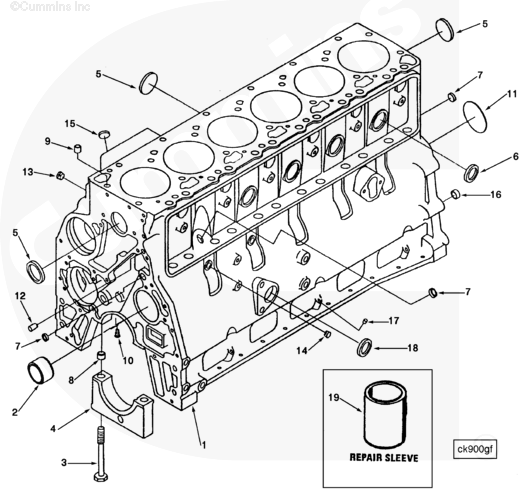

Ref No Part Number Part Name Required Remarks
BP9787 Cylinder Block NOTE: Replaces BP9721.
B series engine block.
Cylinders: 6 Aspiration:
Turbocharged (only) or
Turbocharged and Sea Water
Aftercooled Turbocharger
mounting loc. : Low/Rear
Expansion plug 3007635
may be used in Brazil
applications in place 3914035
Cylinder block 3903797 may be
substituted for cylinder
block 3916255.
3905810 Block, Service 1
1 3901204 Block, Cylinder 1
3903797 Block, Cylinder 1
2 3901306 Bushing 1
3 3904217 Screw, Hexagon Head Cap 14 M14 X 2.00 X 119
4 3900967 Cap, Main Bearing 7
5 3900965 Plug, Expansion 6
6 3007635 Plug, Expansion 4
7 3900956 Plug, Expansion 3 17.73 mm
8 3900068 Dowel, Ring 14 M18 X 10
3905813 Kit, Block Hardware 1
9 3902343 Dowel, Ring 2 M16 x 10
10 3901020 Nozzle, Piston Cooling 6
11 3900687 Plug, Expansion 1
12 3900257 Dowel, Pin 2 M10 X 16
13 3008468 Plug, Pipe 1 1/2 NPT
14 3906619 Plug, Pipe 2 1/8 NPT
15 3027646 Plug, Expansion 1 Not used on turbocharged
engines
16 3900068 Dowel, Ring 2 M18 X 10
17 3900955 Plug, Expansion 2 Structured in LG option
18 3900958 Plug, Expansion 1 Structured in OB option; Not
used with side oil fill.
$SERVICE PARTS
2 3904369 Bushing A/R Oversize bushing for No. 1
bore
2 3903242 Bushing A/R Oversize bushing for No. 2-5
bore
4 3900967 Cap, Main Bearing 7
19 3904166 Sleeve, Salvage A/R Standard Bore. Use as
required.
